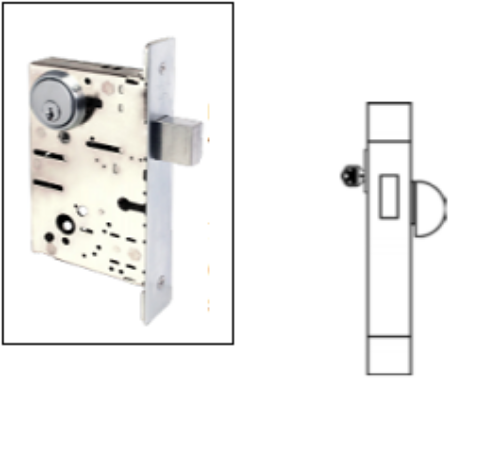

Cal Royal SC8460 US26D Heavy Duty Grade 1, Cylinder and Thumbturn Full Mortise Deadbolt Lockset - Satin Chrome

Cal Royal SC8460 US26D Heavy Duty Grade 1, Cylinder and Thumbturn Full*Mortise Deadbolt Lockset - Satin Chrome*

Function:  ANSI  F17 - Cylinder and Thumbturn -Deadbolt thrown or retracted by key outside or thumbturn inside.

Lock Case:4" x 6 1/32" x 1 7/32" (102 mm x 153 mm x 31.3 mm)

Face plate:1 7/32" x 8" x 1/8" (31.3 mm x 203 mm x 3.175 mm)

Strike:1 7/8" x 4 27/32" (48 mm x 123 mm)

Backset:2 3/4" ( 70 mm )

Door Range:1 3/4" ( 44 mm ), available to 2 1/4" (57 mm ). Specify thickness if other than 1 3/4".

Deadbolt:1" ( 25 mm ) throw, stainless steel, can withstand cutting or sawing

Cylinder:1 1/4" Mortise cylinder Schlage "C" (standard)

Heavy Gauge Steel Lock Case

Brass Deadbolt with Hardened Steel Inserts 1" Throw

Satin Chrome Finish

ANSI A156.13

Exceeds 1,000,000 cycles

Cylinder length is 1 1/8" (under shoulder including cam)

With Schlage cam (L583-2540)

Warranty:Lifetime warranty

Model:Cal Royal SC8460
