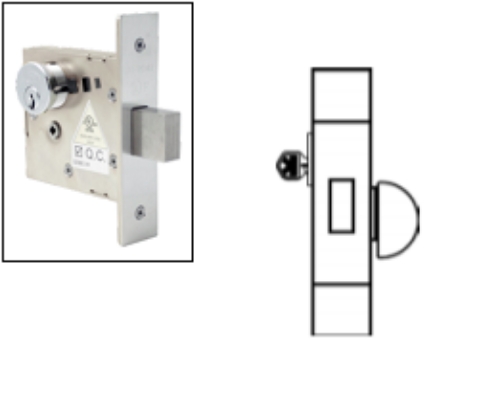

Cal Royal SM4608 Heavy Duty Grade 1, Cylinder and Thumbturn Small Lock Case Mortise Deadbolt Lockset

Cal Royal SM4608*Heavy Duty Grade 1, Cylinder and ThumbturnSmall Lock Case Mortise Deadbolt Lockset*

Function:  ANSI  E06071 - Cylinder and Thumbturn -Deadbolt thrown or retracted by key outside or thumbturn inside.

Lock Case:3 15/16" x 3 5/8" x 1" (100 mm x 92 mm x 25 mm)

Faceplate:1 1/4" x 5 19/32" x 7/32" (32 mm x 142 mm x 6 mm)

Strike:1 1/8" x 3 1/2" (29 mm x 89 mm)

Backset:2 3/4" ( 70 mm )

Door Range:1 3/4" ( 44 mm ), available to 2 1/4" (57 mm ). Specify thickness if other than 1 3/4".

Deadbolt:1" ( 25 mm ) throw, stainless steel, can withstand cutting or sawing

Cylinder:1 1/8" Mortise cylinder Schlage "C" (standard). Otherwise specify

Heavy Gauge Steel Lock Case

Brass Deadbolt with Hardened Steel Inserts 1" Throw

Architectural Finishes including stainless steel available Mortise Cylinder

Cylinder length is 1 1/8" (under shoulder including cam)

With clover leaf cam

Warranty:Lifetime warranty

Model:Cal Royal SM4608
