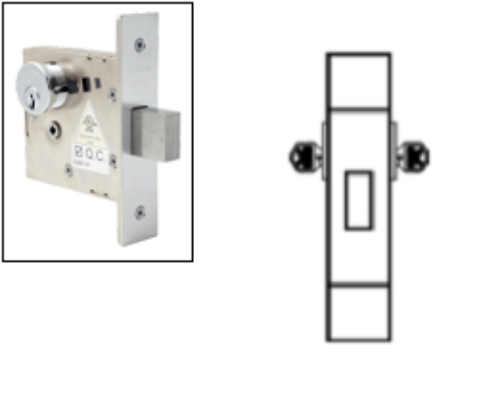

Cal Royal SM4628 Heavy Duty Grade 1, Double Cylinder Small Lock Case Mortise Deadbolt Lockset

Cal Royal SM4628*Heavy Duty Grade 1, Double Cylinder*Small Lock Case Mortise Deadbolt Lockset

Function:  ANSI  E06061 - Double Cylinder- Deadbolt operated by key on either side

Lock Case:3 15/16" x 3 5/8" x 1" (100 mm x 92 mm x 25 mm)

Faceplate:1 1/4" x 5 19/32" x 7/32" (32 mm x 142 mm x 6 mm)

Strike:1 1/8" x 3 1/2" (29 mm x 89 mm)

Backset:2 3/4" ( 70 mm )

Door Range:1 3/4" ( 44 mm ), available to 2 1/4" (57 mm ). Specify thickness if other than 1 3/4".

Deadbolt:1" ( 25 mm ) throw, stainless steel, can withstand cutting or sawing

Cylinder:1 1/8" Mortise cylinder Schlage "C" (standard). Otherwise specify

Heavy Gauge Steel Lock Case

Brass Deadbolt with Hardened Steel Inserts 1" Throw

Architectural Finishes including stainless steel available Mortise Cylinder

Cylinder length is 1 1/8" (under shoulder including cam)

With clover leaf cam

Warranty:Lifetime warranty

Model:Cal Royal SM4628
