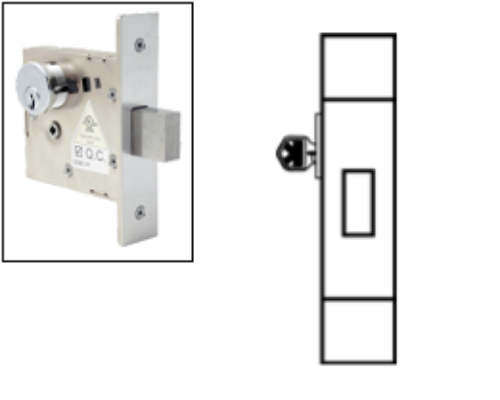

Cal Royal SM4648 Heavy Duty Grade 1, Cylinder Lock Small Lock Case Mortise Deadbolt Lockset

Cal Royal SM4648*Heavy Duty Grade 1, Cylinder Lock*Small Lock Case Mortise Deadbolt Lockset

Function:  ANSI*- E06081 - Cylinder Lock -* Deadbolt thrown or retracted by key from outside only. No trim on opposite side.

Lock Case:3 15/16" x 3 5/8" x 1" (100 mm x 92 mm x 25 mm)

Faceplate:1 1/4" x 5 19/32" x 7/32" (32 mm x 142 mm x 6 mm)

Strike:1 1/8" x 3 1/2" (29 mm x 89 mm)

Backset:2 3/4" ( 70 mm )

Door Range:1 3/4" ( 44 mm ), available to 2 1/4" (57 mm ). Specify thickness if other than 1 3/4".

Deadbolt:1" ( 25 mm ) throw, stainless steel, can withstand cutting or sawing

Cylinder:1 1/8" Mortise cylinder Schlage "C" (standard). Otherwise specify

Heavy Gauge Steel Lock Case

Brass Deadbolt with Hardened Steel Inserts 1" Throw

Architectural Finishes including stainless steel available Mortise Cylinder

Cylinder length is 1 1/8" (under shoulder including cam)

With clover leaf cam

Warranty:Lifetime warranty

Model:Cal Royal SM4648, SM4648 Heavy Duty Grate 1 Cylinder Lock Small Lock Case Mortise Deadbolt Lockset
