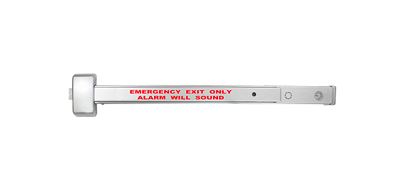

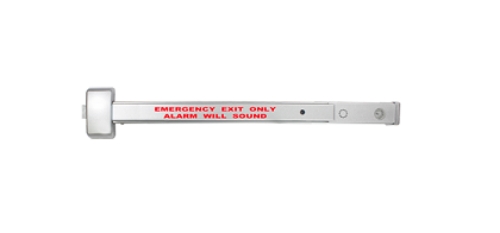

Cal-Royal NALRM2200EO / FNALRM2200EO Alarmed Panic Device

Cal-Royal NALRM2200EO / FNALRM2200EO Alarmed Panic Device

Alarm Features: Alarm units have an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated.

The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. Jumper cable is provided to switch to continuous alarm.

The key switch to turn the alarm off is a standard 1-1/4" cylinder with "C" keyway.

The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal.

Alarmed units are supplied with two switches. One switch monitors the push rail and the other switch monitors the latchbolt for full proof security.

Unit includes "emergency exit only. Alarm will sound" decal for application on door or unit.

Door Thickness: 1-3/4" thick.

Stile:4-1/2" minimum stile width required for single or double door application using standard 239 strike and pull or lever trims.

Chassis - Nonferrous alloy (Panic Grade), steel (Fire Grade)

Cover - Nonferrous alloy. Covers stock hollow metal doors with 161 cutout.

Mounting - Furnished standard with wood and machine screws. Available with thru bolts on request. Thru bolts are included and standard packaging on fire rated devices.

End Cap - Steel construction.

Hand - Non handed, center hub.

Latch Bolt - Stainless steel 3/4" throw.

Spring - Stainless steel throughout.

ANSI Standard - A156.3, Grade 1.

Rail Assembly - Heavy gauge steel, painted.

Strike - 239 packed standard

Dogging Feature - Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.

UL and ULC Listed - 2200 Series for panic. F2200 Series for fire exit hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.

Dimensions:

Touchbar height to finished floor: 41" (1041mm) at center

Touchbar projection: Neutral 2- 1/2" (64mm), Depressed 1-3/4" (45mm)

NALRMA2200EO36 and FNALRM2200EO36Actual Length: 32" -Max Cut Down:6" Door size:30" to 36" door width

NALRMA2220EO48 and FNALRM2220EO48 Actual Length:44" -Max Cut Down:12" Door size:36" to 48" door width

Model: Cal Royal, Cal-Royal, NALRMA2200EO36, FNALRM2200EO36, NALRMA2220EO48, FNALRM2220EO48. AL, DURO, GO, Aluminum, Duranodic, Gold
