Cal-Royal SG40-SQ Grade 2, Dummy Lock

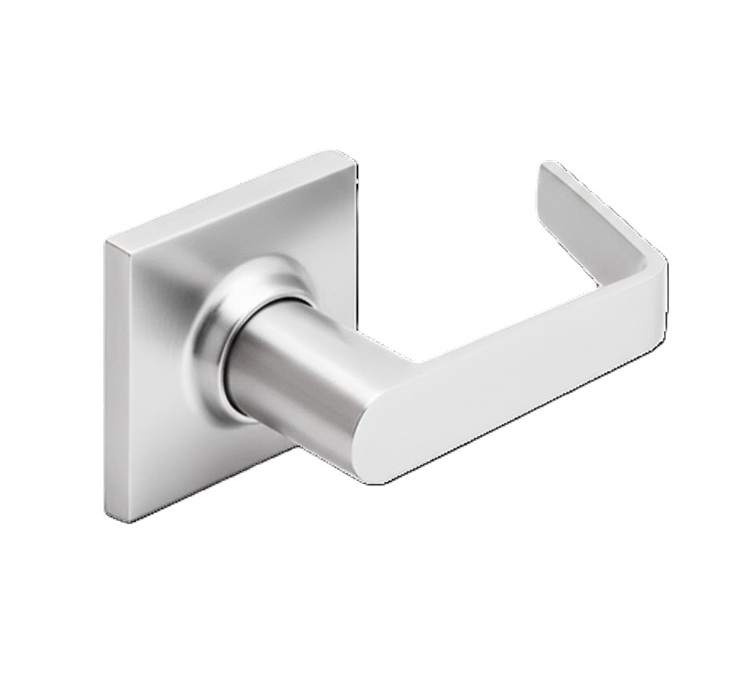

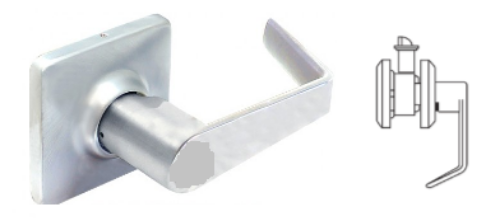

Cal-Royal SG40-SQ Grade 2, Dummy Lock (Single)

Single dummy trim for one side of door. Pull only

Door Range- 1-3/8" to 1-3/4" thickness doors.

Model: Cal Royal SG40-SQ, SG40-SQ26D, SG40-SQ26, SG40-SQ10B, SG40-SQ3, SG40-SQ15,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.

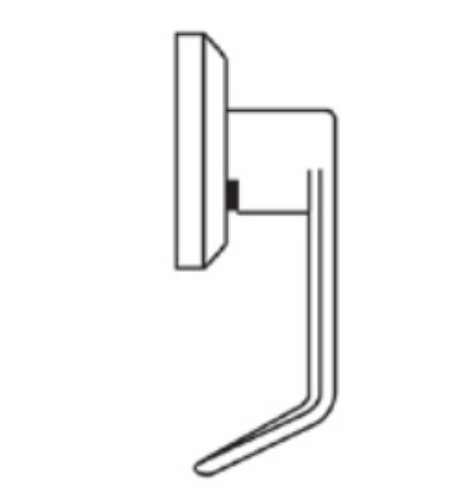

The lever features a 3/8" return and projection of 2-3/8" from the face of door.
