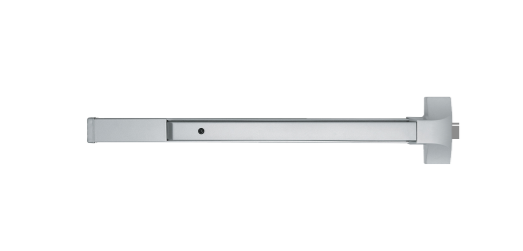

Cal-Royal T5000EO / TF5000EO Rim Push Bar Exit Panic - Made In Taiwan

Cal-Royal T5000EO / TF5000EO Rim Push Bar Exit Panic Device - Made In Taiwan

For Doors:1 3/4" thick standard 3 3/4" minimum stile width required for single or double door application using standard 938 strike and pull or lever trims

Chassis:Steel (Panic Grade), steel (Fire Grade)

Cover:Covers stock hollow metal doors with 161-cutout

Mounting:Furnished standard with wood and machine screws. Available with thru-bolts on request. Thru-bolts are standard packaging on fire rated devices

End Cap:Steel construction

Hand:Non-handed, center hub

Latch Bolt:Stainless steel 3/4" throw

Spring:Steel throughout

ANSI Standard:A156.3, Grade 2

Rail Assembly:Heavy gauge steel, painted

Strike:938 packed standard (See strike page)

Dogging Feature:Allen-type key furnished standard on non-fire labeled devices

Mullion:Available

UL and ULC Listed: T5000 Series for panic. TF5000 Series for fire exit hardware for all types of 3' x 7' single doors and 6' x 7' double doors for up to 3 hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

T5500EO 36" - Actual Lenght: 32"  - for Door Size: 30 to 36 door width

T5500EO 48"  - Actual Lenght: 39"  - for Door Size: 31 to 48 door width

Model: Cal Royal, Cal-Royal, T5000EO36, T5000EO48, TF5000EO36, TF5000EO48. ALUM, Aluminum, US32D, Satin Stainless Steel
