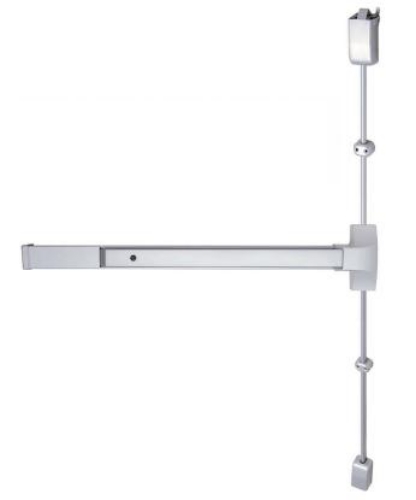

Cal-Royal T5000V / TF5000V Surface Vertical Rod Panic Bar Exit Device - Made In Taiwan

Cal-Royal T5000V / TF5000V Surface Vertical Rod Panic Bar Exit Device - Made In Taiwan

Door Thickness: 1-3/4" thick standard.

Stile:3-3/4" minimum stile width required for single door application. 3-1/2" minimum stile width required for double door  application.  Lever and not trims available.

Chassis - Steel (Panic Grade), steel (Fire Grade)

Cover - Covers stock hollow metal doors with 161 cutout.

Mounting - Furnished standard with wood and machine screws. Available with thru bolts on request. Thru bolts are included and standard packaging on fire rated devices.

End Cap - Steel construction.

Hand - Non handed, center hub.

Latch Bolt, Spring - Stainless steel

ANSI Standard - A156.3, Grade 2.

Rail Assembly - Heavy gauge steel, painted.

Dogging Feature - Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.

5000 Series for panic.  F5000 Series for fire exit hardware for all types of 3x 7single doors  and 6x 7double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.

T5000V 36"X84" - Actual Lenght: 32"  - for Door Size: 30to 36door width

Model: Cal Royal, Cal-Royal, T5000V3684, TF5000V3684, ALUM, Aluminum, US32D, Satin Stainless Steel
