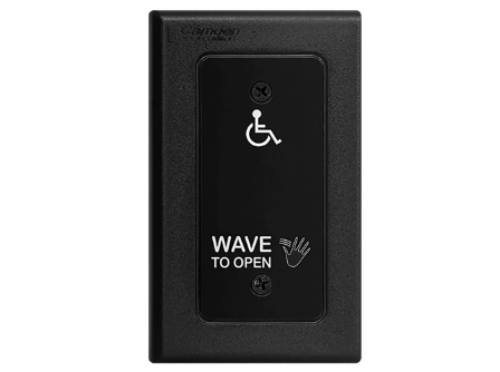

Camden CM-324/42 SureWave Series Touchless Switch, 1" to 30" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Black Finish

Camden CM-324/42 SureWave Series Touchless Switch, 1" to 30" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Black Finish

Product Details

Camden CM-324/42 SureWave Series Touchless Switch, 1" to 30" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Black Finish

Model: CM-324 - Wired Touchless Switch, economical, 1 Relay, no inputs, wireless or light ring.

CM-324 Series (original) single relay wired hands-free switches features an operating range of 1-30", adjustable time delay of 1-5 seconds, and provides superior performance in all ambient lighting conditions.

CM-330/324/325 FEATURES:

Wired, wireless and hybrid (wirless/wired) models.
Indoor/outdoor use. -4 F to +153 F (-20 C to +85 C) operating temp. Gasket included in package.
Battery powered wireless models offer 2 year battery life using standard 'AA' alkaline batteries.

- Line powered models offer 12/24V AC/DC operation.

1 and 2 relay wired models, SPDT, Form 'C'.
Narrow (jamb), single and and double gang faceplates.
Polycarbonate (black) and stainless steel faceplates.
Advanced active infra-red technology with fast response.
Heavy duty 3 or 5 Amp rated relay.
Adjustable operating range up to 28", refer to model specification.
Adjustable time delay, refer to model specifcation.
Selectable fail safe/fail secure operation.

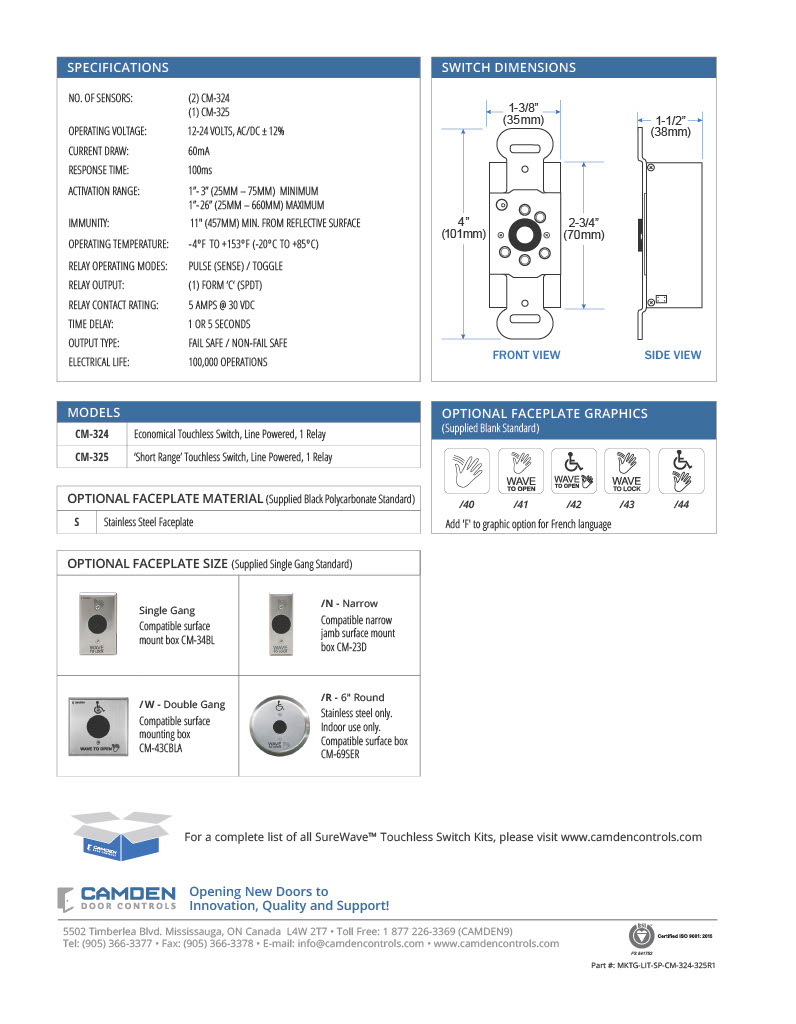

SPECIFICATIONS:

FACEPLATE SIZE: Single Gang Compatible surface mount box CM-34BL.

FACEPLATE MATERIAL:Supplied Black Polycarbonate Standard.

NO. OF SENSORS: (2) CM-324. (1) CM-325.

OPERATING VOLTAGE:12-24 VOLTS, AC/DC - 12%.

CURRENT DRAW:60mA.

RESPONSE TIME:100ms.

ACTIVATION RANGE: 1"- 3" (25MM - 75MM) MINIMUM. 1"- 26" (25MM - 660MM) MAXIMUM.

IMMUNITY:11" (457MM) MIN. FROM REFLECTIVE SURFACE.

OPERATING TEMPERATURE:-4 F TO +153 F (-20 C TO +85 C).

RELAY OPERATING MODES:PULSE (SENSE) / TOGGLE.

RELAY OUTPUT:(1) FORM 'C' (SPDT).

RELAY CONTACT RATING:5 AMPS @ 30 VDC.

TIME DELAY:1 OR 5 SECONDS.

OUTPUT TYPE:FAIL SAFE / NON-FAIL SAFE.

ELECTRICAL LIFE:100,000 OPERATIONS.

Camden CM-324/42 Camden CM32442 CamdenCM32442, CM-324/42, CM32442, CM-324/42 Camden, CM32442Camden, CM32442 Camden, CM-324/42, CM32442,

Camden CM-324/42 SureWave Series Touchless Switch, 1" to 30" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Black Finish

Name: Camden CM-324/42 SureWave Series Touchless Switch, 1" to 30" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Black Finish
SKU: CM32442
Price: 205.14 USD
Availability: InStock

SKU: CM32442

In Stock

Chat

$205.14

$220.00

You saved $14.86

About this item

324 APPLICATION 1 Relay, Line Powered- Ideal for economical door activation where a door or locked status indicator is not required.

Resources

https://www.camdencontrols.com/category/Door_Activation_Devices/Hands_Free_Switches/products/SureWave_Touchless_Switches

Camden CM-324/42 SureWave Series Touchless Switch, 1" to 30" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Black Finish

Model: CM-324 - Wired Touchless Switch, economical, 1 Relay, no inputs, wireless or light ring.

CM-330/324/325 FEATURES:

Wired, wireless and hybrid (wirless/wired) models.
Indoor/outdoor use. -4 F to +153 F (-20 C to +85 C) operating temp. Gasket included in package.
Battery powered wireless models offer 2 year battery life using standard 'AA' alkaline batteries.

- Line powered models offer 12/24V AC/DC operation.

1 and 2 relay wired models, SPDT, Form 'C'.
Narrow (jamb), single and and double gang faceplates.
Polycarbonate (black) and stainless steel faceplates.
Advanced active infra-red technology with fast response.
Heavy duty 3 or 5 Amp rated relay.
Adjustable operating range up to 28", refer to model specification.
Adjustable time delay, refer to model specifcation.
Selectable fail safe/fail secure operation.

SPECIFICATIONS:

FACEPLATE SIZE: Single Gang Compatible surface mount box CM-34BL.

FACEPLATE MATERIAL:Supplied Black Polycarbonate Standard.

NO. OF SENSORS: (2) CM-324. (1) CM-325.

OPERATING VOLTAGE:12-24 VOLTS, AC/DC - 12%.

CURRENT DRAW:60mA.

RESPONSE TIME:100ms.

ACTIVATION RANGE: 1"- 3" (25MM - 75MM) MINIMUM. 1"- 26" (25MM - 660MM) MAXIMUM.

IMMUNITY:11" (457MM) MIN. FROM REFLECTIVE SURFACE.

OPERATING TEMPERATURE:-4 F TO +153 F (-20 C TO +85 C).

RELAY OPERATING MODES:PULSE (SENSE) / TOGGLE.

RELAY OUTPUT:(1) FORM 'C' (SPDT).

RELAY CONTACT RATING:5 AMPS @ 30 VDC.

TIME DELAY:1 OR 5 SECONDS.

OUTPUT TYPE:FAIL SAFE / NON-FAIL SAFE.

ELECTRICAL LIFE:100,000 OPERATIONS.

Camden CM-324/42 Camden CM32442 CamdenCM32442, CM-324/42, CM32442, CM-324/42 Camden, CM32442Camden, CM32442 Camden, CM-324/42, CM32442,

Camden CM-324/42 SureWave Series Touchless Switch, 1" to 30" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Black Finish

Product code: CM32442

In Stock

$220.00

$205.14

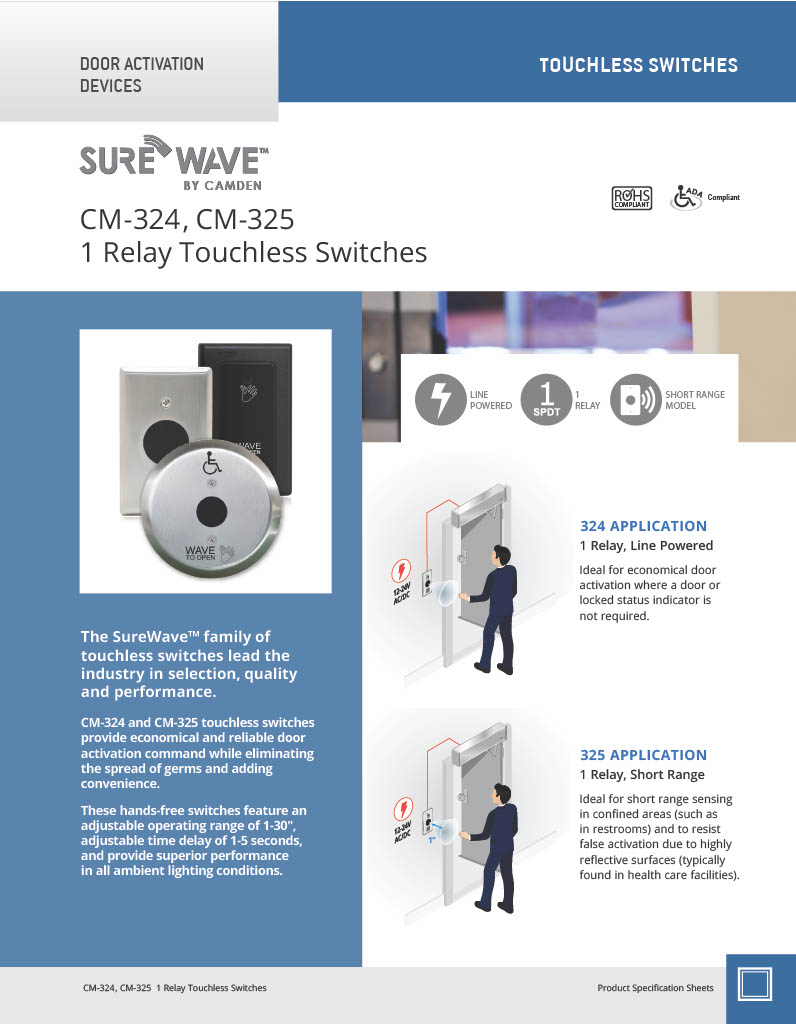

The SureWave family of touchless switches lead the industry in selection, quality and performance.

CM-324 and CM-325 touchless switches provide economical and reliable door activation command while eliminating the spread of germs and adding convenience.

These hands-free switches feature an adjustable operating range of 1-30", adjustable time delay of 1-5 seconds, and provide superior performance in all ambient lighting conditions.
