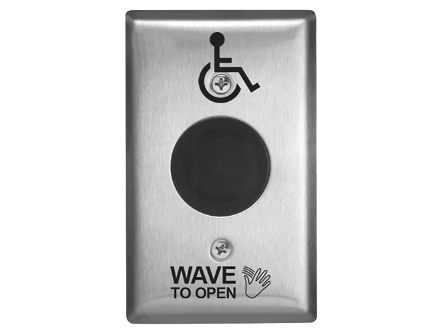

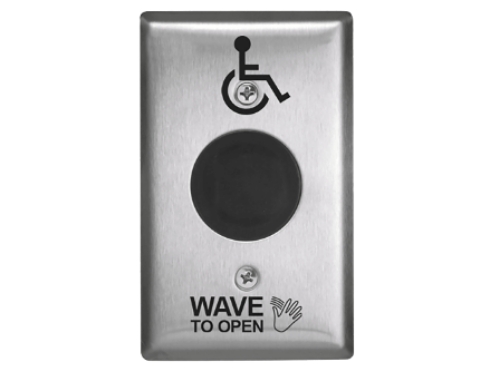

Camden CM-325/42S SureWave CM Touchless Switch, 2" to 18" Range, 1 Relay, Single Gang Stainless Steel Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Stainless Steel Finish

Camden CM-325/42S SureWave Touchless Switch, 2" to 18" Range, 1 Relay, Single Gang Stainless Steel Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Stainless Steel Finish

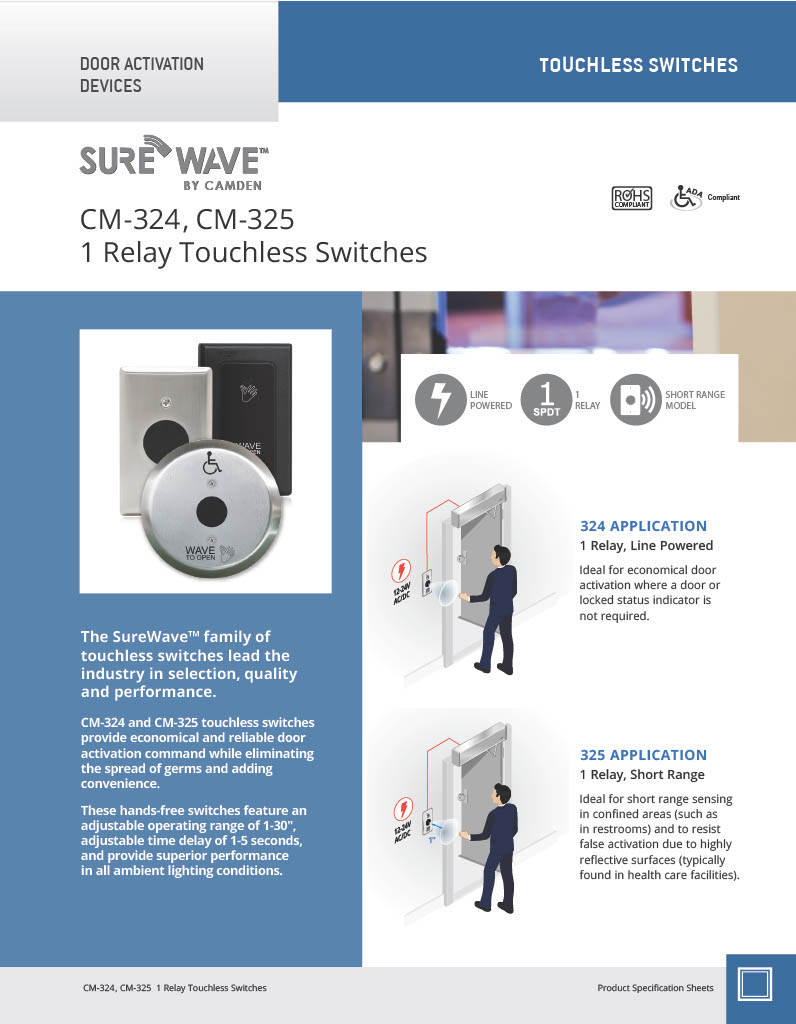

CM-324 and CM-325 touchless switches provide economical and reliable door activation command while eliminating the spread of germs and adding convenience. These hands-free switches feature an adjustable operating range of 1-30", adjustable time delay of 1-5 seconds, and provide superior performance in all ambient lighting conditions.

MODEL: CM-325- Wired 'Short Range' Touchless Switch, 1 Relay, no inputs, wireless or light ring.

CM-330/324/325 FEATURES:- Wired, wireless and hybrid (wirless/wired) models.

• Indoor/outdoor use. -4 F to +153 F (-20 C to +85 C) operating temp. Gasket included in package.

• Battery powered wireless models offer 2 year battery life using standard 'AA' alkaline batteries.

- Line powered models offer 12/24V AC/DC operation.

• 1 and 2 relay wired models, SPDT, Form 'C'.

• Narrow (jamb), single and and double gang faceplates.

• Polycarbonate (black) and stainless steel faceplates.

• Advanced active infra-red technology with fast response.

• Heavy duty 3 or 5 Amp rated relay.

• Adjustable operating range up to 28", refer to model specification.

• CM-331/332 Series: Selectable auto range (operation) mode of up to 6".

• Adjustable time delay, refer to model specifcation.

• Selectable fail safe/fail secure operation.

• CM-331/332 Series: Active output for external alrm, LED or annunciator.

• CM-332/333 Series: 'Request to exit' and external door contact inputs.

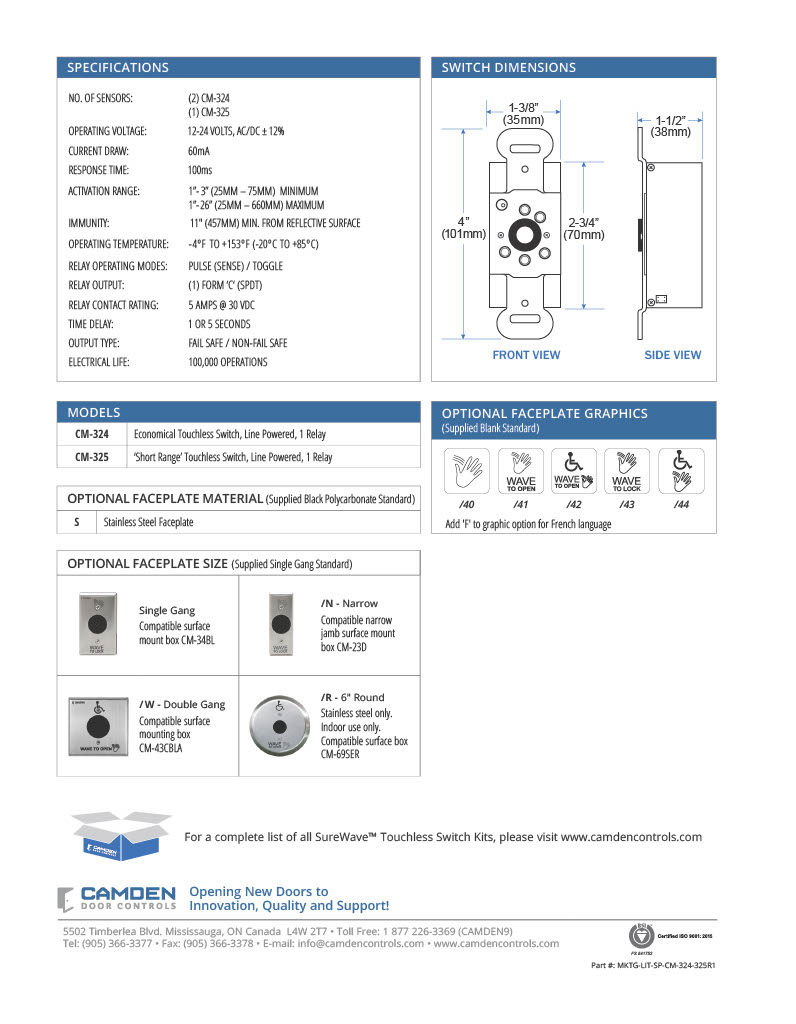

• CM-331/332 Series: Optional red/blue/green LED light ring with single gang stainless steel faceplate, indicates switch or door status. SPECIFICATIONS:

FACEPLATE SIZE:Single Gang Compatible surface mount box CM-34BL.

FACEPLATE MATERIAL:  S - Stainless Steel Faceplate.

FACEPLATE GRAPHIC:42.

NO. OF IR SENSORS:2.

OPERATING VOLTAGE:12-24 VOLTS, AC/DC - 10%.

CURRENT DRAW:40mA.

STANDARD OPERATING RANGE:1"- 28" (25.4MM - 711.2M).

AUTO OPERATION RANGE:6" TO 72" (152MM - 1820MM).

OPERATING MODES (MOTION SENSING MODES): MOMENTARY. MOMENTARY WITH ALARM. MAINTAINED (LATCHING). AUTO RANGE.

RELAY OPERATING MODES: SINGLE EVENT. TOGGLE.

RELAY OUTPUT:(1) FORM 'C' (SPDT).

RELAY CONTACT RATING:3 AMPS @ 30 VDC.

OUTPUT TYPE:FAIL SAFE OR FAIL-SECURE.

INPUTS:'REQUEST TO EXIT' EXTERNAL (DOOR CONTACT) INPUT.

CURRENT DRAW:8mA MAX.
