Product Details

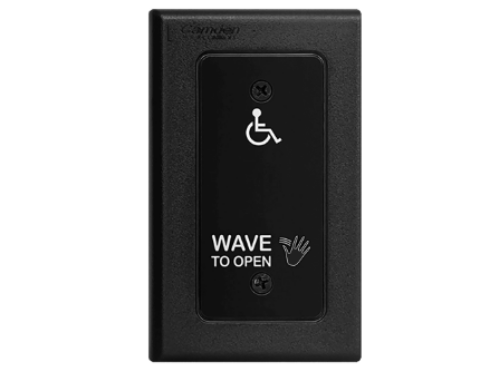

Camden CM-331/42 SureWave  Touchless Switch, 1" to 28" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text Faceplate

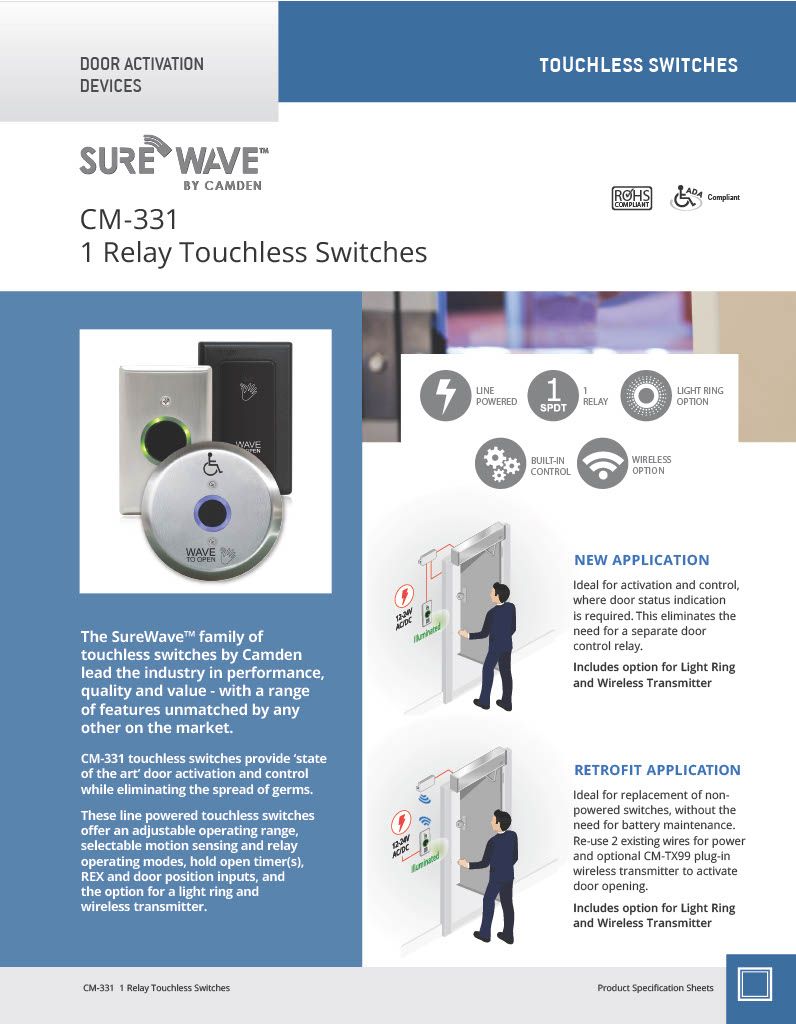

CM-330 offers an adjustable operating range, selectable motion sensing and relay operating modes, hold open timer(s), REX and door position inputs, and the option for a light ring and wireless transmitter.

MODEL: CM-331- Wired Touchless Switch, Line Powered, 1 Relay.

CM-330/324/325 FEATURES:- Wired, wireless and hybrid (wirless/wired) models.

  • Indoor/outdoor use. -4 F to +153 F (-20 C to +85 C) operating temp. Gasket included in package.

  • Battery powered wireless models offer 2 year battery life using standard 'AA' alkaline batteries.

- Line powered models offer 12/24V AC/DC operation.

  • 1 and 2 relay wired models, SPDT, Form 'C'.

  • Narrow (jamb), single and and double gang faceplates.

  • Polycarbonate (black) and stainless steel faceplates.

  • Advanced active infra-red technology with fast response.

  • Heavy duty 3 or 5 Amp rated relay.

  • Adjustable operating range up to 28", refer to model specification.

  • CM-331/332 Series: Selectable auto range (operation) mode of up to 6".

  • Adjustable time delay, refer to model specifcation.

  • Selectable fail safe/fail secure operation.

  • CM-331/332 Series: Active output for external alrm, LED or annunciator.

  • CM-332/333 Series: 'Request to exit' and external door contact inputs.

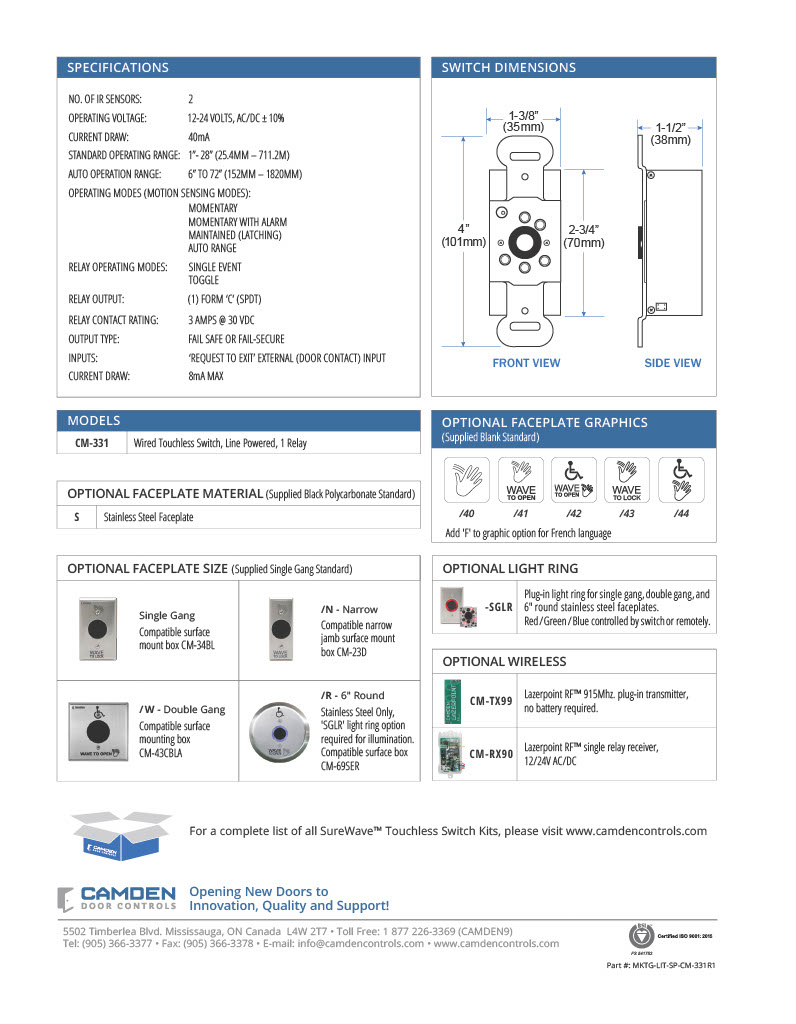

  • CM-331/332 Series: Optional red/blue/green LED light ring with single gang stainless steel faceplate, indicates switch or door status. **SPECIFICATIONS:

** FACEPLATE SIZE:Single Gang Compatible surface mount box CM-34BL.

FACEPLATE MATERIAL:  Supplied Black Polycarbonate Standard. Camden CM-331/42 SureWave Touchless Switch, 1

FACEPLATE GRAPHIC:  42.

NO. OF IR SENSORS:2.

OPERATING VOLTAGE:12-24 VOLTS, AC/DC - 10%.

CURRENT DRAW:40mA.

STANDARD OPERATING RANGE:1"- 28" (25.4MM - 711.2M).

AUTO OPERATION RANGE:6" TO 72" (152MM - 1820MM).

OPERATING MODES (MOTION SENSING MODES): MOMENTARY. MOMENTARY WITH ALARM. MAINTAINED (LATCHING). AUTO RANGE.

RELAY OPERATING MODES: SINGLE EVENT. TOGGLE.

RELAY OUTPUT:(1) FORM 'C' (SPDT).

RELAY CONTACT RATING:3 AMPS @ 30 VDC.

OUTPUT TYPE:FAIL SAFE OR FAIL-SECURE.

INPUTS:'REQUEST TO EXIT' EXTERNAL (DOOR CONTACT) INPUT.

CURRENT DRAW:8mA MAX.

CM33141, CM33141 Camden, camden CM33141, CamdenCM33141, CM33141Camden, CM33141, CM331, Camden CM331, CM331 Camden, CamdenCM331, CM331Camden
