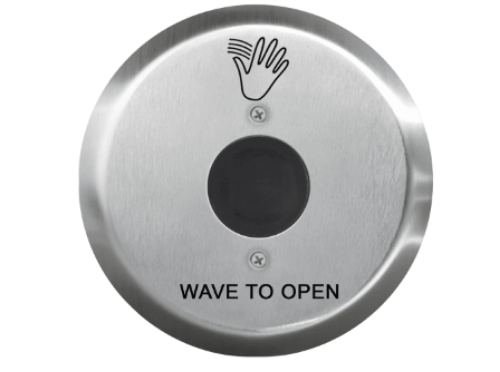

Camden CM-324/41R SureWave CM-324 Series Touchless Switch, 1" to 30" Range, 1 Relay, Round 6" Stainless Steel Hand Icon/'Wave to Open' Text Faceplate, Black Finish

Camden CM-324/41R SureWave CM-324 Series Touchless Switch, 1" to 30" Range, 1 Relay, Round 6" Stainless Steel Hand Icon/'Wave to Open' Text Faceplate, Black Finish * *Model: CM-324  - Wired Touchless Switch, economical, 1 Relay, no inputs, wireless or light ring.

CM-324 Series (original) single relay wired hands-free switches features an operating range of 1-30", adjustable time delay of 1-5 seconds, and provides superior performance in all ambient lighting conditions.

CM-330/324/325 FEATURES:

• Wired, wireless and hybrid (wirless/wired) models.

• Indoor/outdoor use. -4 F to +153 F (-20 C to +85 C) operating temp. Gasket included in package.

• Battery powered wireless models offer 2 year battery life using standard 'AA' alkaline batteries.

- Line powered models offer 12/24V AC/DC operation.

• 1 and 2 relay wired models, SPDT, Form 'C'.

• Narrow (jamb), single and and double gang faceplates.

• Polycarbonate (black) and stainless steel faceplates.

• Advanced active infra-red technology with fast response.

• Heavy duty 3 or 5 Amp rated relay.

• Adjustable operating range up to 28", refer to model specification.

• Adjustable time delay, refer to model specifcation.

• Selectable fail safe/fail secure operation.

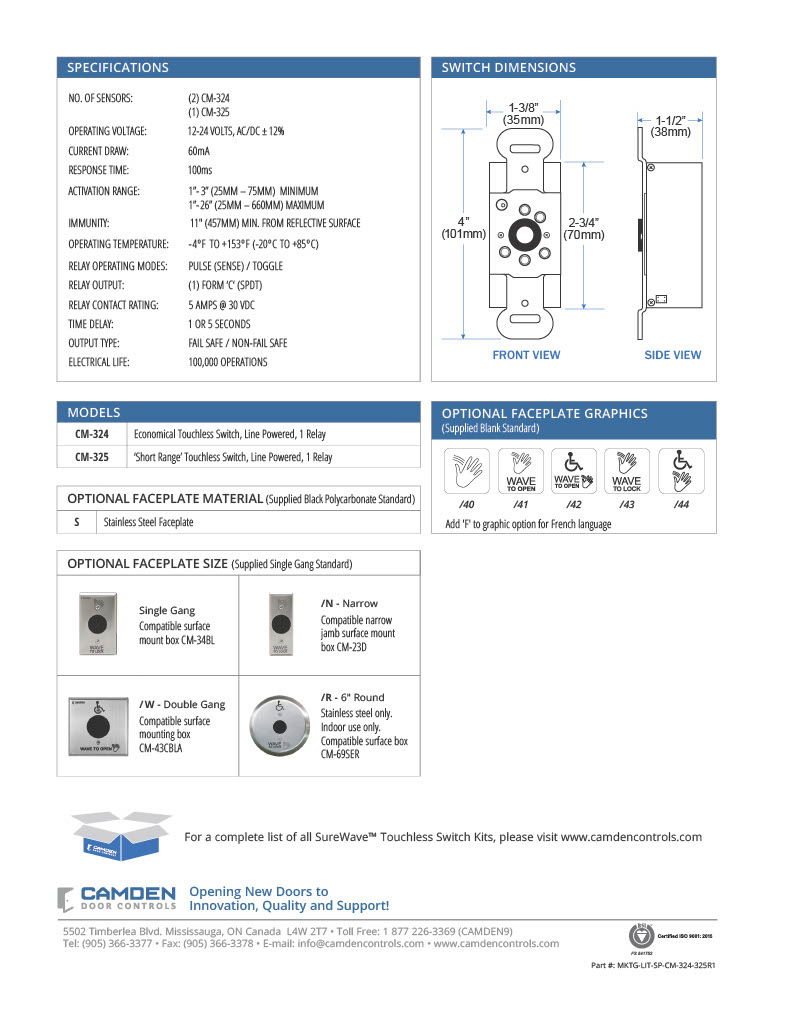

SPECIFICATIONS:

FACEPLATE SIZE:R - 6" Round Stainless steel only. Indoor use only. Compatible semi-flush escutcheon, CM-79A.

FACEPLATE MATERIAL:Stainless Steel Faceplate.

NO. OF SENSORS: (2) CM-324. (1) CM-325.

OPERATING VOLTAGE:12-24 VOLTS, AC/DC - 12%.

CURRENT DRAW:60mA.

RESPONSE TIME:100ms.

ACTIVATION RANGE: 1"- 3" (25MM - 75MM) MINIMUM. 1"- 26" (25MM - 660MM) MAXIMUM.

IMMUNITY:11" (457MM) MIN. FROM REFLECTIVE SURFACE.

OPERATING TEMPERATURE:-4 F TO +153 F (-20 C TO +85 C).

RELAY OPERATING MODES:PULSE (SENSE) / TOGGLE.

RELAY OUTPUT:(1) FORM 'C' (SPDT).

RELAY CONTACT RATING:5 AMPS @ 30 VDC.

TIME DELAY:1 OR 5 SECONDS.

OUTPUT TYPE:FAIL SAFE / NON-FAIL SAFE.

ELECTRICAL LIFE:100,000 OPERATIONS.

Camden CM-324/42 Camden CM32442  CamdenCM32442, CM-324/42,  CM32442,  CM-324/42 Camden,  CM32442Camden,  CM32442 Camden, CM-324/42,  CM32442,

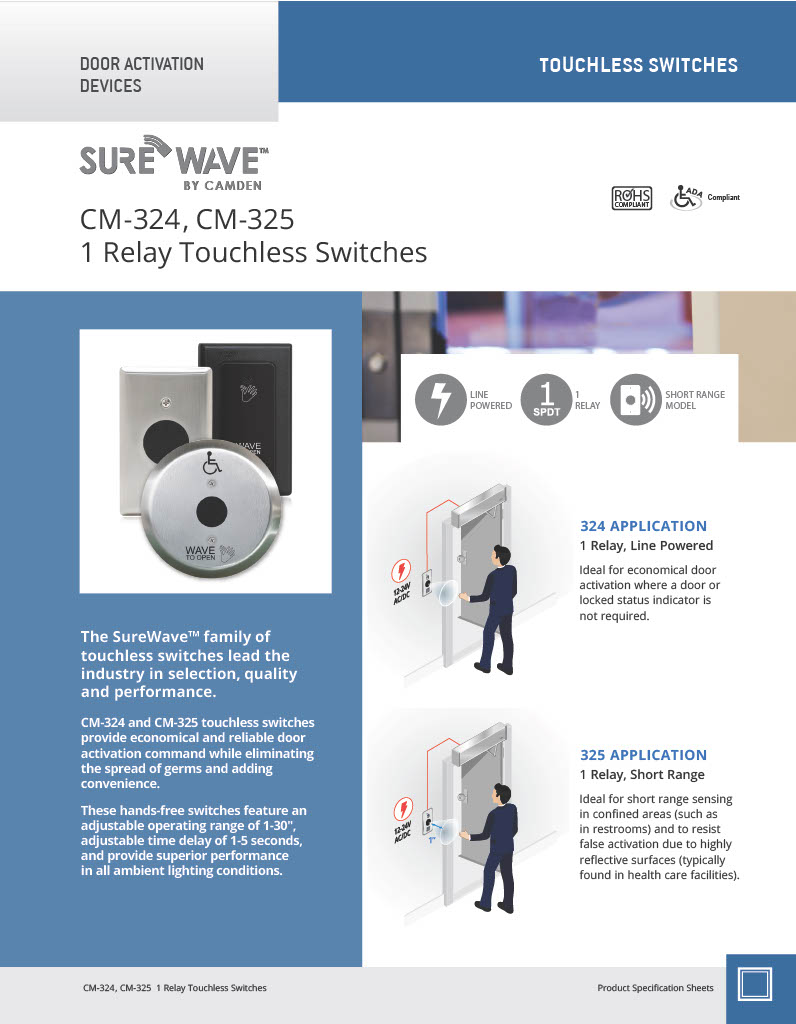

The SureWave family of touchless switches lead the industry in selection, quality and performance.

CM-324 and CM-325 touchless switches provide economical and reliable door activation command while eliminating the spread of germs and adding convenience.

These hands-free switches feature an adjustable operating range of 1-30", adjustable time delay of 1-5 seconds, and provide superior performance in all ambient lighting conditions.
