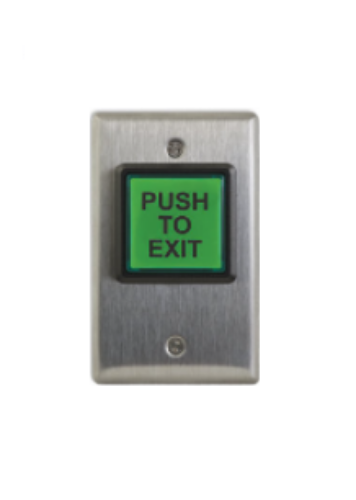

Camden CM-30E LED Illuminated Pushbutton, Single Gang, 2" Button Dimension, 'Push to Exit' Text, Satin Stainless Steel Finish

Camden CM-30E LED Illuminated Pushbutton, Single Gang, 2" Button Dimension, 'Push to Exit' Text, Satin Stainless Steel Finish

CM-30E:'PUSH TO EXIT', GREEN, LABEL 12/28V LED BULB, SPRING RETURN, SPDT MOMENTARY

Voltage: 12/24 VDC Contact Type: SPDT Form 'C' Contact Rating: 10 A @ 30 VDC Switch Type: Momentary Current Draw: LED Bulb: 14 mA Dimensions: 4-1/2"x 2-3/4" x 1-7/8"" (114.mm x 70mm x 48mm) Std. Finish: US32/C32D

FEATURES

• High visibility 2" square button.
• Single gang stainless steel faceplate.
• 'C' and 'U' models offer the largest selection of insert labels (see info below for labels included).
• 'E' model offers economical single label 'Push to Exit' version.
• LED bulb provides super-bright operation and longevity (10 year estimate).
• 3 year warranty with '2 for 1' replacement.
