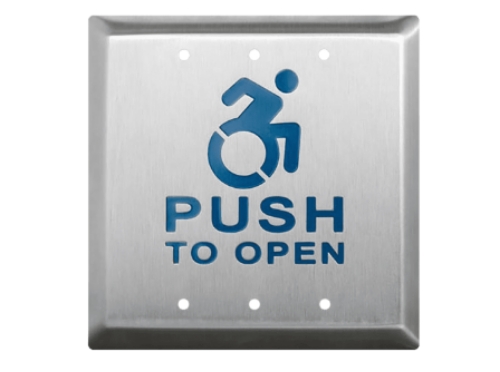

Camden CM-45K/A4 4-1/2" Square Push Plate Switch, Kinetic Wireless Transmitter, 300' Range, Concealed Screws, SPDT Relay, 'Push to Open' Text/Active Wheelchair Symbol, Satin Stainless Steel Finish
Product Details
Camden CM-45K/4A 4-1/2" Square Push Plate Switch, Kinetic Wireless Transmitter, 300' Range, Concealed Screws, SPDT Relay, 'Push to Open' Text/Active Wheelchair Symbol, Satin Stainless Steel FinishMODEL
- CM-45K/4A-1/2" Square Push Plate Switch, Concealed Screws, w/ no-battery Kinetic wireless transmitter.

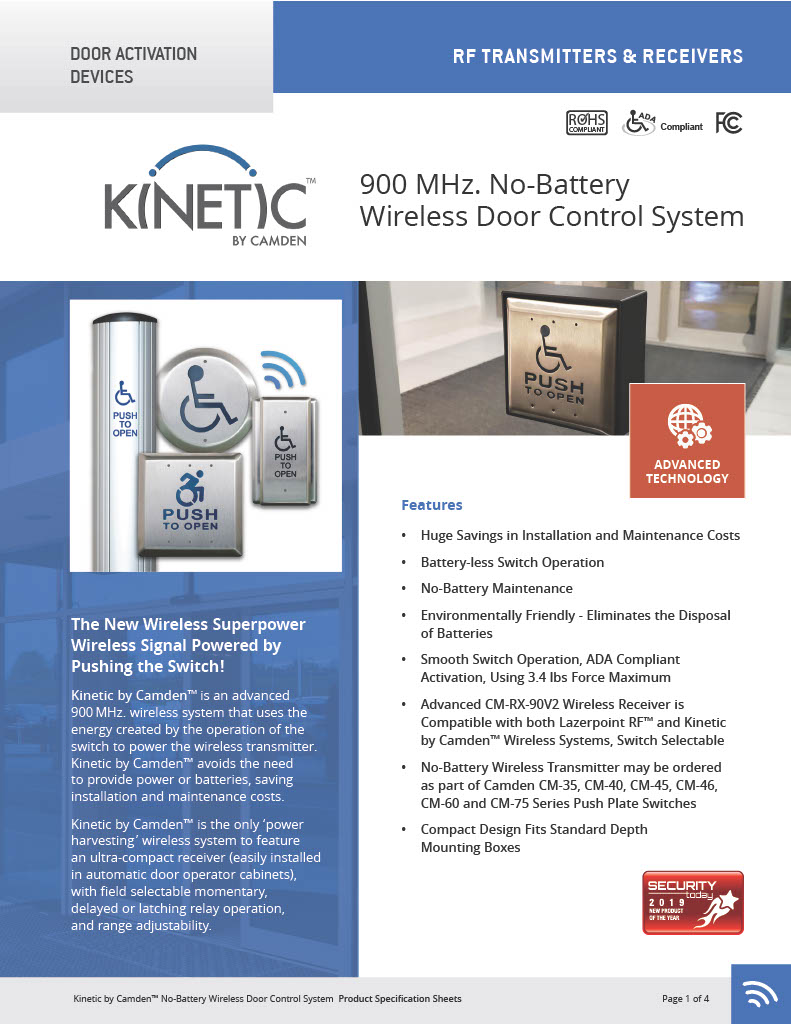

Kinetic by Camdenis the only 'power harvesting' wireless system to feature an ultra-compact receiver (easily installed in automatic door operator cabinets), with field selectable momentary, delayed or latching relay operation. The wireless system compatible with all brands of automatic door operators and are designed to provide reliable door activation in any commercial, industrial and institutional application. Kinetic by Camden no-battery wireless systems are designed for indoor or outdoor applications. For switches directly exposed to rain or snow, a water tight switch option is recommended.
Please note: Kinetic no-battery transmitters cannot be used with Lazerpoint RF spread spectrum wall switch, FOB, keypad or hands-free wireless transmitters.
All CM-45/46 series all-active switches are complete ready-to-install assemblies. CM-45 series are supplied with stainless steel Allen screws and an Allen wrench for mounting. CM-46 series are supplied with stainless steel tamperproof screws.
APPLICATION
Camden all-active switches are designed for areas where an easy-to-activate, high visibility switch is desired. Ideal for high-traffic areas, hospitals, wheelchair access, seniors residences, etc. They can be surface or flush mounted.
Camden all-active switches are designed to control electric strikes, electromagnetic locks and automatic doors. They may also be used for shunting, bypassing alarms, request to exit, timed functions, and many other applications.
The switches are made for high frequency usage, in both indoor and outdoor environments. Camden switches are versatile, and can be supplied in various configurations and finishes, to suit any commercial, industrial, or residential application
FEATURES
- LARGE, EASY TO OPERATE SWITCHES.
- ALL-ACTIVE DESIGN REQUIRES MINIMAL ACTUATION FORCE.
- MEETS ADA REQUIREMENTS.
- CM-45 AND CM-46 OFFER STAINLESS STEEL CONSTRUCTION. CM-46CB ALUMINUM FACEPLATE.
- FLUSH MOUNT OR SURFACE MOUNT.
- UL/CSA APPROVED SWITCH, RATED 15 AMPS @ 30V DC.
- AVAILABLE WITH 'ACTIVE' WHEELCHAIR SYMBOL GRAPHICS .
- OPTIONAL ARCHITECTURAL FINISHES.
CM-454 1/2" SQUARE PUSH PLATE SWITCH, CONCEALED SCREWS.
CM-464 1/2" SQUARE PUSH PLATE SWITCH, EXPOSED SCREWS.
CM-46CBBLUE 4 1/2" SQUARE PUSH PLATE SWITCH, EXPOSED SCREWS. AVAILABLE WITH GRAPHIC OPTION '/1' (BLANK), '/2' (WHEELCHAIR), AND '/4' (WHEELCHAIR + 'PUSH TO OPEN') ONLY.
Voltage: 12/24V AC/DC.
Switch Type: Momentary.
Contact Type: SPDT Form 'C'.
Current Rating: 15 A @ 30 VDC.
Mounting: Single or Double Gang.
Std. Finish:
CM-45/46: US32 / 630.
CM-46CB: Blue Paint.
Dimensions: CM-45/46: 4-1/2" x 4-1/2" x 1-1/4" (114mm x 114mm x 32mm).
ARCHITECTS /ENGINEERS SPECIFICATIONS
The switches to be used throughout the complex shall be Camden Door Controls CM-45, CM-46 or CM-46CB series all-active switches.
The switches shall be easy-to-activate, ADA compliant, 4 1/2'' square. Switches shall be all-active, whereby pressing any part of the faceplate will activate the device. Faceplates shall be constructed of stainless steel or aluminum. Switches shall use plastic spacers and rubber dampers for noise reduction. Switches shall be rated at a minimum of 15 amps @ 30V DC.
DESCRIPTION
Camden Door Controls CM-45/46 Series all-active switches are heavy-duty, ADA-compliant door controls. The 4 1/2" square faceplates are stainless steel or aluminum, and the assemblies are designed for easy installation.
Both series mount to standard single gang or double gang electrical boxes. CM-45 series is sold as a complete assembly, which is mounted to the in-wall box (or surface box) using stainless steel Allen screws and a hex key (included with the switch). Access to the mounting screws is through small holes in the front of the faceplate. This provides for tamper resistance, while maintaining an attractive overall appearance.
CM-46 series is sold as a two part assembly. The rear assembly is mounted to the in-wall box (or surface box). The front faceplate is then screwed to the rear assembly using either standard or security screws (included with kit).
The SPDT (and optional DPDT) switches are UL/CSA approved, and rated 15 amps @ 30 VDC. The push switches are offered with different graphics, and in various architectural finishes. Weather resistant, and water tight configurations are also available.
