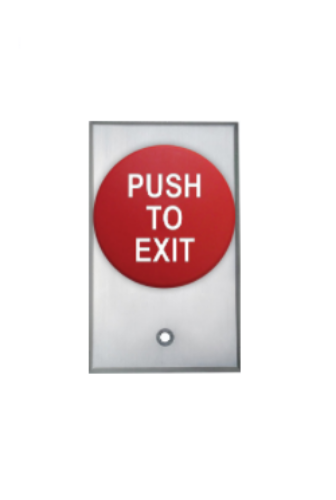

Camden CM-5085RPTE Spring Return Mushroom Pushbutton, Single Gang, 2-3/8" Red Button Diameter, 1 to 60 Second Pneumatic Timer, 'Push to Exit' Text, Aluminum Finish

Camden CM-5085RPTE Spring Return Mushroom Pushbutton, Single Gang, 2-3/8" Red Button Diameter, 1 to 60 Second Pneumatic Timer, 'Push to Exit' Text, Aluminum Finish

MODEL NUMBER:  CM-5085RPTE  Spring Return, DPST 1-60 sec Pneumatic Time Delay, Red Button, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available.

Camden Door Controls CM-4085 and CM-5085 Series Switches are heavy duty push buttons designed for industrial and commercial applications. CM-4085 buttons are 1-5/8 (40mm) in diameter, CM-5085 buttons are 2 3/8" (60mm) in diameter. They are available in red, blue, or green. All switches feature vandal resistance faceplate 1/4" [6mm] thick brushed aluminum, optional duranodic (US40) finish is also available. CM-4085 and CM-5085 series switches are supplied with 1-60 second pneumatic timer. Pneumatic timer features 6 amps @ 24VDC.

FEATURES - Large palm button (red, blue or green). - Vandal and tamper resistant. - Indoor or outdoor applications. - Large engraved symbols or words. - Spring return, push/pull, or push/turn to release operation. - Available with integrated 1-60 sec pneumatic time delay. - Color coded 18 AWG spade connections. - 3 year warranty with '2 for 1' replacement.

SPECIFICATIONS: Voltage:

 12/24 VDC. Contact Type: SPDT and DPST models. Switch Type: Momentary / Maintained / Push-Pull / Push-Turn. Current Rating: 6 A @ 30 VDC. Temp Range: -13 Degree F to 158 Degree F (-25 Degree C to 75 Degree C). Switch Life: 100,000 cycles. Dimensions: 4-1/2" x 2-3/4" x 1-3/4" (114mm x 40mm x 44mm) Std. Finish:  Brushed Aluminum.
