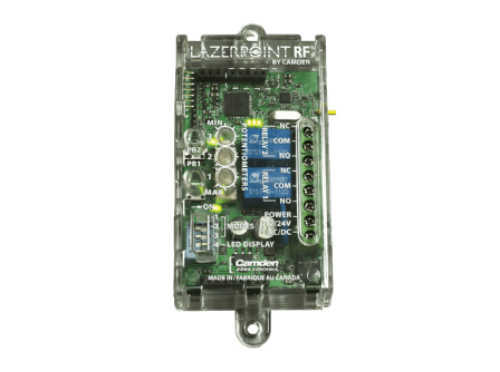

Camden CM-RX92 2 Relay Receiver, 12/24VAC/DC

Camden CM-RX92 2 Relay Receiver, 12/24VAC/DC Model

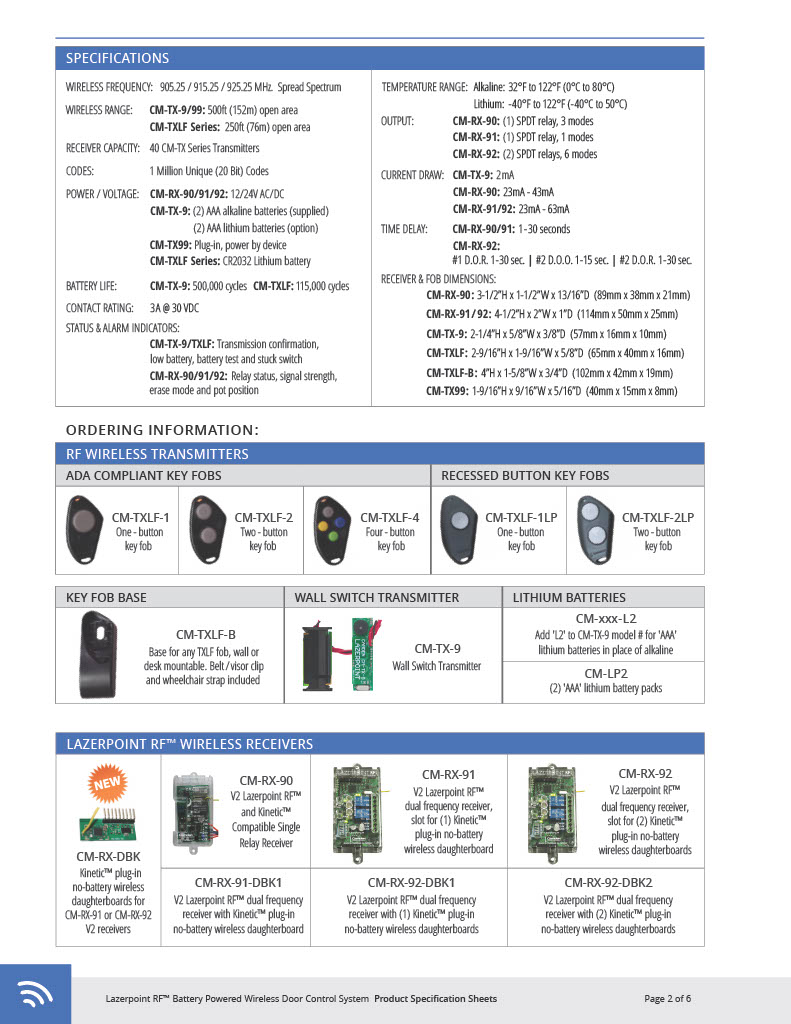

• RX-92 Receiver Size- 3 1/2" L x 2" W x 1" H Mounting- 2 # 8 screws at 4" centers or Velcro (supplied) Enclosure- Clear plastic case Operating voltage- 12 / 24 Volts, AC / DC Current Draw- 23 mA nominal @ 24 VAC 63 mA maximum @ 24 VAC
• 5 mA per RF module Response time- 30 - 200 ms Operating Modes- Via 4 dip-switches Memory- 40 transmitters LED's- Indicate: relay status; signal strength; learn mode; erase mode & potentiometer position Outputs- -RX-92 - 2 x SPDT relays Relay contact rating- 3 amps @ 30 VDC Time Delays- 3 potentiometers: Relay1 D.O.R. = 1- 30 sec Relay 2 D.O.O = 1- 15 sec Relay 2 D.O.R. = 1- 30 sec Electrical Life- 1 x 105 minimum Temperature rating -40 to 185 F (-40 to +85 C) Certifications- FCC Part 15 Compliant Canada RSS/CNR210:1078 1032 061A Meets: IEC60601
