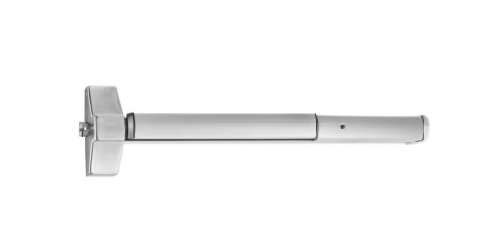

Corbin Russwin ED5200S/5200SA Rim SecureBolt Exit Device

Standard rim exit devices have one vulnerability that most buyers don't think about until a break-in attempt happens. The conventional pullman-style latchbolt door locks automatically when the door closes, but it can be compromised by lateral vector force applied directly to the rim strike. Apply enough sideways pressure to the door while the latch is engaged and the strike can be forced out of the frame. The Corbin Russwin ED5200S addresses that directly. It's a Grade 1 SecureBolt rim exit device where the latchbolt operates on a deadbolt-style slide mechanism, not a standard pullman. The result is a device that resists lateral vector forces more effectively, reduces force transmission to the door frame, and eliminates the door-frame separation that forced entry attempts produce on standard rim devices. It's a meaningful security upgrade over a standard rim exit device without changing the form factor or installation process.

For the full Corbin Russwin ED5000 Series in rim, surface vertical rod, and concealed vertical rod configurations, browse Corbin Russwin ED5000 exit devices. For all commercial panic hardware, view our full exit hardware catalog.

What SecureBolt Actually Means

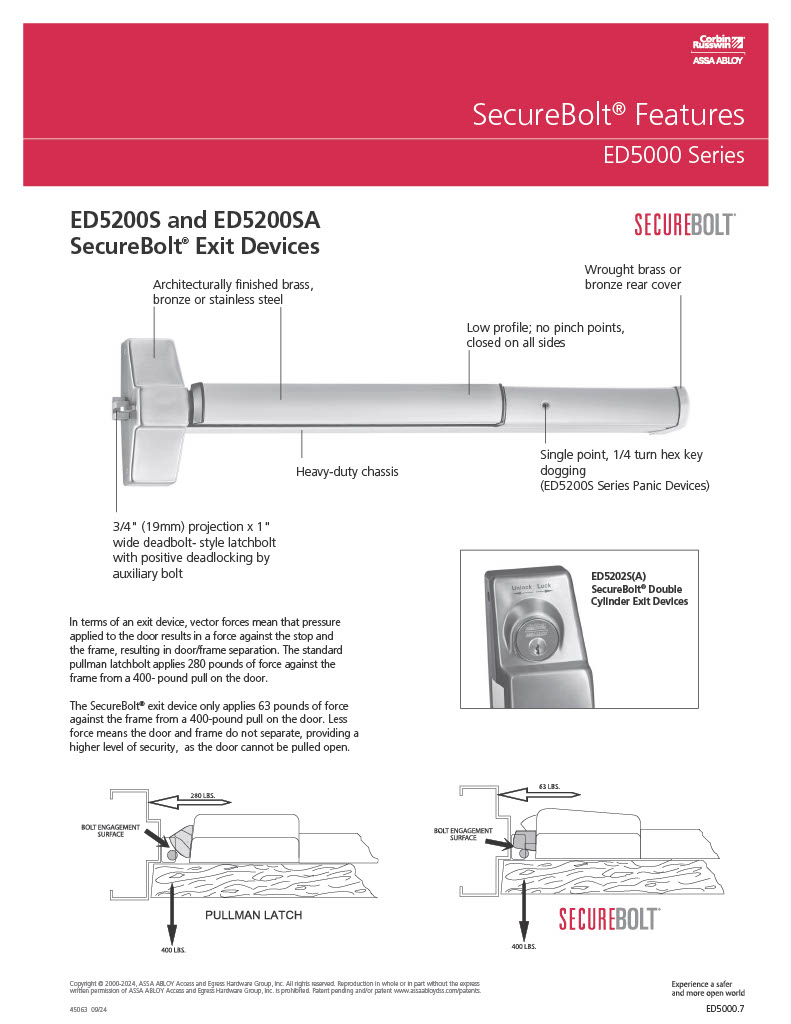

The SecureBolt latchbolt is a two-piece slide-action deadbolt mechanism with positive deadlocking by an auxiliary bolt. The latchbolt has a full 3/4" projection and is 1" wide, made from nickel steel. The two-piece design uses a roll-back lever that eliminates friction between the latchbolt and the strike during re-locking, which extends the life of both the latchbolt and the strike in high-cycle applications. The auxiliary bolt provides positive deadlocking the moment the door closes, without any manual operation required. Vector forces that would push a conventional pullman latch back into the device hit the deadbolt geometry instead, which transfers load into the door and frame rather than allowing latch retraction.

On doors with mullions, this also means increased opening stability. A standard rim device on a mullion-equipped double door opening puts stress on the mullion during forced entry attempts. The SecureBolt design reduces that force transmission, which extends mullion life and reduces maintenance on paired openings.

ED5200S vs. ED5200SA: The Fire Rating Difference

The ED5200S is the standard version. The ED5200SA carries the "A" label three-hour fire rating for use on single doors up to 4' x 8' and double doors up to 8' x 8'. Both versions meet ANSI A156.3 Grade 1 requirements, UL 305 panic hardware listing, California State Fire Marshal approval under section 13144.1, and NFPA 101 Life Safety Code compliance. If your opening is fire-rated, specify ED5200SA. If it's not fire-rated, ED5200S is the correct model. The "A" designation on the fire-rated version indicates the specific label class.

Corbin Russwin ED5200S Technical Specifications

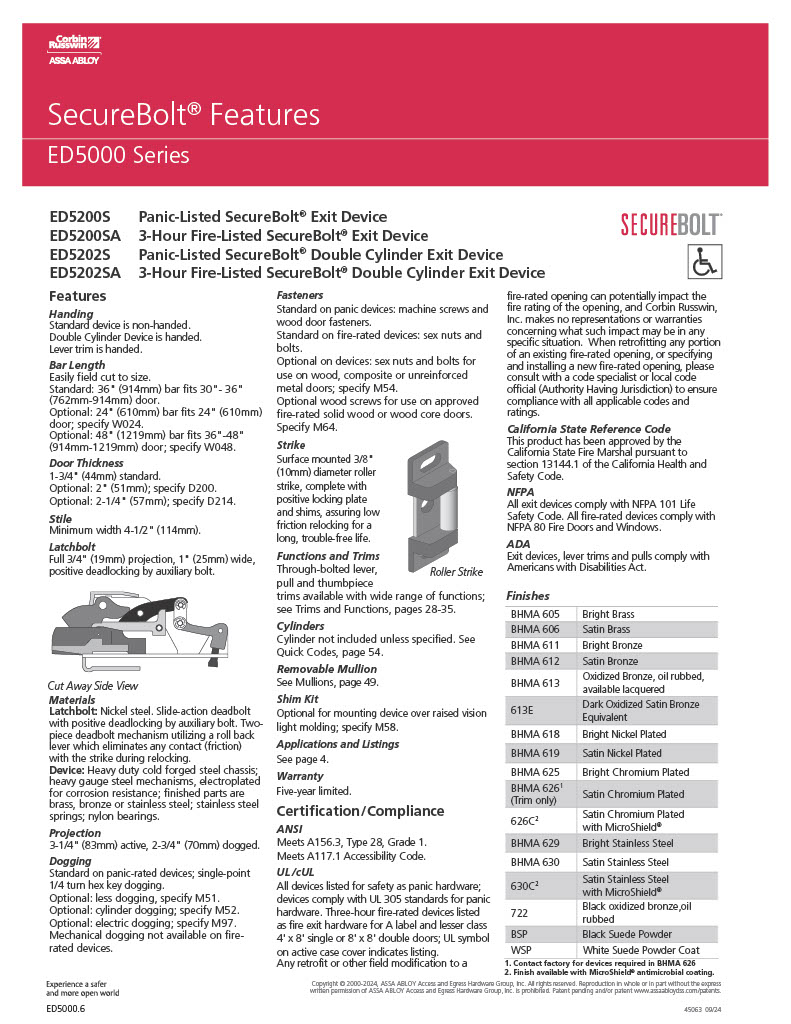

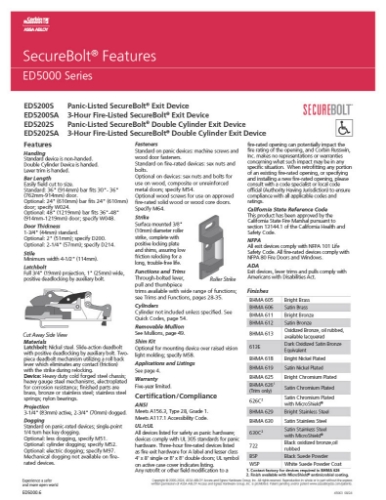

Series: ED5000. ANSI standard: A156.3, Type 1, Grade 1. ADA: meets ANSI A117.1 Accessibility Code. UL/cUL: listed for safety as panic hardware, UL 305 compliant. Fire rating: ED5200SA carries 3-hour A label rating for 4' x 8' single and 8' x 8' double doors. NFPA: complies with NFPA 101 Life Safety Code; fire-rated versions comply with NFPA 80. California State Fire Marshal: approved per section 13144.1 California Health and Safety Code. Handing: non-handed. Minimum stile width: 4-1/2" (114mm). Bar length: standard 36" fits doors 30" to 36"; optional 48" bar fits doors 36" to 48", specify W048. Door thickness: standard 1-3/4" (44mm). Door type: wood and metal. Latchbolt: 3/4" (19mm) projection, 1" (25mm) wide, nickel steel, positive deadlocking by auxiliary bolt, slide-action two-piece mechanism. Chassis: heavy-duty cold-forged steel. Mechanisms: heavy-gauge steel, electroplated for corrosion resistance. Springs: stainless steel. Bearings: nylon. Dogging: hex key standard; cylinder dogging available (M52). Warranty: 5-year limited.

Dogging and Electric Options

Standard hex key dogging is included. Cylinder dogging (M52) allows a key to dog the device in the retracted position without the hex wrench, which is convenient for high-traffic periods. Motorized Latch Retraction (MELR) is available in M91 and M92 configurations for access control integration, where a remote signal retracts the latch for electric entry. The M92 version adds touchbar monitoring for door position and bar depression signals. Electric latch pullback (M94) is also available.

Compatible Outside Trims

The ED5200S ships exit-only. Outside trim determines entry function. Compatible ED5000 Series trims cover passage, classroom, storeroom, and nightlatch configurations across multiple lever styles. For all compatible outside trims, browse Corbin Russwin exit device trims.
