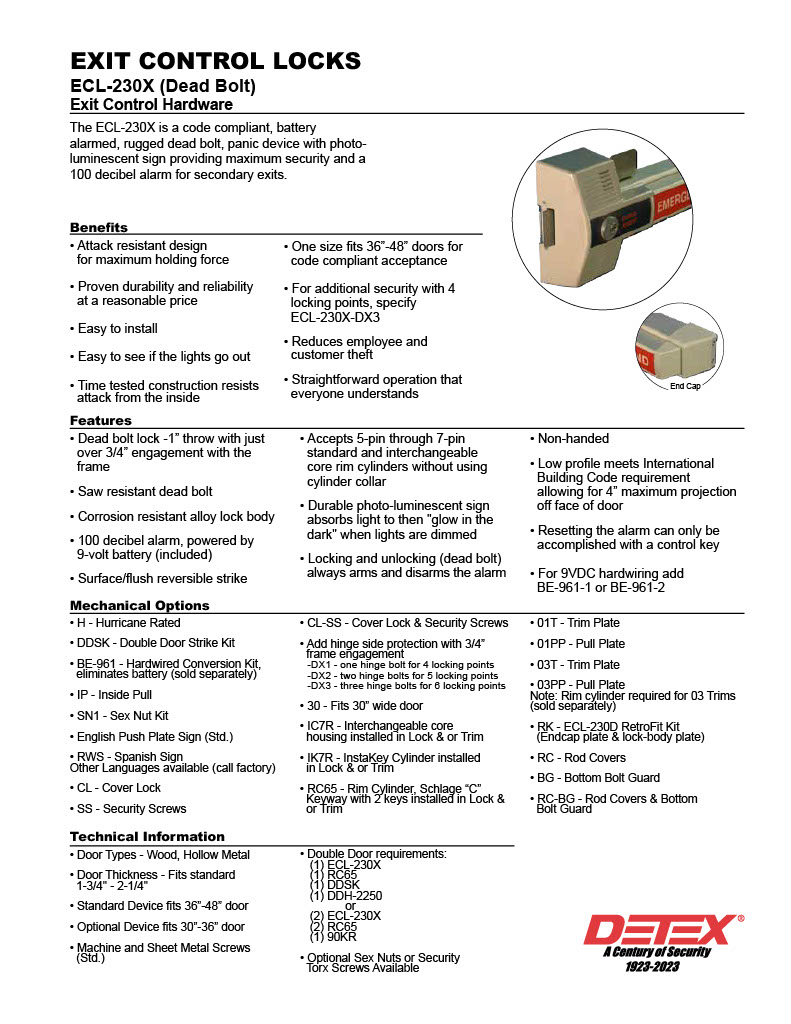

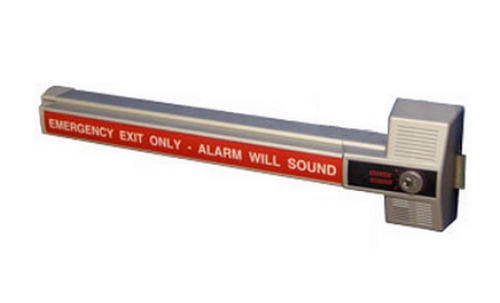

Detex ECL-230X Alarmed Dead Bolt Panic Device

Detex ECL-230X Alarmed Dead Bolt Panic Device

Benefits

 Attack resistant design for maximum holding force  - Proven durability and reliability at a reasonable price Easy to install - Supplied With 9 Volt Battery Reduces employee and customer theft  - Time tested construction resists attack from the inside One size fits 36"-48" doors for code compliant acceptance  - Easy to see if the lights go out Straightforward operation that everyone understandsFeatures Dead bolt lock -1" throw with just over 3/4" engagement with the frame  - Saw resistant dead bolt Corrosion resistant alloy lock body  - 100 decibel alarm, powered by 9-volt battery (included) Surface/flush reversible strike  - Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed  - Locking and unlocking (dead bolt) always arms and disarms the alarm Non-handed  - Low profile meets International Building Code requirement allowing for 4" maximum projection off face of door  Resetting the alarm can only be accomplished with a control key  -  For 9VDC hardwiring use BE-961-1 or BE-961-2see belowDetex Limited Warranty

10 Year Limited Manufacturers Warranty

Model:Detex ECL-230X, ECL 230X, ECL230X

Mechanical Options - Gray Finish (Std.) Note: Contact factory for additional finishes   H - Hurricane Rated

• 30 - Fits 30" wide door  - English Push Plate Sign (Std.)

• RWS - Spanish Sign  - Other Languages available (call factory for details

• DX1 - Add hinge side protection with one hinge bolt for 2 locking points (3/4" frame engagement)see below

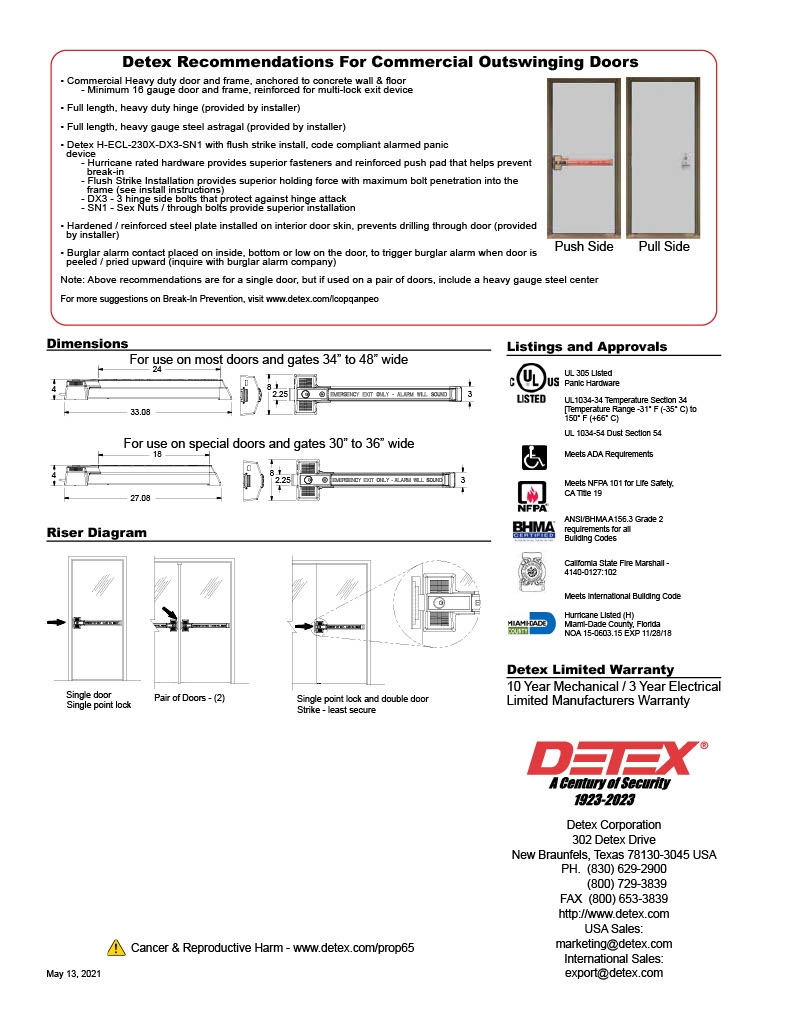

Technical Information

• Door Types - Wood, Hollow Metal - Door Thickness - Fits standard 1-3/4" - 2-1/4"

• Standard Device fits 36"-48" door

• Machine and Sheet Metal Screws (Std.)

Listings and Approvals

UL 305 Listed Panic Hardware

UL1034-34 Temperature Section 34 [Temperature Range -31 Degree F (-35 Degree C) to 15 Degree  F (+66 Degree C)

UL 1034-54 Dust Section 54

Meets ADA Requirements

Meets NFPA 101 for Life Safety, CA Title 19

ANSI/BHMA A156.3 Grade 2 requirements for all Building Codes

California State Fire Marshall - 4140-0127:102

Meets International Building Code

Hurricane Listed (H) Miami-Dade County, Florida NOA 13-0617.22 EXP 11/28/18
