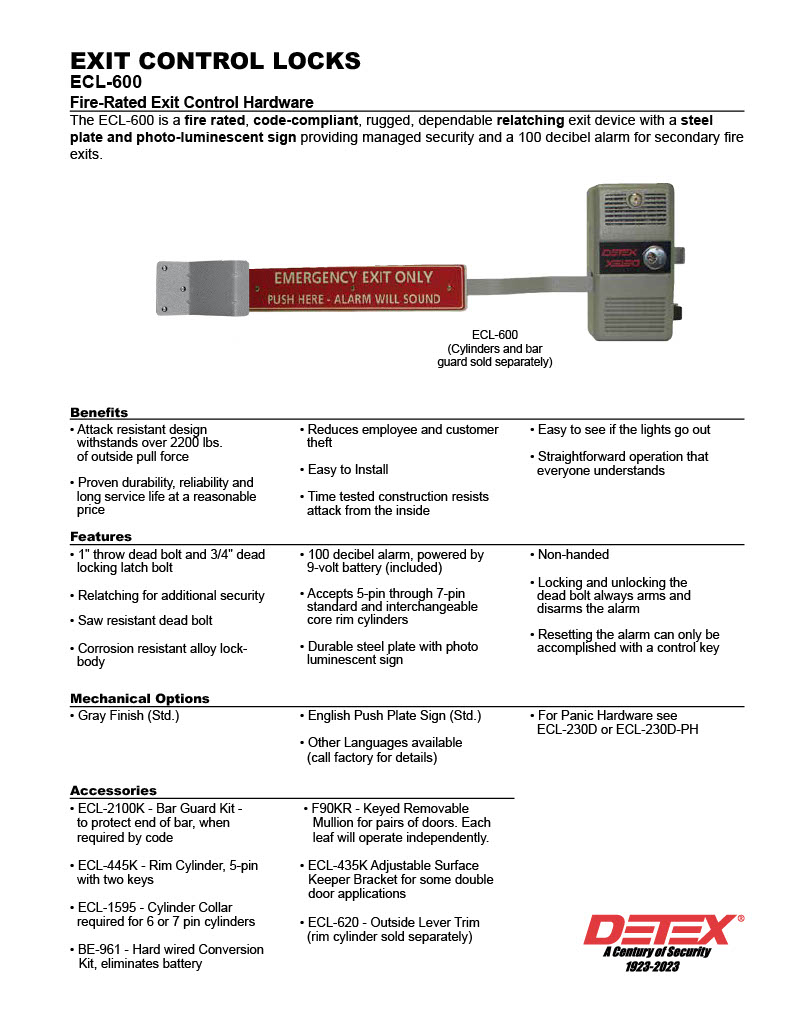

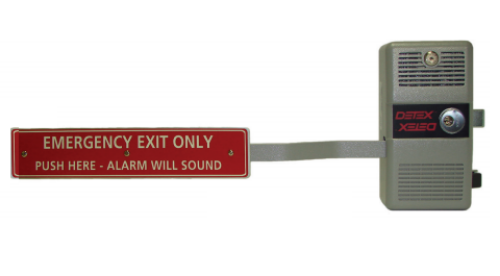

Detex ECL-600 GRAY/BLACK Fire-Rated Alarm Panic Exit Control Lock

 Detex ECL-600 Fire-Rated Alarm Panic Exit Control Lock

Benefits

 Attack resistant design withstands over 2200 lbs. of outside pull force Proven durability, reliability and long service life at a reasonable price Reduces employee and customer theft Easy to Install Time tested construction resists attack from the inside Easy to see if the lights go out Straightforward operation that everyone understandsFeatures

 1" throw dead bolt and 3/4" dead locking latch bolt Relatching for additional security Saw resistant dead bolt Corrosion resistant alloy lock- body 100 decibel alarm, powered by 9-volt battery (included) Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders Durable steel plate with photo luminescent sign Non-handed Locking and unlocking the dead bolt always arms and disarms the alarm Resetting the alarm can only be accomplished with a control keyAccessories

 ECL-2100K - Bar Guard Kit - to protect end of bar, when required by code -See Below BE-961 - Hard wired Conversion Kit, eliminates battery -See Below ECL-620 - Outside Lever Trim (rim cylinder sold separately) -See BelowMechanical Options

 Gray Finish (Std.) English Push Plate Sign (Std.) Other Languages available (call factory for details)Detex Limited Warranty

10 Year Limited Manufacturer's Warranty

Model:Detex ECL-600, ECL 600, ECL600

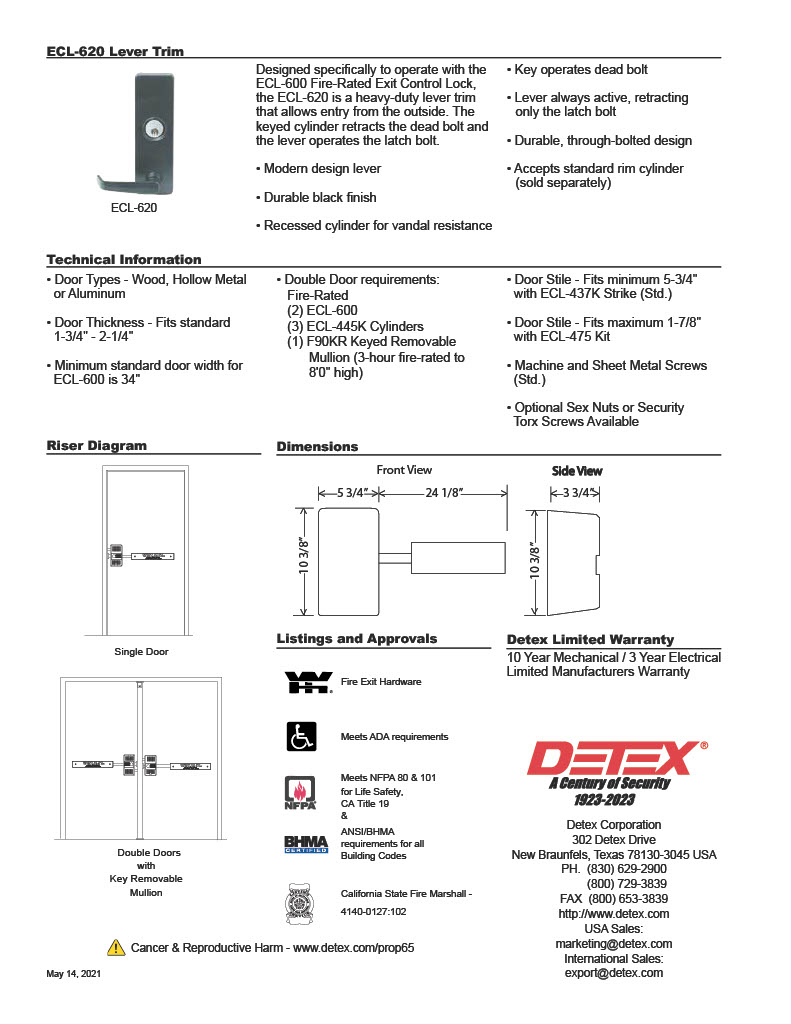

 *Technical Information*

 Door Types - Wood, Hollow Metal or Aluminum Door Thickness - Fits standard 1-3/4" - 2-1/4" Minimum standard door width for ECL-600 is 34" Door Stile - Fits minimum 5-3/4" with ECL-437K Strike (Std.) Door Stile - Fits maximum 1-7/8" with ECL-475 Kit Machine and Sheet Metal Screws (Std.)Listings and Approvals

Fire Exit Hardware

Meets ADA requirements

ANSI/BHMA requirements for all Building Codes

Meets NFPA 80 & 101 for Life Safety, CA Title 19

California State Fire Marshall - 4140-0127:102
