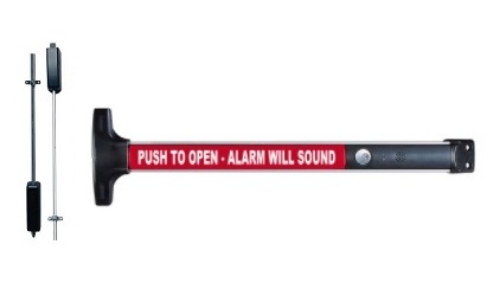

Detex V50 EB CD 628 96 Value Series Wide Stile Surface Vertical Rod Exit Device, Battery Operated Alarm, Cylinder Dogging, Door Height

Detex V50 EB CD 628 96 Value Series Wide Stile Surface Vertical Rod Exit Device, Battery Operated Alarm, Cylinder Dogging, 96 Surface Strike

CD - Cylinder Dogging (Std.)  Cylinders not included.   (Cylinder (C65) or Interchangeable core housings (IC7)

• Priced to be the best value for  durable, attractive panic   hardware
• Patented mounting plate and  strike locator replaces paper  templates
• Outside trims are easily changed   or rekeyed without removing   device from door
• Minimal door prep saves time and  money
• Fast and easy installation saves   time and money
• Angled end cap deflects damage  away from device
• Fits any door in almost any decor Benefits

Exit Alarm (EB)- Battery Powered Standard Package Includes: - Switch monitors pushpad movement and triggers alarm - Green & Red LED, cylinder arming, 9-volt battery and piezo horn - Cylinder Dogging (CD) standard or Less Dogging (LD - NOTE: Fire Rated devices come LD only) - Pushpad Signage "Push to Open Alarm Will Sound"

Features

• Stainless steel 3/4" deadlocking  top latch bolt
• Bottom drop bolt, 5/8" dia. x   5-5/8" long secures into strike plate
• Handed, field reversible
• Field sizable
• 1/8 turn dogging
• Ribbed aluminum rail   extrusion
• Impact resistant ABS and   anodized surfaces
• Modular design accepts a variety  of outside trims and functions
• Standard and narrow stile pull  trims available

Mechanical Options

- CD - Cylinder Dogging.

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

- 84 - Fits 7' Door Height (Std.)

- 96 - Fits 8' Door Height

- 96 Surface top stike top (Std.)

- Available with 628 base rail extrusion

- Available with 711 base rail extrusion

Accessories

- Outside Trim -See Below

- NSK - Narrow Stile Conversion Kit - Converts V50 to fit narrow stile glass door applications

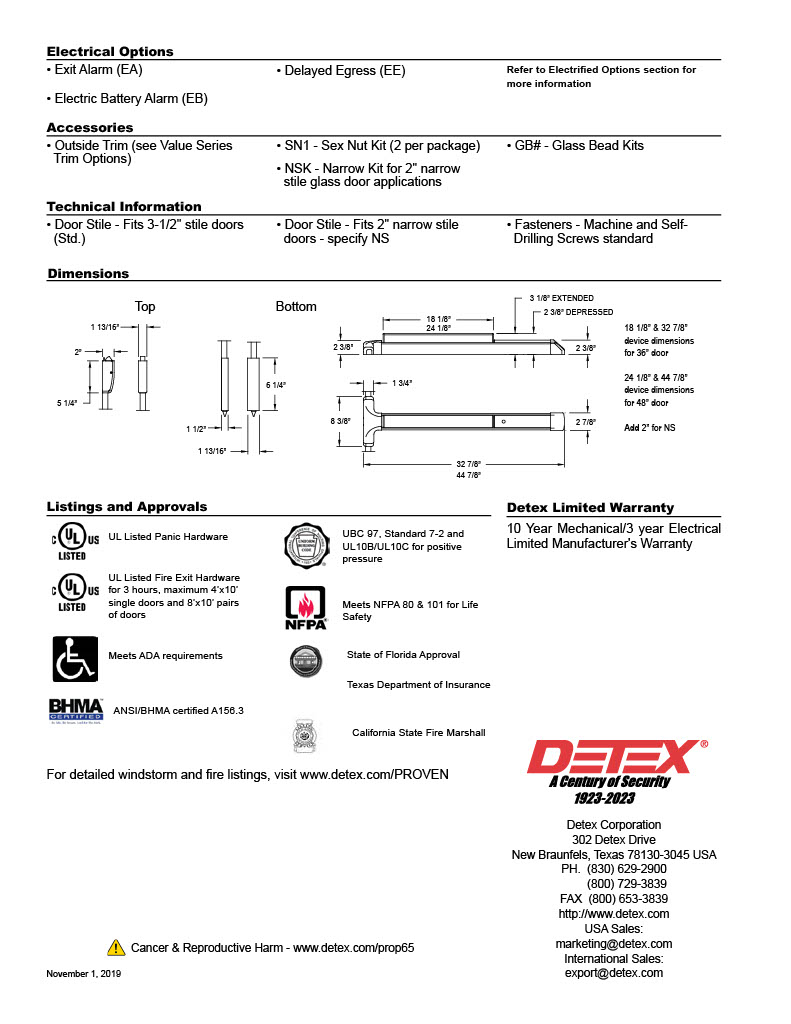

Technical Information

- Door Stile - Fits 3-1/2" stile doors (Std.)

- Fasteners - Machine and Self- Drilling Screws standard

Detex Limited Warranty

10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Model:Detex V50 EB CD, V50EB CD, V50EBCD, V50-EB-CD,V50EBCD628963684,

V50CD628963696, V50CD628964884, V50CD628964896, V50CD628711963684

**

Listings And Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and 8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

California Fire Marshall 4140-0127:0105

Meets NFPA 80 & 101 for Life Safety
