Detex V50 EB LD 628 96 48X84 Value Series Wide Stile Surface Vertical Rod Exit Device, Battery Operated Alarm, Less Dogging, 48" - Device for 84 In. Door Height

Detex V50 EB LD 628 96 48X84 Value Series Wide Stile Surface Vertical Rod Exit Device,*Battery Operated Alarm*, Less Dogging, 48" - Device for 84 In. Door Height

LD - Less dogging

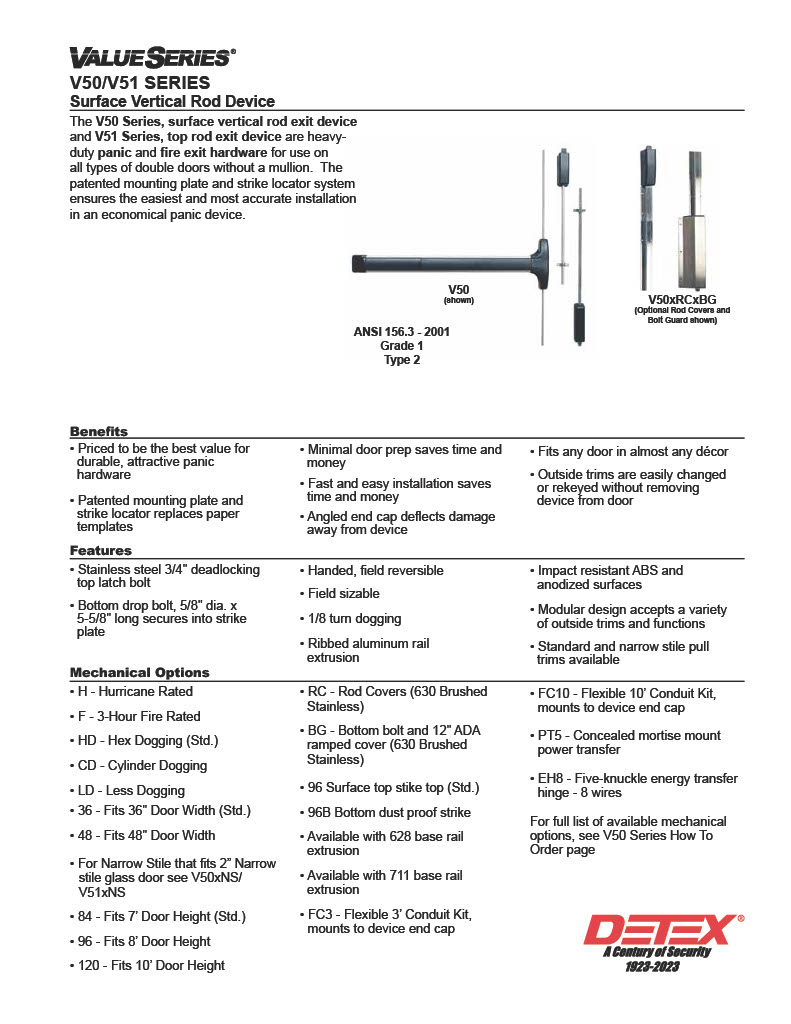

• Priced to be the best value for  durable, attractive panic   hardware
• Patented mounting plate and  strike locator replaces paper  templates
• Outside trims are easily changed   or rekeyed without removing   device from door
• Minimal door prep saves time and  money
• Fast and easy installation saves   time and money
• Angled end cap deflects damage  away from device
• Fits any door in almost any decor Benefits

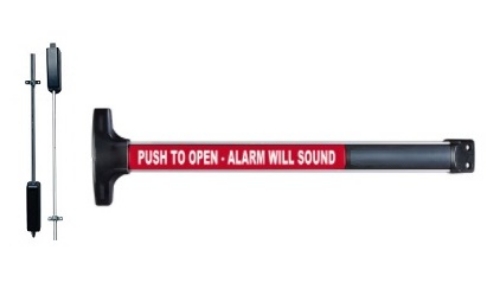

Exit Alarm (EB)- Battery Powered Standard Package Includes: - Switch monitors pushpad movement and triggers alarm - Green & Red LED, cylinder arming, 9-volt battery and piezo horn - Cylinder Dogging (CD) standard or Less Dogging (LD - NOTE: Fire Rated devices come LD only) - Pushpad Signage "Push to Open Alarm Will Sound"

Features

• Stainless steel 3/4" deadlocking  top latch bolt
• Bottom drop bolt, 5/8" dia. x   5-5/8" long secures into strike plate
• Handed, field reversible
• Field sizable
• 1/8 turn dogging
• Ribbed aluminum rail   extrusion
• Impact resistant ABS and   anodized surfaces
• Modular design accepts a variety  of outside trims and functions
• Standard and narrow stile pull  trims available

Mechanical Options

- LD - Less Dogging.

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

- 84 - Fits 7' Door Height (Std.)

- 96 - Fits 8' Door Height

- 96 Surface top stike top (Std.)

- Available with 628 base rail extrusion

- Available with 711 base rail extrusion

Accessories

- Outside Trim -See Below

- NSK - Narrow Stile Conversion Kit - Converts V50 to fit narrow stile glass door applications

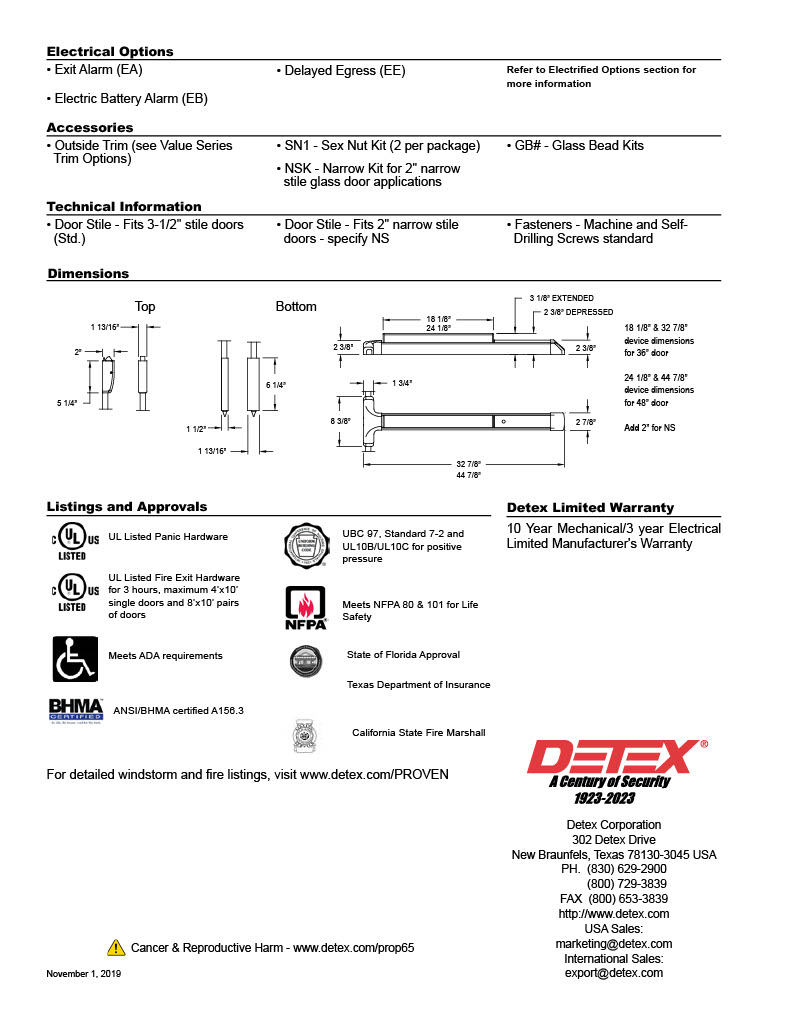

Technical Information

- Door Stile - Fits 3-1/2" stile doors (Std.)

- Fasteners - Machine and Self- Drilling Screws standard

Detex Limited Warranty

10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Model:Detex V51 EE CD, V51EE CD, V51EBCD, V51-EE-CD,V51EECD628963684,

V50LD628963696, V50LD628964884, V50LD628964896, V50LD628711963684

**

Listings And Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and 8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

California Fire Marshall 4140-0127:0105

Meets NFPA 80 & 101 for Life Safety
