Product Details

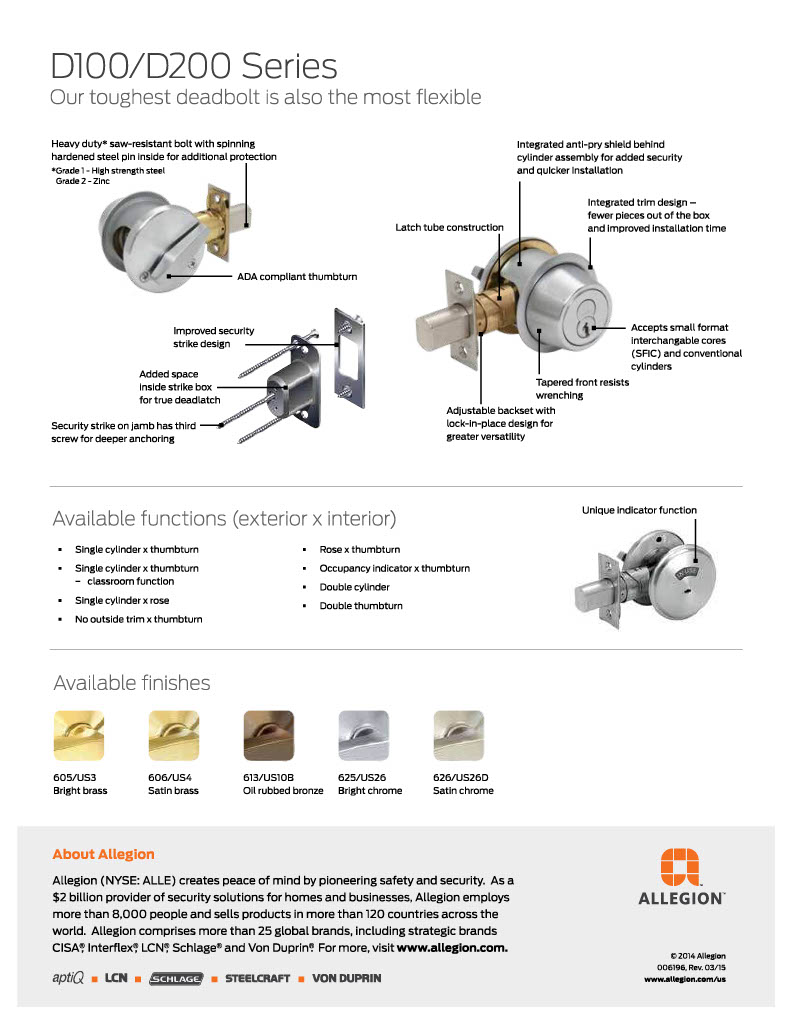

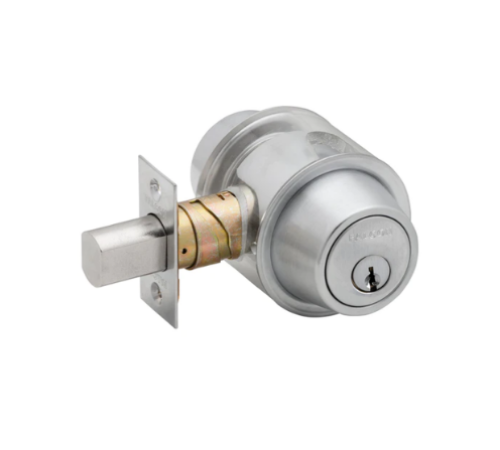

Falcon D131 Double Cylinder Deadbolt- ANSI/BHMA E01411

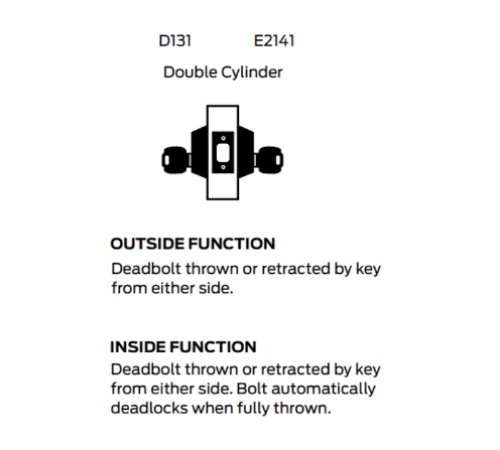

Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.
Door Thickness:1-3/8" to 1-3/4". Up to 2-1/4" door thickness
also available.
Backsets:2-3/8" - 2-3/4" adjustable deadbolt.
Attachment:Locks are solidly attached to the door by 1/4" heat-treated steel bolts. These bolts pass through a steel plate (D111, D121 and D141) or the inner cylinder housing (D131) and thread directly into the back of the outer cylinder housing. A permanent cap is inserted over the inside cylinder (D131)
making the bolts nearly impossible to remove.
Handing:Non-handed. May be used on right hand or left hand doors swinging in or out.
Cylinders:Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Also available with 7-pin cylinders. Available with 6 or 7-pin interchangeable cores. Furnished with two (2) nickel silver keys standard.
Keyway:G keyway standard on conventional cylinders. Also available with
some optional keyways.
Exposed Trim:Wrought brass or bronze reinforced with steel insert.
Deadbolts:Deadbolt locks are furnished with deadbolts which have a full 1projection. Housed within the deadbolt is a freeturning, 1/4" thick, hardened steel, saw-resistant roller.
Backset:Furnished standard with 2-3/8" - 2-3/4" adjustable backset and 1-1/8" x 2-1/4" faceplate.

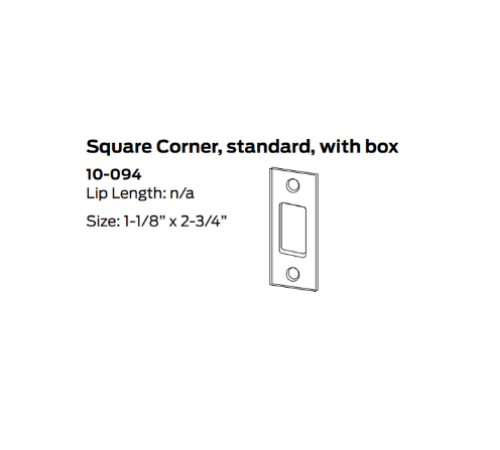

Strikes:2-3/4" x 1-1/8" lipless strike standard.
Screws:Furnished with wood/machine screws for use on wood or metal doors or frames.
ANSI/BHMA Standard:A156.5, 2001, Grade 1. UL Listed, A label, 3 hour.
Finish:605 - Bright Brass, 626 - Satin Chrome
Model:D131P626, D131CP626, D131BD626, D131CP605, D131BD605
