Product Details

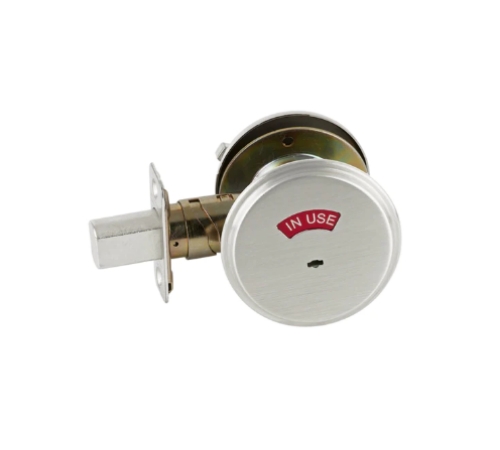

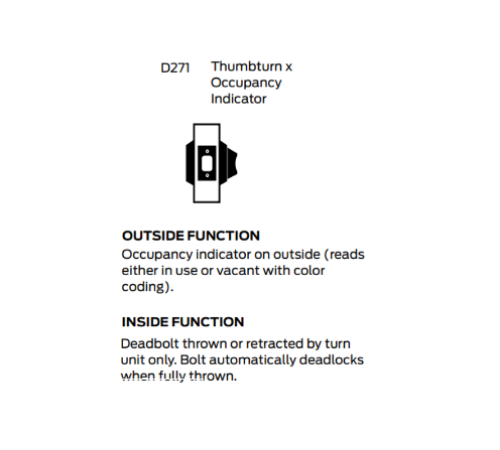

Falcon D271Thumbturn inside, occupancy indicator outsideDeadbolt
Deadbolt thrown or retracted by turn unit only. Occupancy indicator on outside (reads eitherin useorvacantwith color coding). Bolt automatically deadlocks when fully thrown. Emergency key supplied.
Door Thickness:1-3/8" to 1-7/8". For thicker doors, available
up to 2-1/4".
Backsets:2-3/8" - 2-3/4" adjustable deadbolt.
Attachment:Locks are solidly attached to the door by 1/4" heat-treated steel bolts. These bolts pass through a steel plate (D211, D221 and D241) or the inner cylinder housing (D231) and thread directly into the back of the outer cylinder
housing.
Handing:Non-handed. May be used on right hand or left hand doors swinging in or out.
Exposed Trim:Wrought brass or bronze reinforced with steel insert.
Deadbolts:Deadbolt locks are furnished with deadbolts which have a full 1projection. Housed within the deadbolt is a freeturning, 1/4" thick, hardened steel, saw-resistant roller.
Backset:Furnished standard with 2-3/8"- 2-3/4" adjustable backset and 1-1/8" x 2-1/4" faceplate.

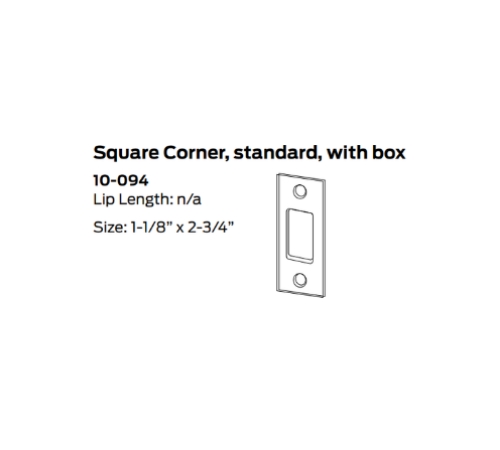

Strikes:2-3/4" x 1-1/8" lipless strike standard.
Screws:Furnished with wood/machine screws for use on wood or metal doors or frames.
ANSI/BHMA Standard:A156.5, 2001, Grade 2. UL Listed, A
label, 3 hour.
Finish:605 - Bright Brass, 626 - Satin Chrome, 613 - Oil Rubbed Bronze
Model:D271626, D271605, D271613
