Falcon D261M Thumbturn x Blank Deadbolt

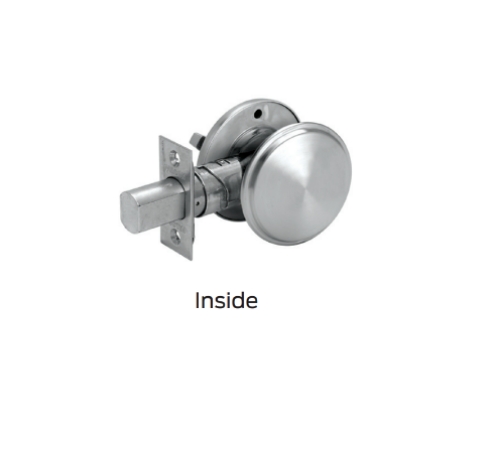

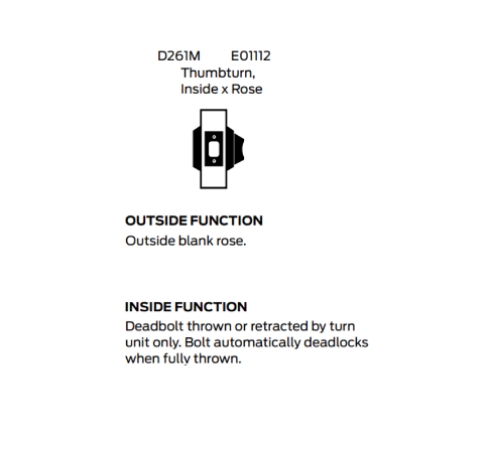

Falcon D261MThumbturn inside, blank rose outsideDeadbolt- ANSI/BHMA E01112

Deadbolt thrown or retracted by turn unit only. Outside blank rose. Bolt automatically deadlocks when fully thrown.

Door Thickness:1-3/8" to 1-7/8". For thicker doors, available up to 2-1/4".

Backsets:2-3/8" - 2-3/4" adjustable deadbolt.

Attachment:Locks are solidly attached to the door by 1/4" heat-treated steel bolts. These bolts pass through a steel plate (D211, D221 and D241) or the inner cylinder housing (D231) and thread directly into the back of the outer cylinder housing.

Handing:Non-handed. May be used on right hand or left hand doors swinging in or out.

Exposed Trim:Wrought brass or bronze reinforced with steel insert.

Deadbolts:Deadbolt locks are furnished with deadbolts which have a full 1projection. Housed within the deadbolt is a freeturning, 1/4" thick, hardened steel, saw-resistant roller.

Backset:Furnished standard with 2-3/8"- 2-3/4"adjustable backset and 1-1/8" x 2-1/4" faceplate.

Strikes:2-3/4" x 1-1/8" lipless strike standard.

Screws:Furnished with wood/machine screws for use on wood or metal doors or frames.

ANSI/BHMA Standard:A156.5, 2001, Grade 2. UL Listed, A label, 3 hour.

Finish:605 - Bright Brass, 626 - Satin Chrome

Model:D261M626, D261M605

ANSI/BHMA Standard:A156.5, 2001, Grade 2. UL Listed, A label, 3 hour.
