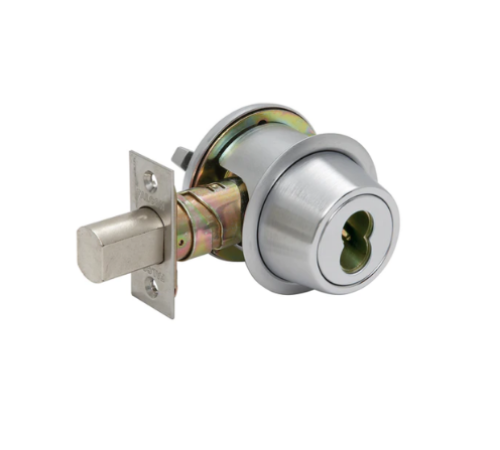

Falcon D211B Classroom Deadbolt - Small Format IC Core

Falcon D211B Classroom Deadlock (Schoolhouse Safety) -*Small Format IC Core - Less Core*  - ANSI/BHMA E01712

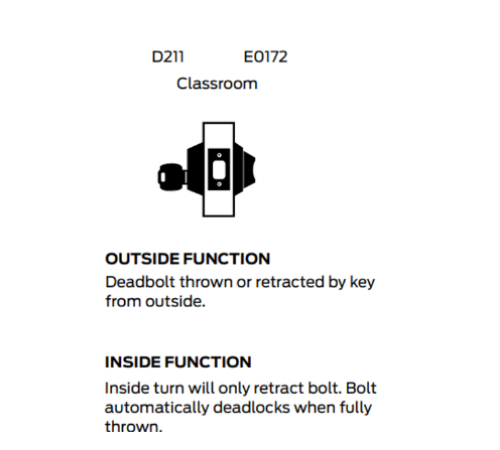

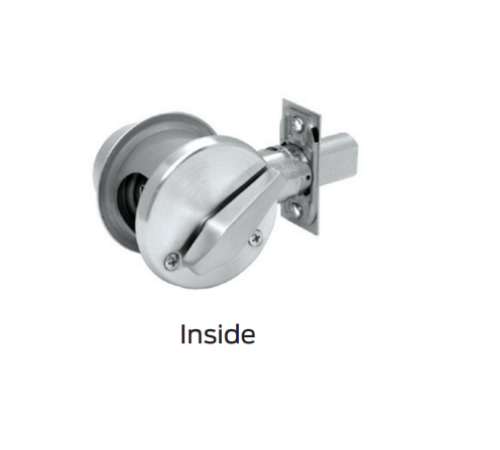

Deadbolt thrown or retracted by key from outside. Inside turn will only retract bolt. Bolt automatically deadlocks when fully thrown.

Door Thickness:1-3/8" to 1-7/8". For thicker doors, available up to 2-1/4" .

Backsets:2-3/8 - 2-3/4 adjustable deadbolt.

Attachment:Locks are solidly attached to the door by 1/4" heat-treated steel bolts. These bolts pass through a steel plate (D211, D221 and D241) or the inner cylinder housing (D231) and thread directly into the back of the outer cylinder housing.

Handing:Non-handed. May be used on right hand or left hand doors swinging in or out.

Exposed Trim:Wrought brass or bronze reinforced with steel insert.

Deadbolts:Deadbolt locks are furnished with deadbolts which have a full 1projection. Housed within the deadbolt is a freeturning, 1/4" thick, hardened steel, saw-resistant roller.

Backset:Furnished standard with 2-3/8 - 2-3/4 adjustable backset and 1-1/8 x 2-1/4 faceplate.

Strikes:2-3/4x 1-1/8 lipless strike standard.

Screws:Furnished with wood/machine screws for use on wood or metal doors or frames.

ANSI/BHMA Standard:A156.5, 2001, Grade 2. UL Listed, A label, 3 hour.

Finish:626 - Satin Chrome, 613 - Oil Rubbed Bronze

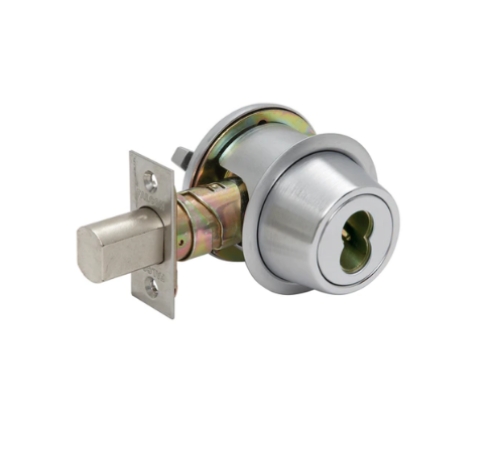

Model:D211B626, D211B613

ANSI/BHMA Standard:A156.5, 2001, Grade 2. UL Listed, A label, 3 hour.
