Product Details

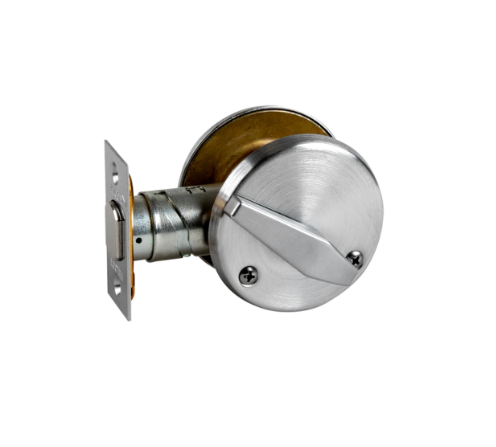

Falcon D251-626 Double thumbturn Deadbolt, Satin Chrome Finish

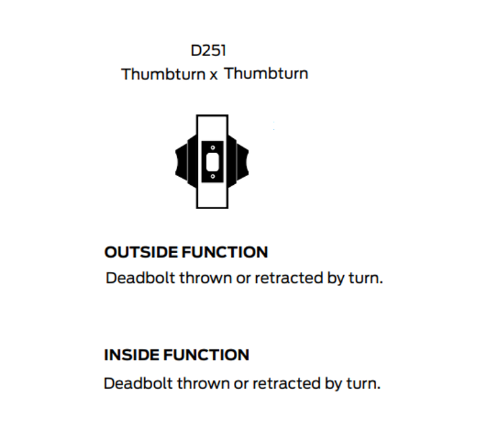

Deadbolt thrown or retracted by turn unit from either side. Bolt automatically deadlocks when fully thrown. Application for shelters.
Door Thickness:1-3/8" to 1-7/8". For thicker doors, available
up to 2-1/4".
Backsets:2-3/8"- 2-3/4" adjustable deadbolt.
Attachment:Locks are solidly attached to the door by 1/4heat-treated steel bolts. These bolts pass through a steel plate (D211, D221 and D241) or the inner cylinder housing (D231) and thread directly into the back of the outer cylinder
housing.
Handing:Non-handed. May be used on right hand or left hand doors swinging in or out.
Cylinders:Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Also available with 7-pin cylinders. Available with 6 or 7-pin interchangeable cores. Furnished with two (2) nickel silver keys standard.
Keyway:Gkeyway standard on conventional cylinders. Also available with
some optional keyways.
Exposed Trim:Wrought brass or bronze reinforced with steel insert.
Deadbolts:Deadbolt locks are furnished with deadbolts which have a full 1" projection. Housed within the deadbolt is a freeturning, 1/4" thick, hardened steel, saw-resistant roller.
Backset:Furnished standard with 2-3/8"- 2-3/4" adjustable backset and 1-1/8" x 2-1/4" faceplate.

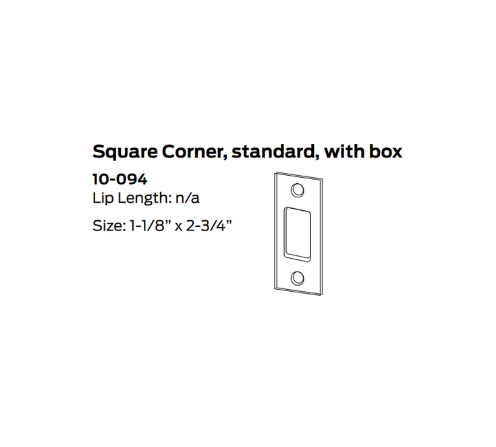

Strikes:2-3/4" x 1-1/8" lipless strike standard.
Screws:Furnished with wood/machine screws for use on wood or metal doors or frames.
ANSI/BHMA Standard:A156.5, 2001, Grade 2. UL Listed, A
label, 3 hour.
Finish:605 - Bright Brass, 626 - Satin Chrome, 613 - Oil Rubbed Bronze
Model:D241P626, D241CP626, D241BD626, D241P605, D241CP605, D241BD605, D241P613
