Falcon D251-626 Double thumbturn Deadbolt, Satin Chrome Finish

About this item

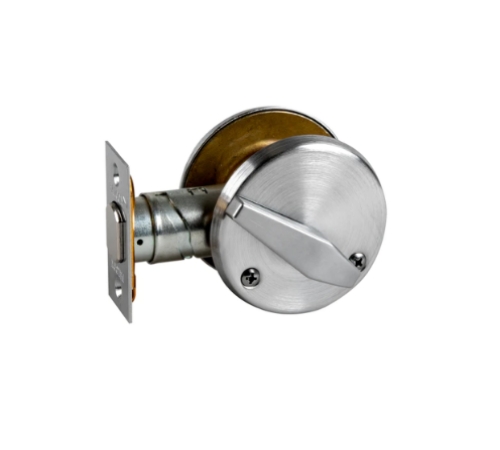

The Falcon D251-626 is a double thumbturn deadbolt from the Falcon D200 Series, finished in 626 Satin Chrome (US26D). The D251 is a non-keyed function: the deadbolt is thrown or retracted by thumbturn from both sides. No cylinder, no key, no key override. ANSI/BHMA A156.5, 2001, Grade 2 certified. ADA compliant thumbturn design. BAA (Buy American Act) compliant. American Locksets is an authorized dormakaba Falcon dealer stocking the D251-626 with same-day shipping and free shipping on orders over $300.

What Is a Double Thumbturn Deadbolt and Who Needs It

A double thumbturn deadbolt, also called a double sided thumbturn deadbolt or non-keyed double deadbolt, has a thumbturn on both the exterior and interior faces. Neither side accepts a key. The deadbolt is thrown or retracted by hand from either side. There is no cylinder and no way to lock or unlock with a key from either side.

This function is specified on doors where both occupants on either side need to be able to operate the deadbolt independently without a key. Storm shelter doors are one of the most common applications listed in the Falcon D251 catalog. Safe rooms, interior security rooms with two-way access control requirements, and residential shelter-in-place applications where no key should be required from either side all represent D251 use cases. The D251 is also specified on doors between connected suites or rooms where the occupants on each side need deadbolt control without key management.

The bolt automatically deadlocks when fully thrown, which means it cannot be pushed back with a shim or credit card from either side once engaged.

Falcon D251-626 Specifications

• SKU: D251-626

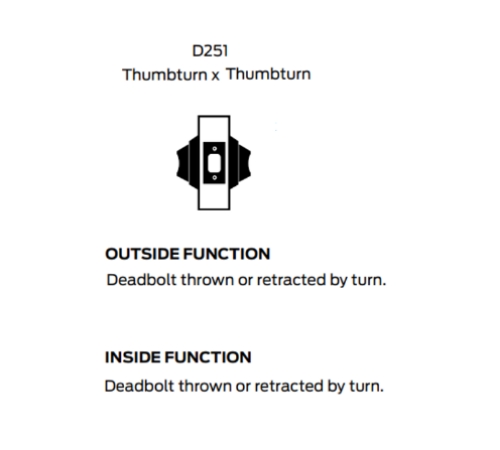

• Function: D251, Thumbturn x Thumbturn. Deadbolt thrown or retracted by thumbturn from either side. Non-keyed, no cylinder. Bolt automatically deadlocks when fully thrown

• Grade: ANSI/BHMA A156.5, 2001, Grade 2

• Finish: 626 Satin Chrome (US26D)

• Bolt: 1 inch housing diameter, 0.82 inch x 0.62 inch x 1 inch throw. Cast zinc with hardened steel anti-saw pin insert. 1/4 inch thick hardened steel saw-resistant roller housed within the bolt

• Faceplate: 1-1/8 inch x 2-1/4 inch with square corners standard

• Backset: 2-3/8 inch to 2-3/4 inch adjustable. Lock-in-place helix design secures the backset setting after adjustment

• Door Thickness: 1-3/8 inch to 1-7/8 inch standard, to 2-1/4 inch with conventional cylinder housing

• Handing: Non-handed. Works on right-hand and left-hand doors swinging in or out

• Trim Ring: 1 inch wrought brass or bronze, reinforced with steel security insert. Free-spinning and tapered to resist wrenching and prying attacks

• Security Shield: Integrated shield protects bolt from ice-pick attack through the door

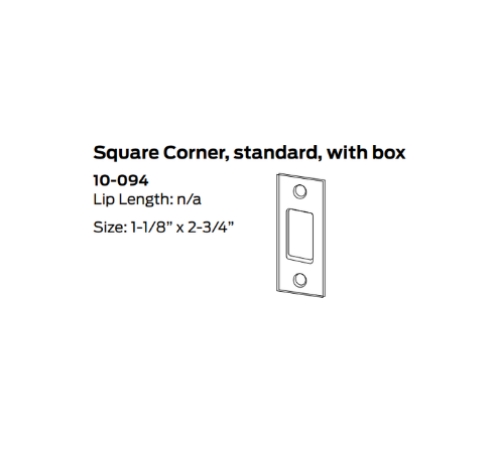

• Strike: 1-1/8 inch x 2-3/4 inch lipless with square corners, standard. Optional ANSI, T-strike, full lip, round corner, and security strike available

• Reinforcement: Metal dustbox reinforcer with three 3-inch screws for wood door frame protection against kick-in attacks

• Attachment: Lock body solidly attached through door by 1/4 inch heat-treated steel bolts

• UL: Available UL 10C 3-hour fire rated options (as auxiliary locks). Letter F and UL symbol on latch front indicate listing

• Accessibility: ADA compliant thumbturn design

• BAA: Buy American Act compliant
