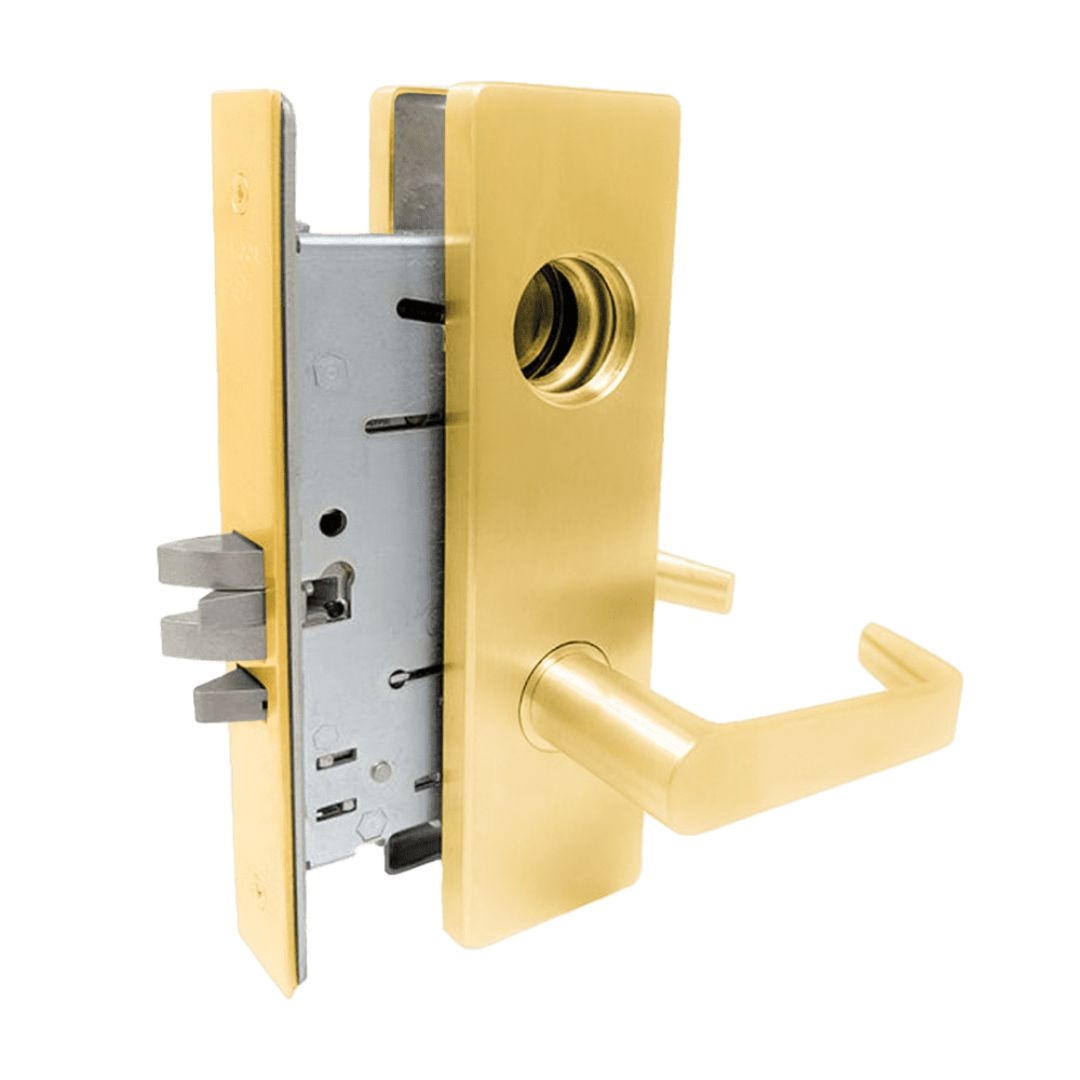

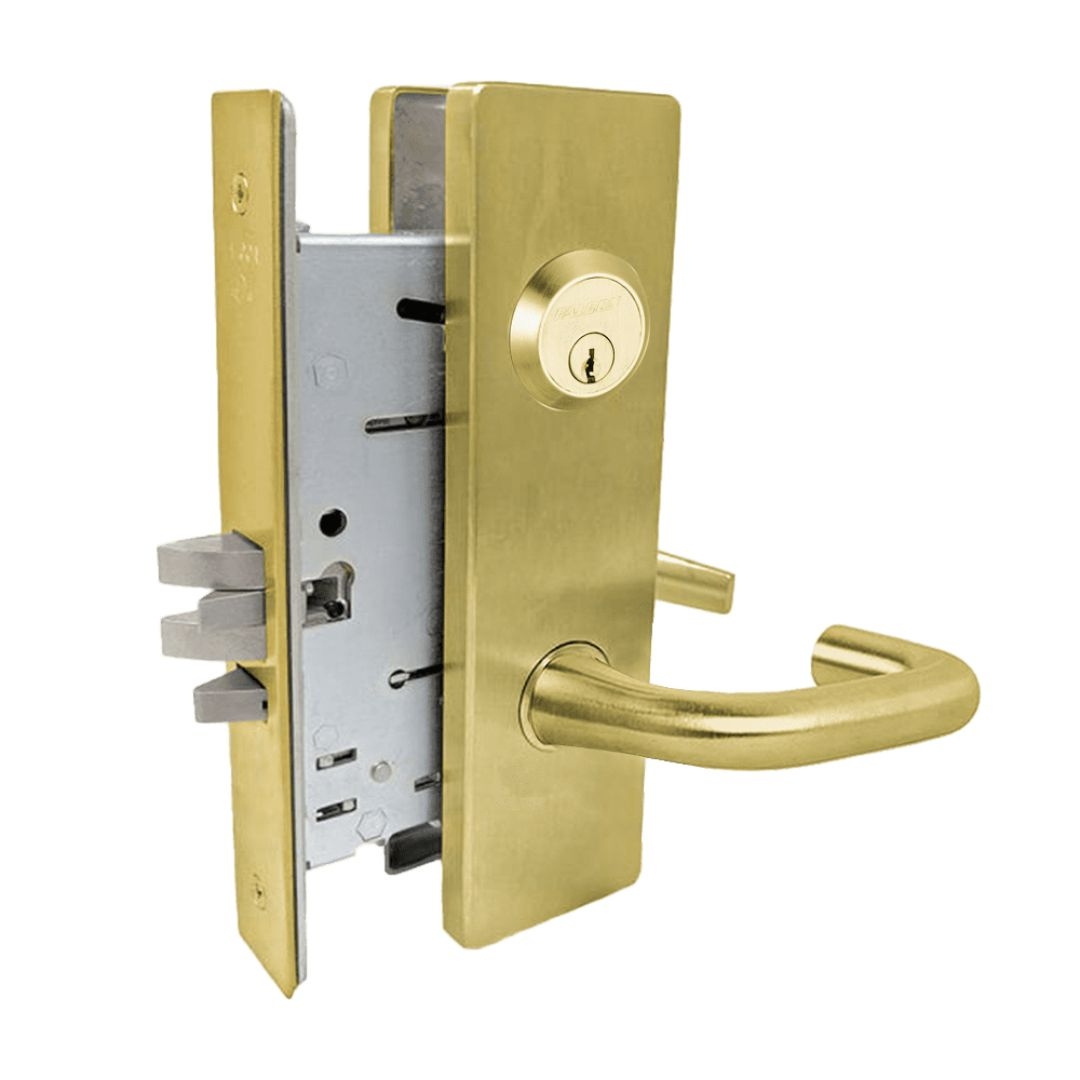

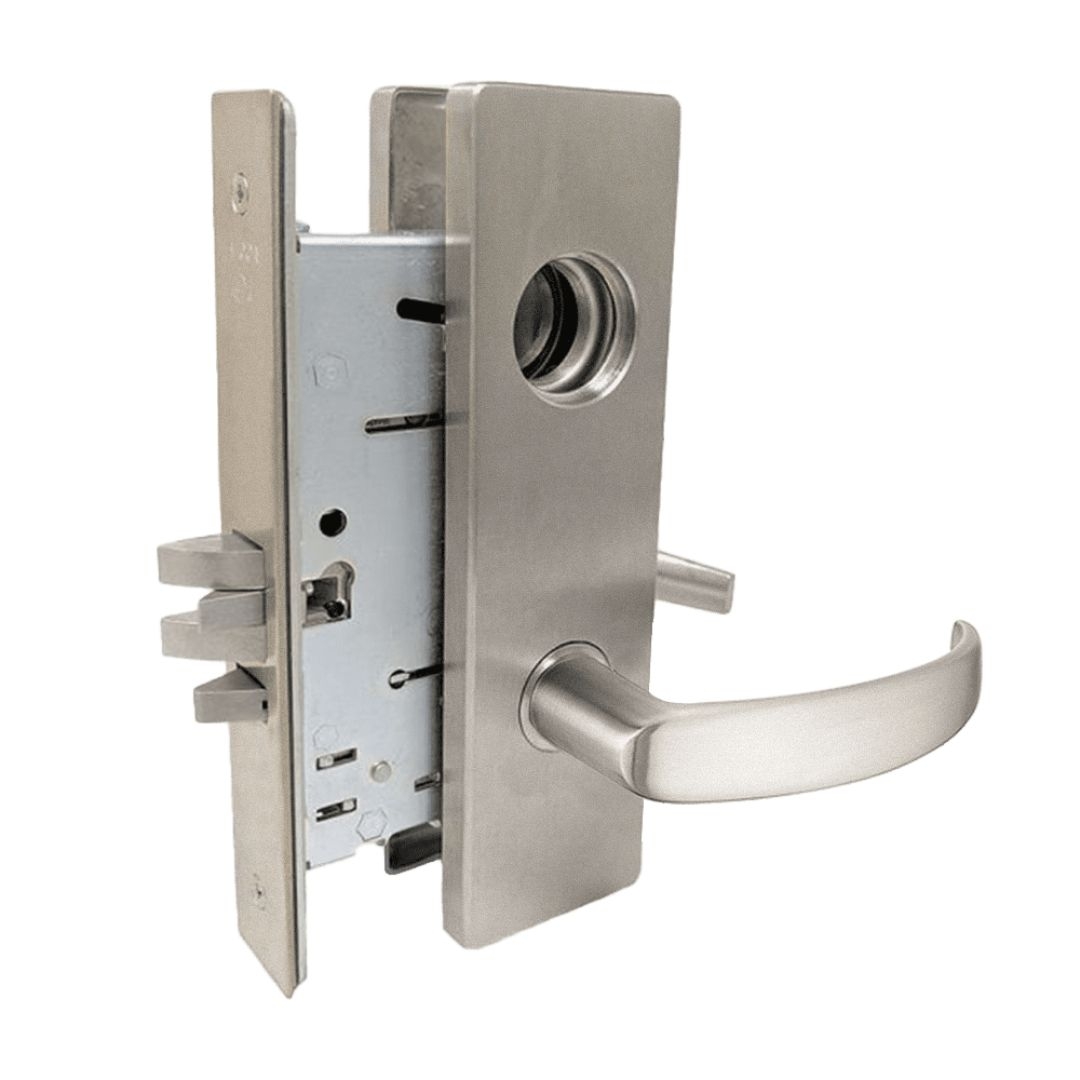

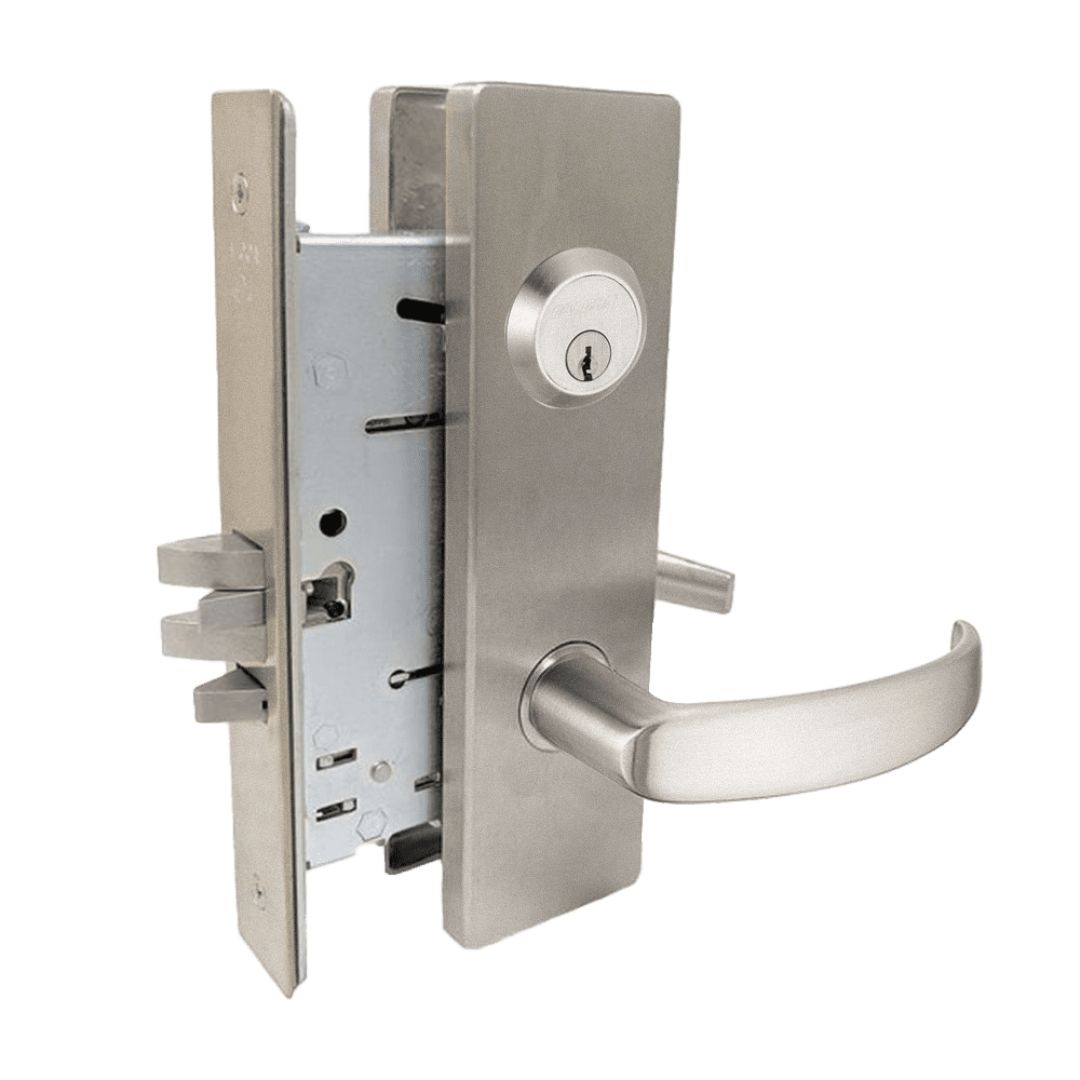

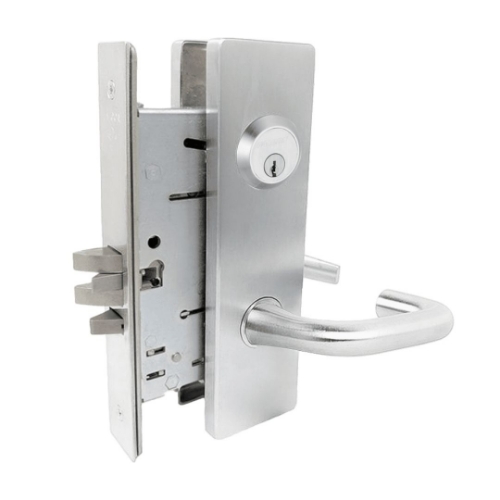

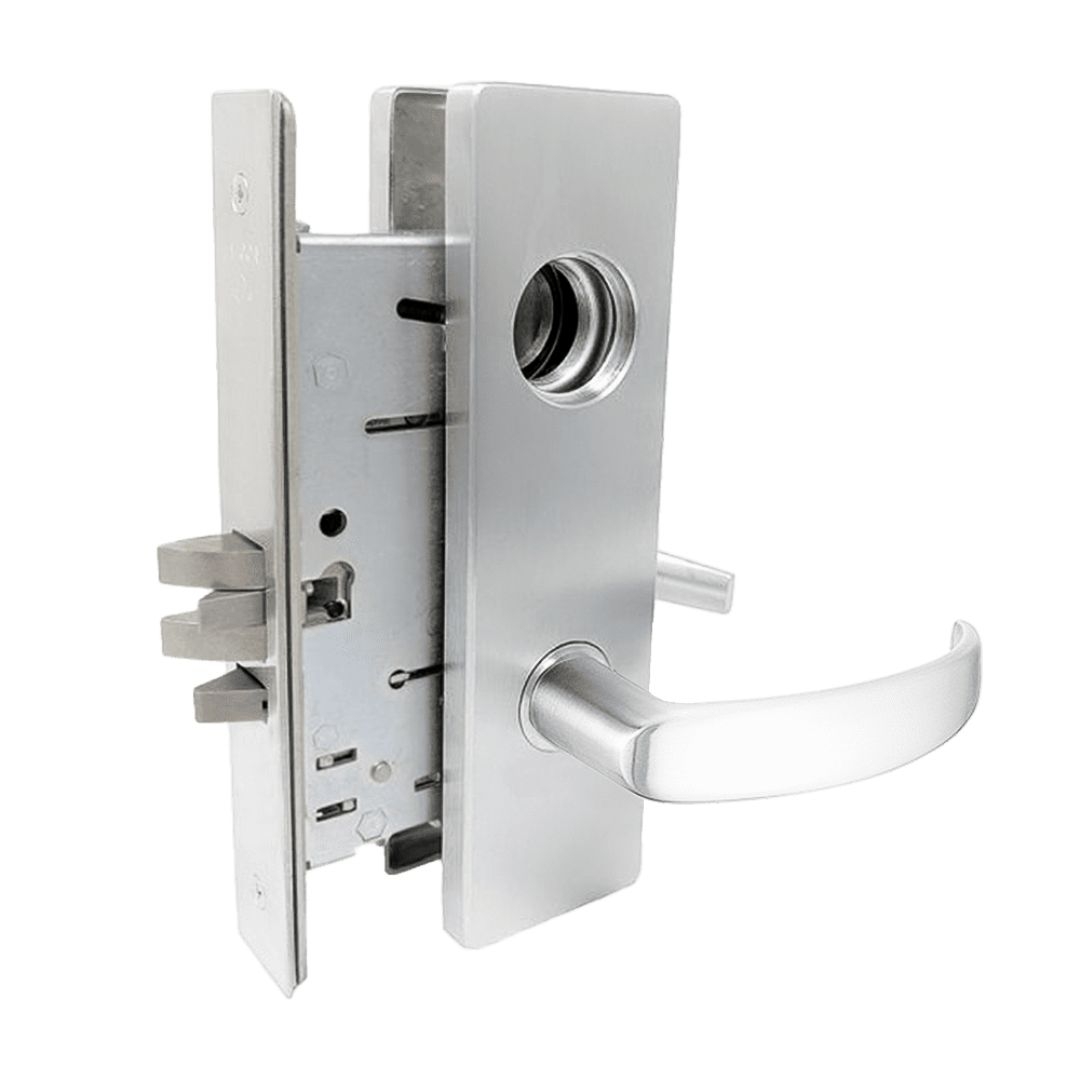

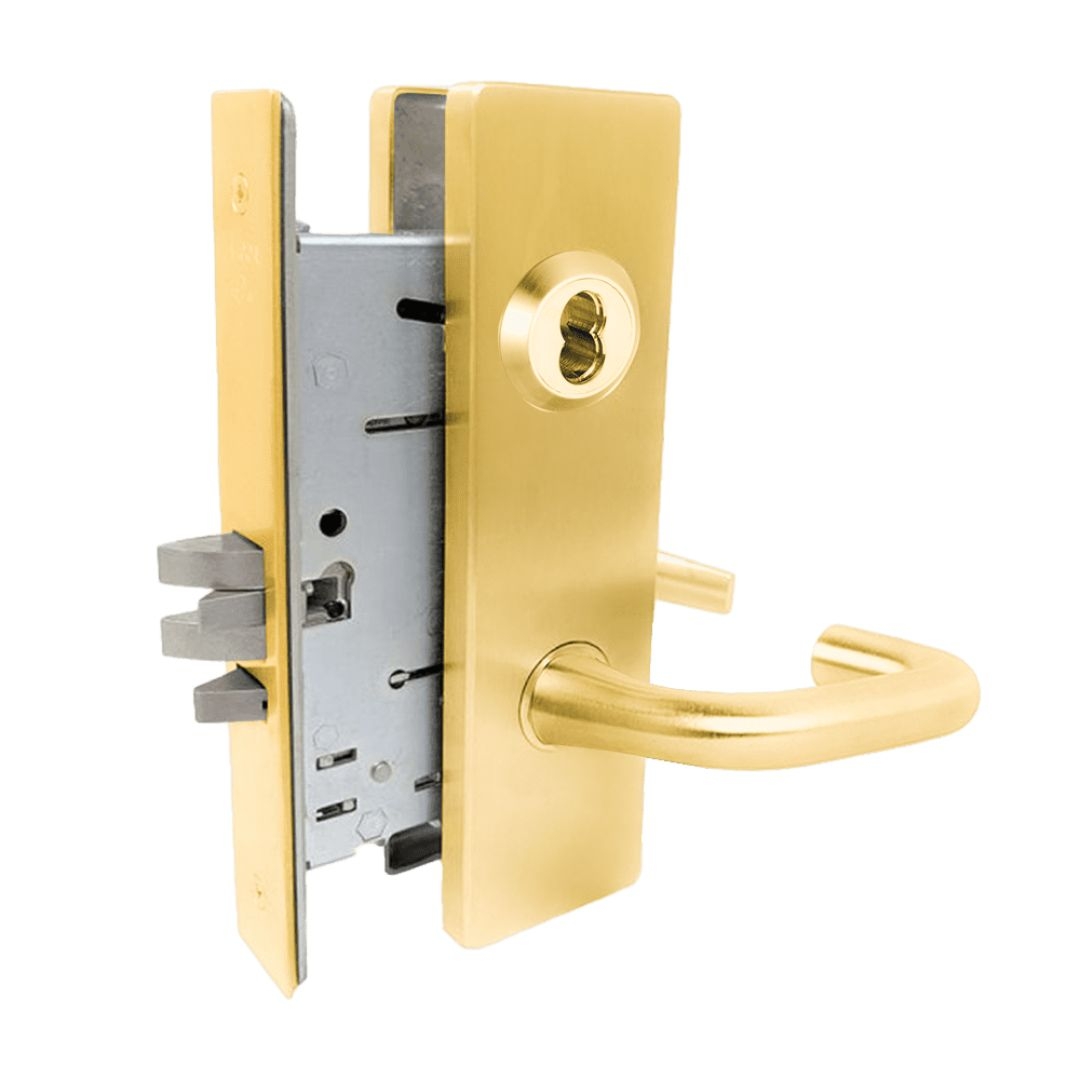

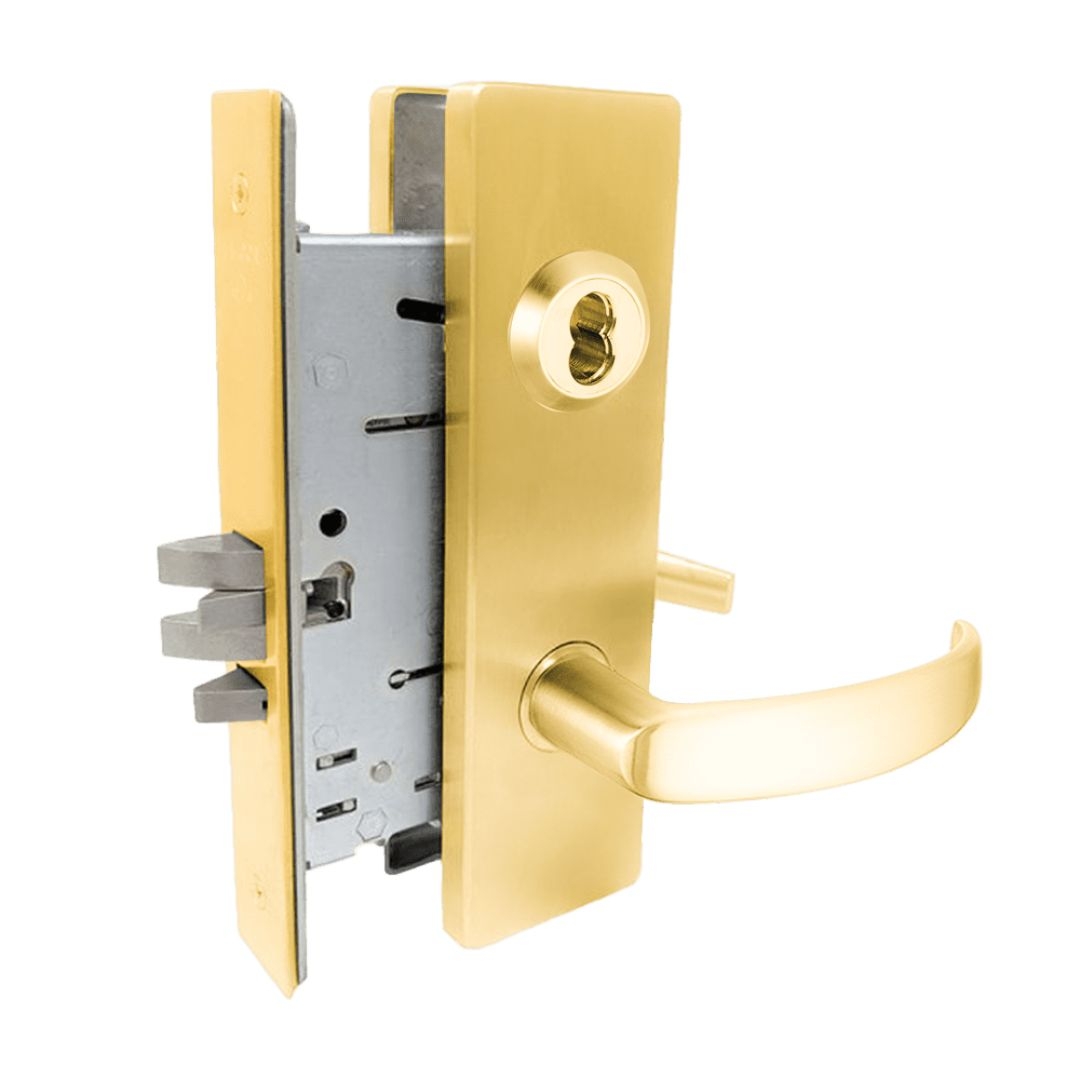

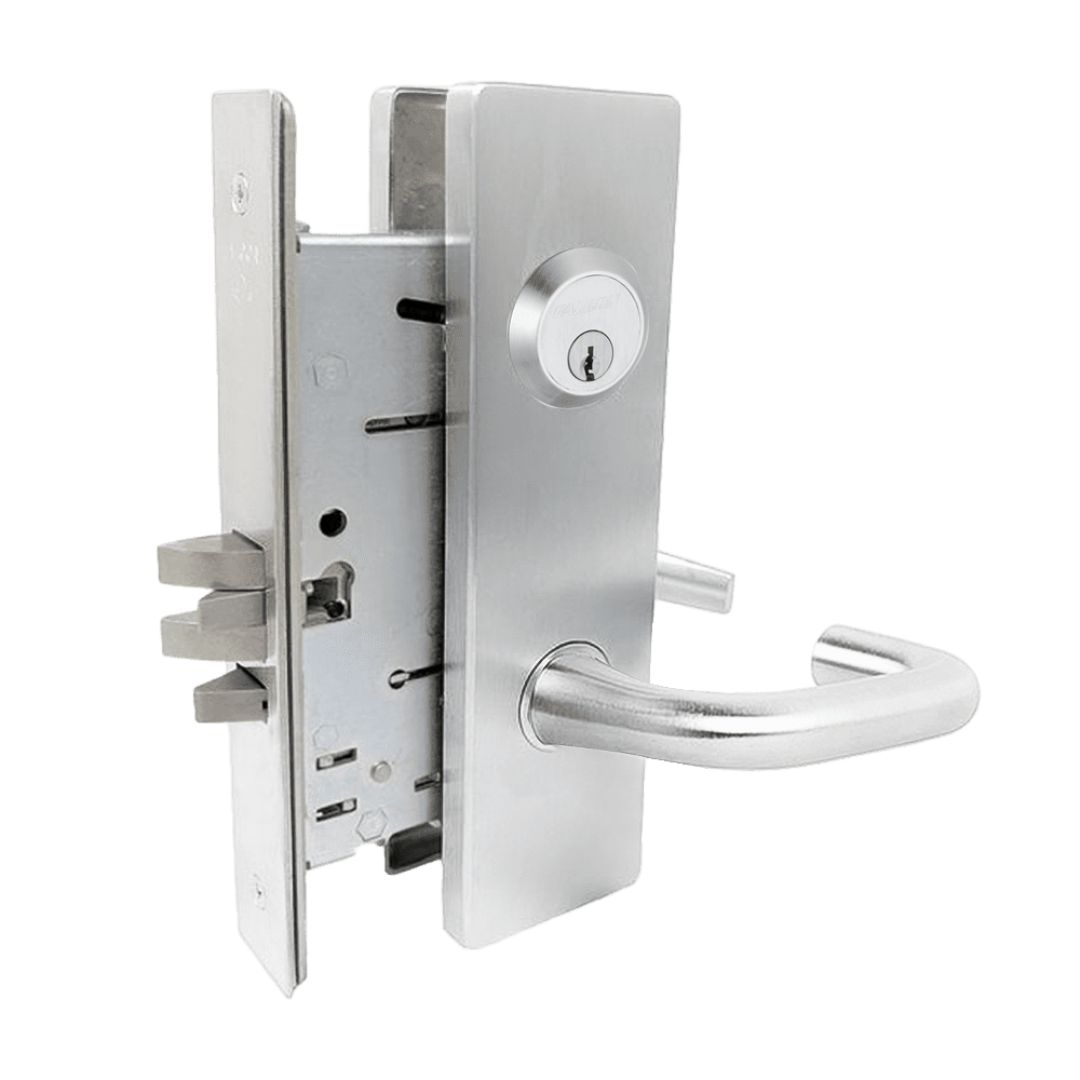

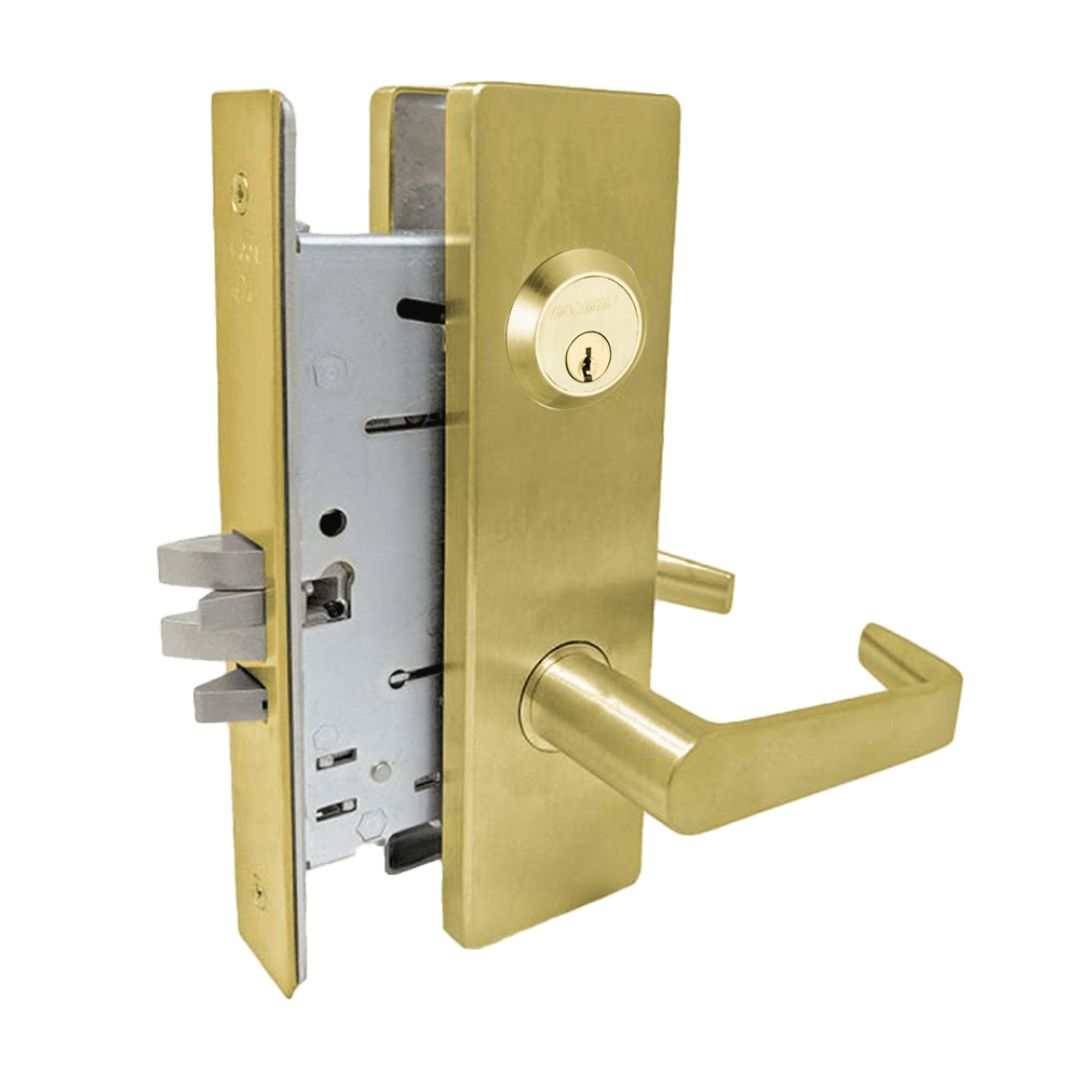

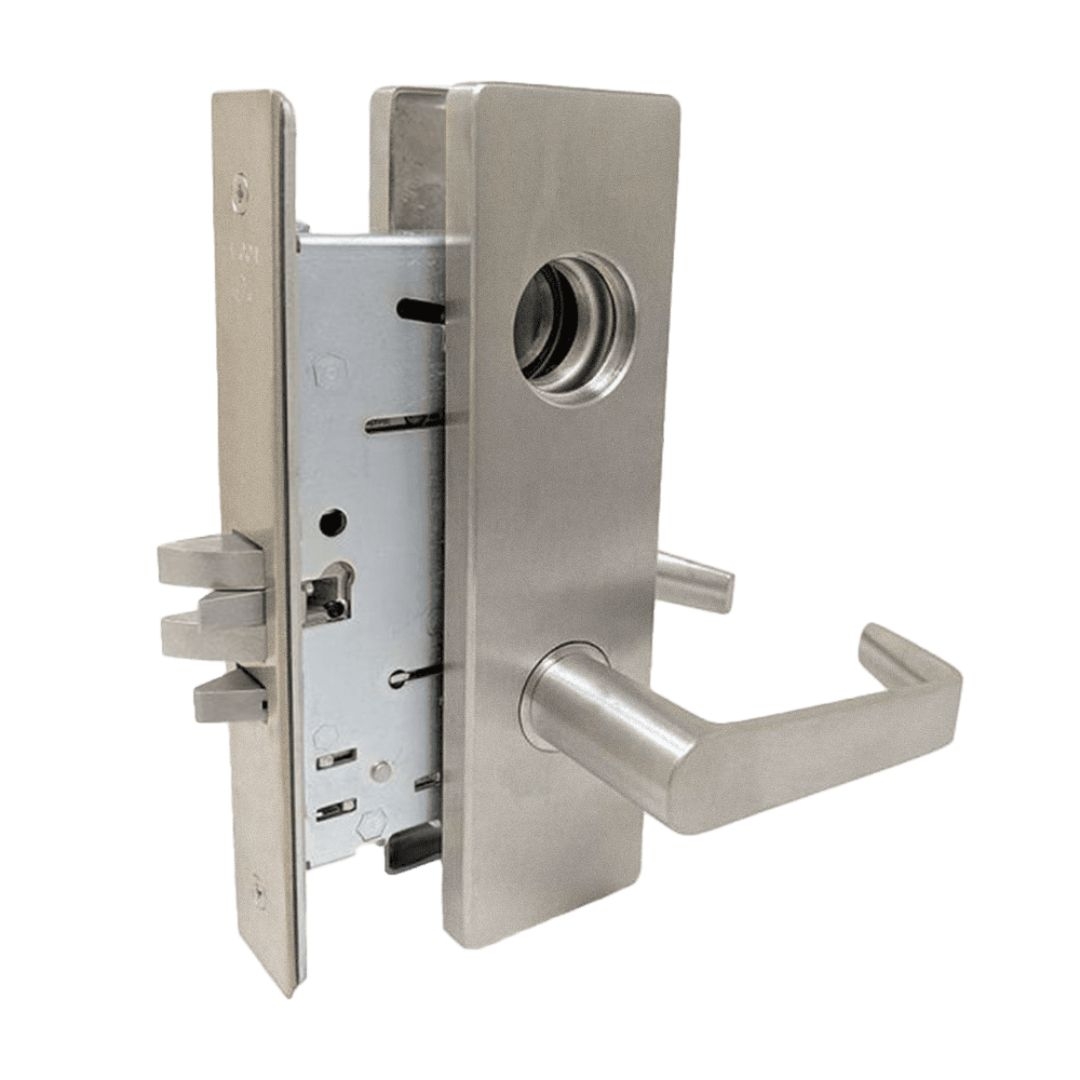

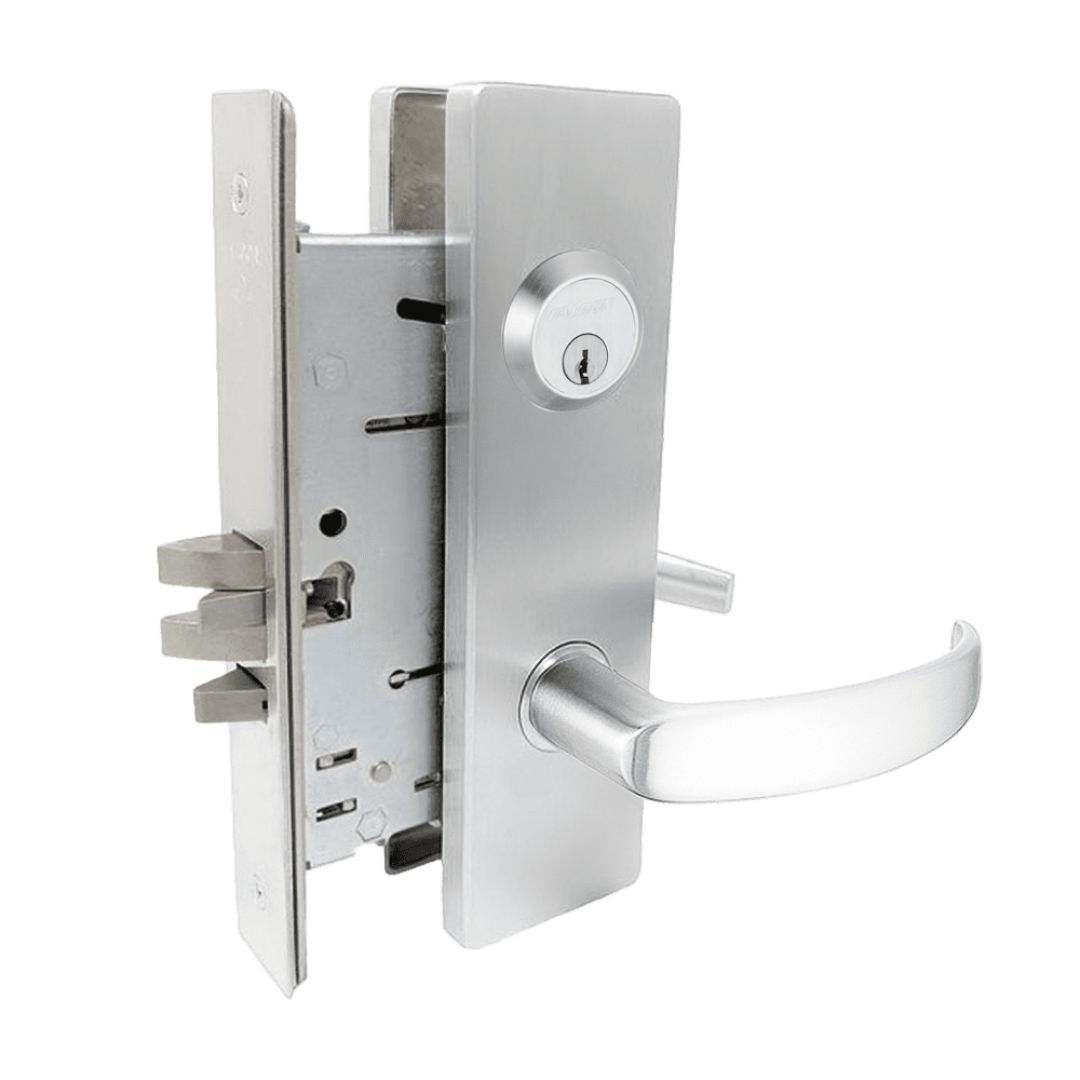

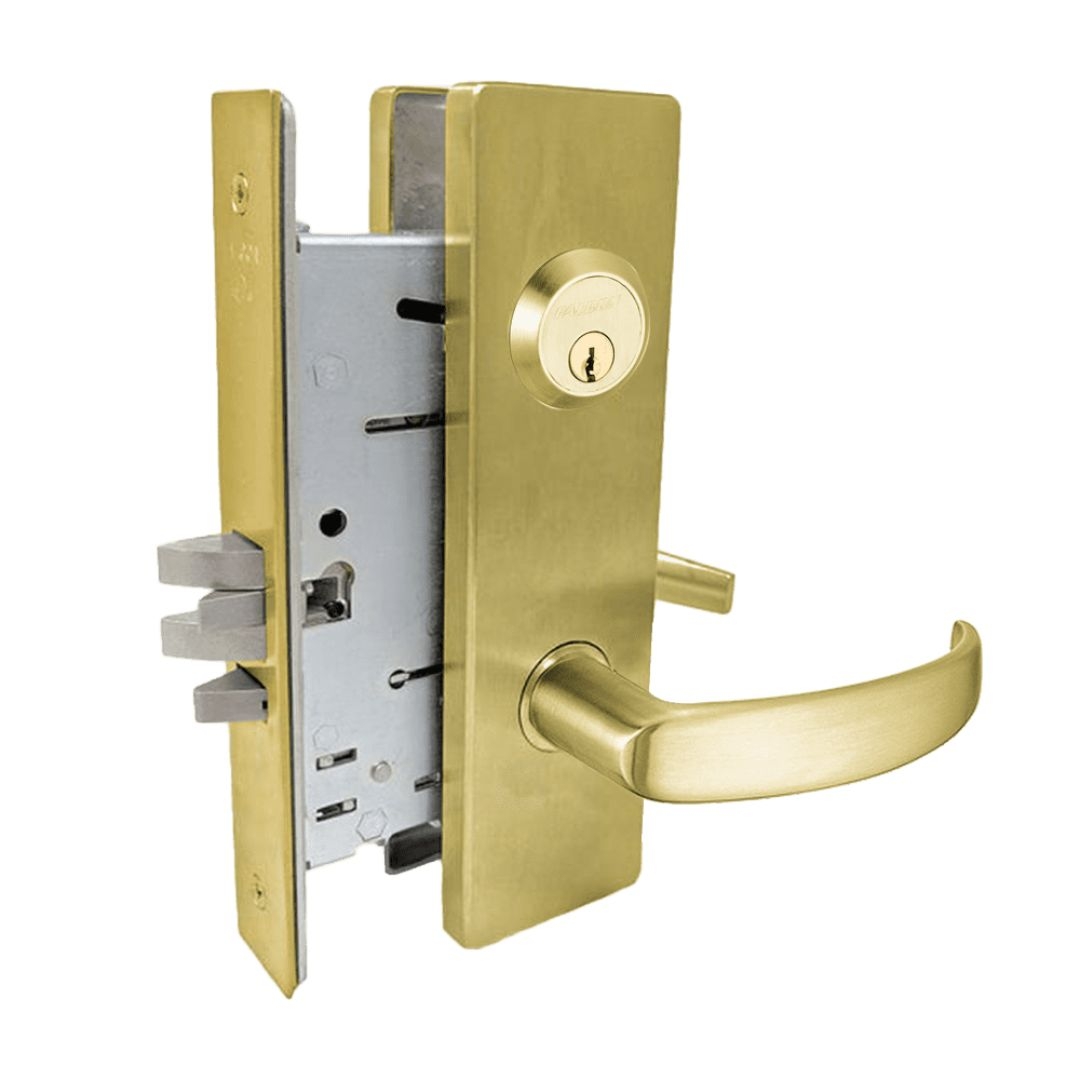

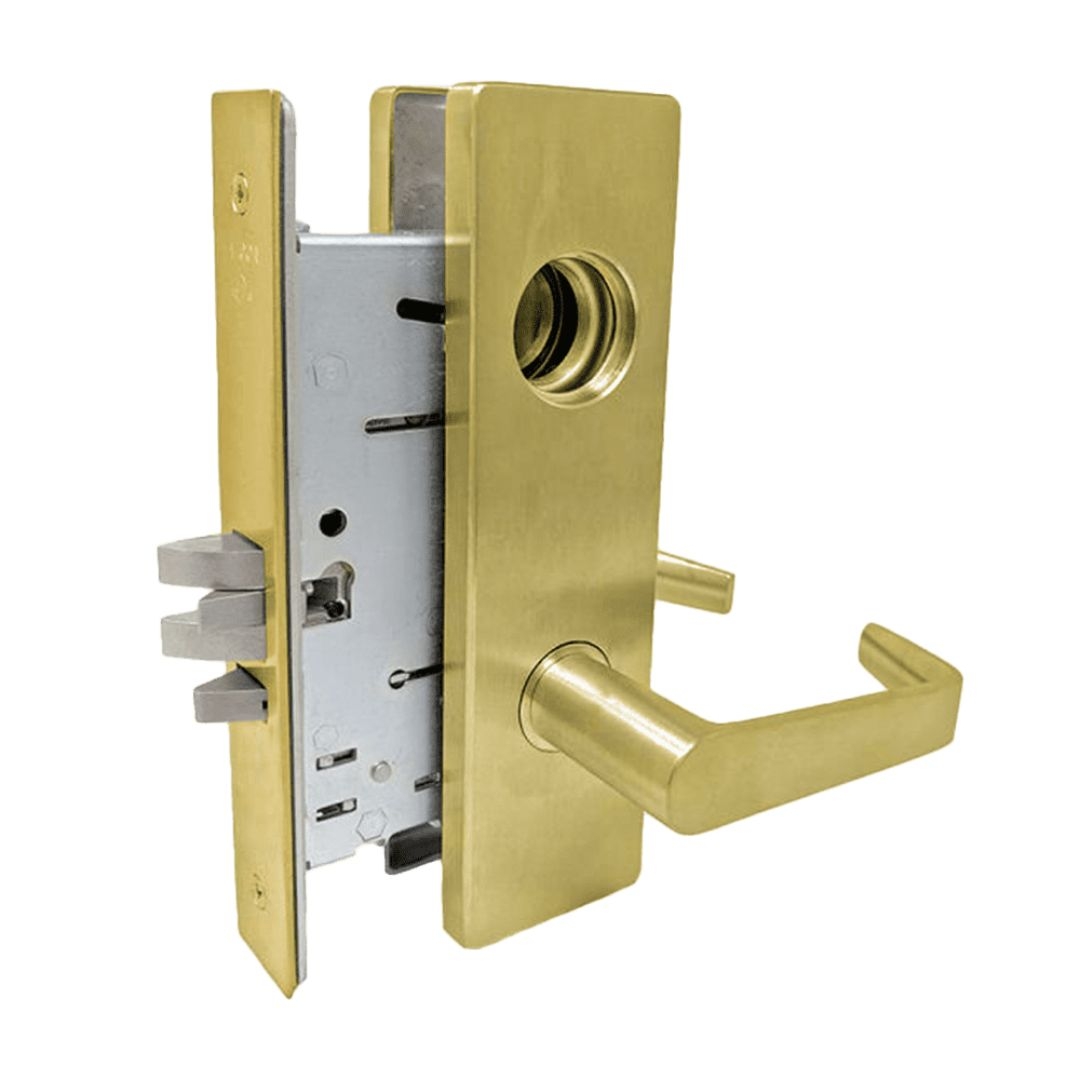

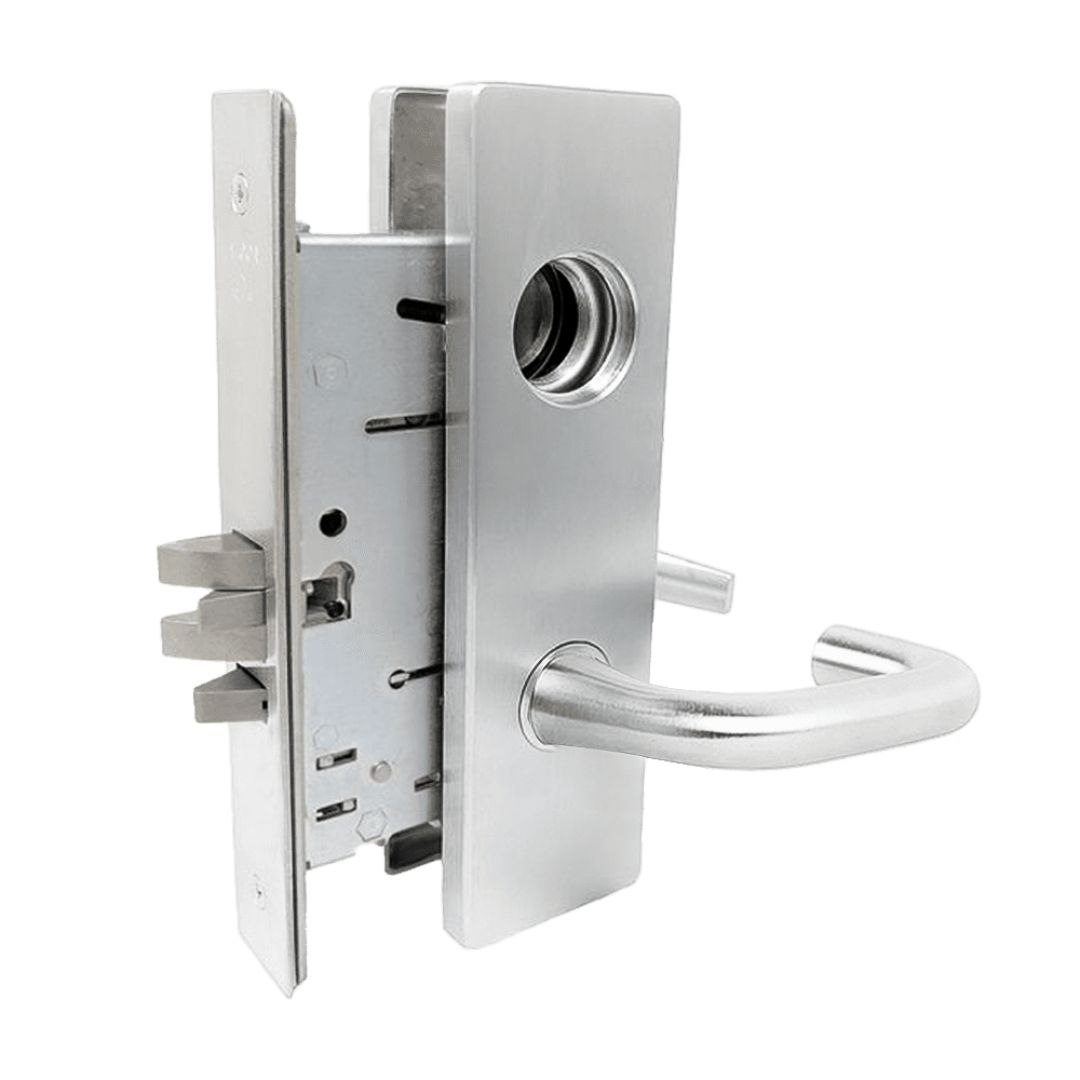

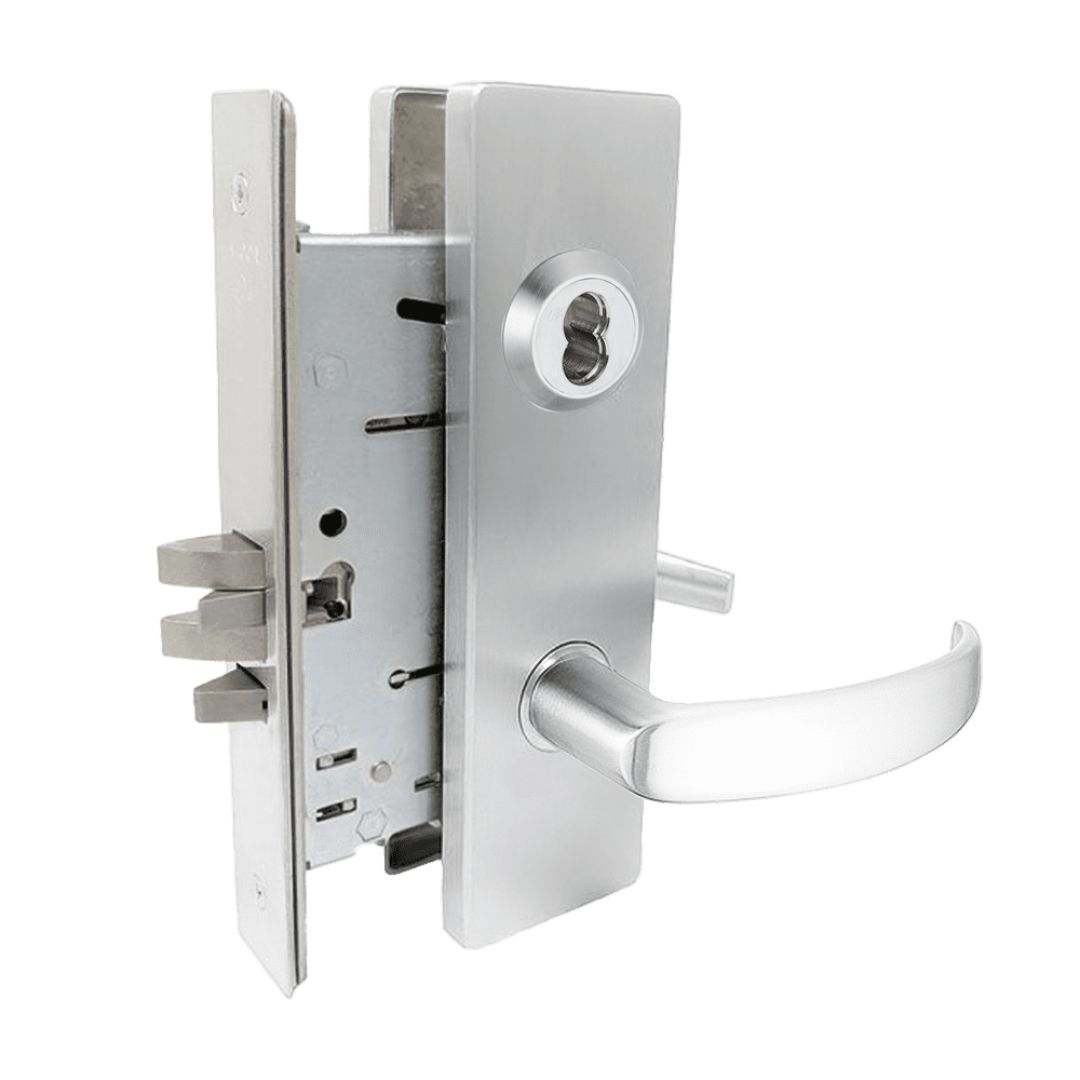

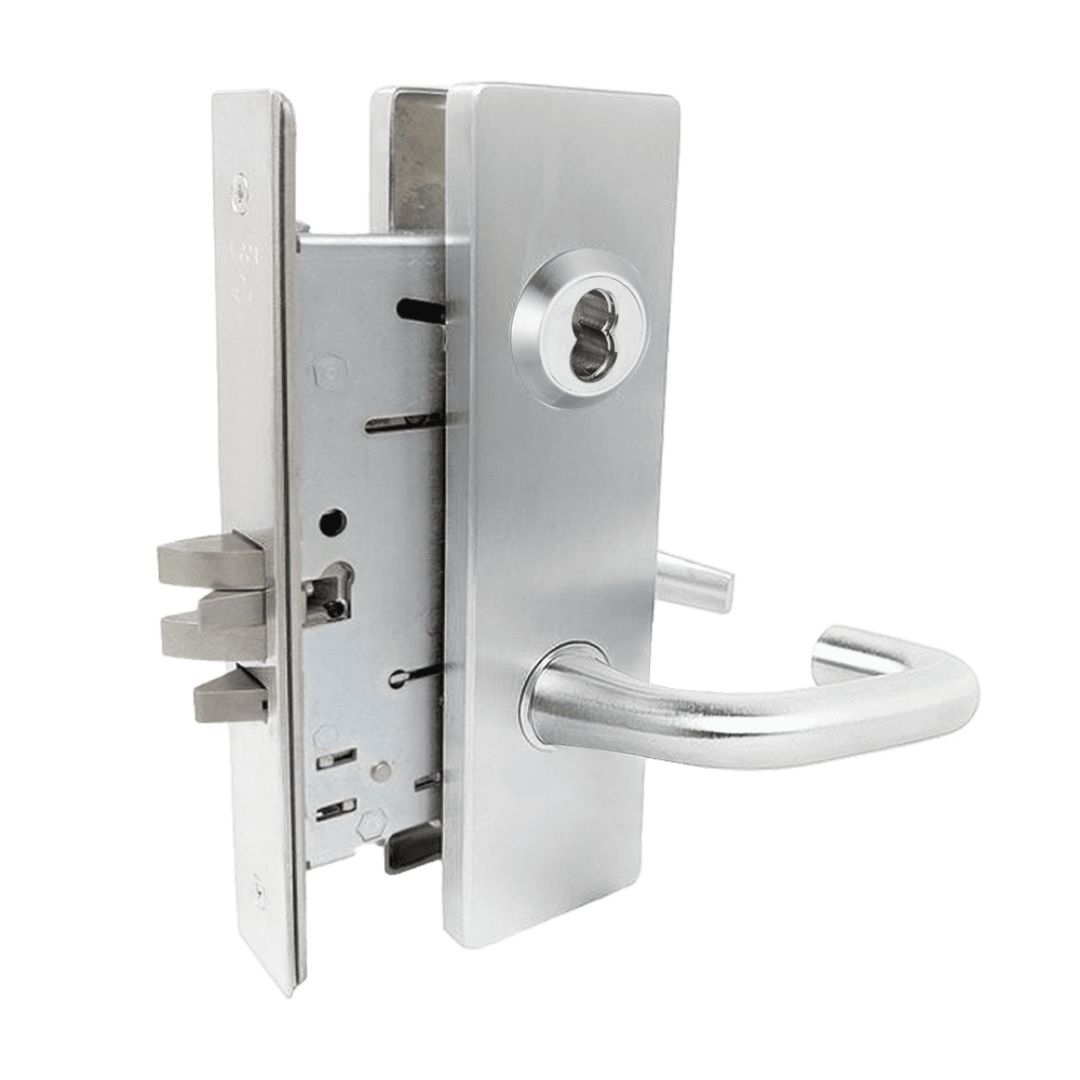

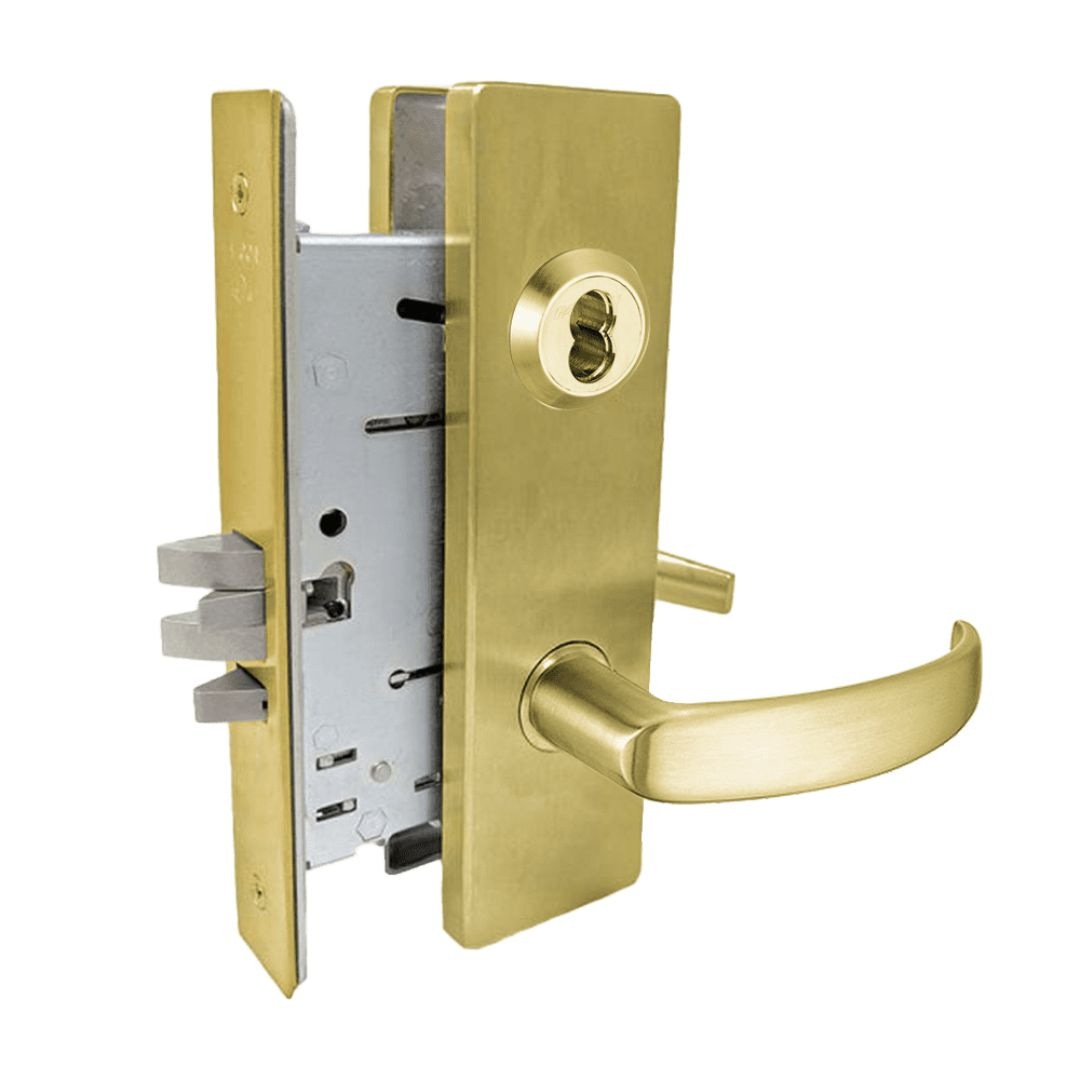

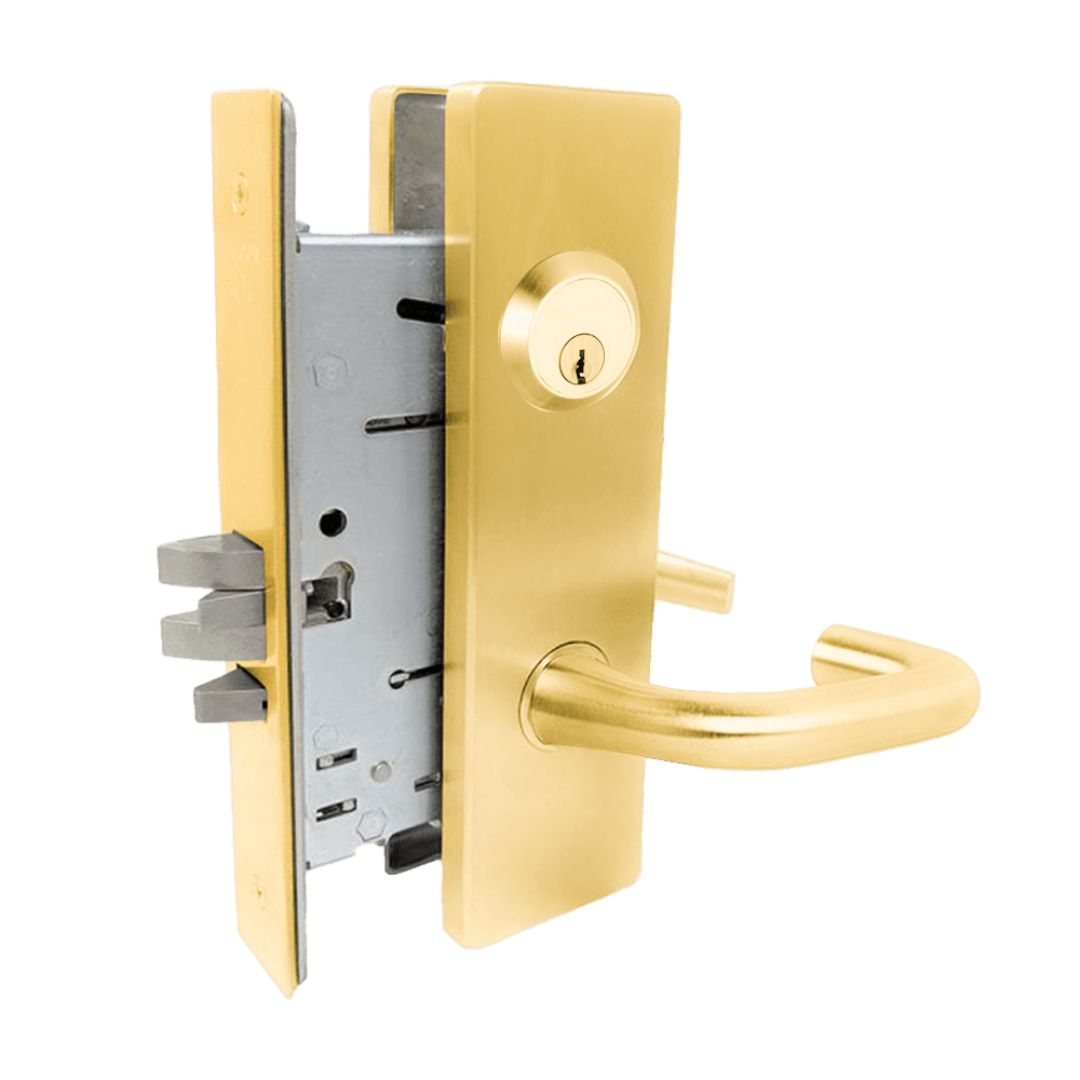

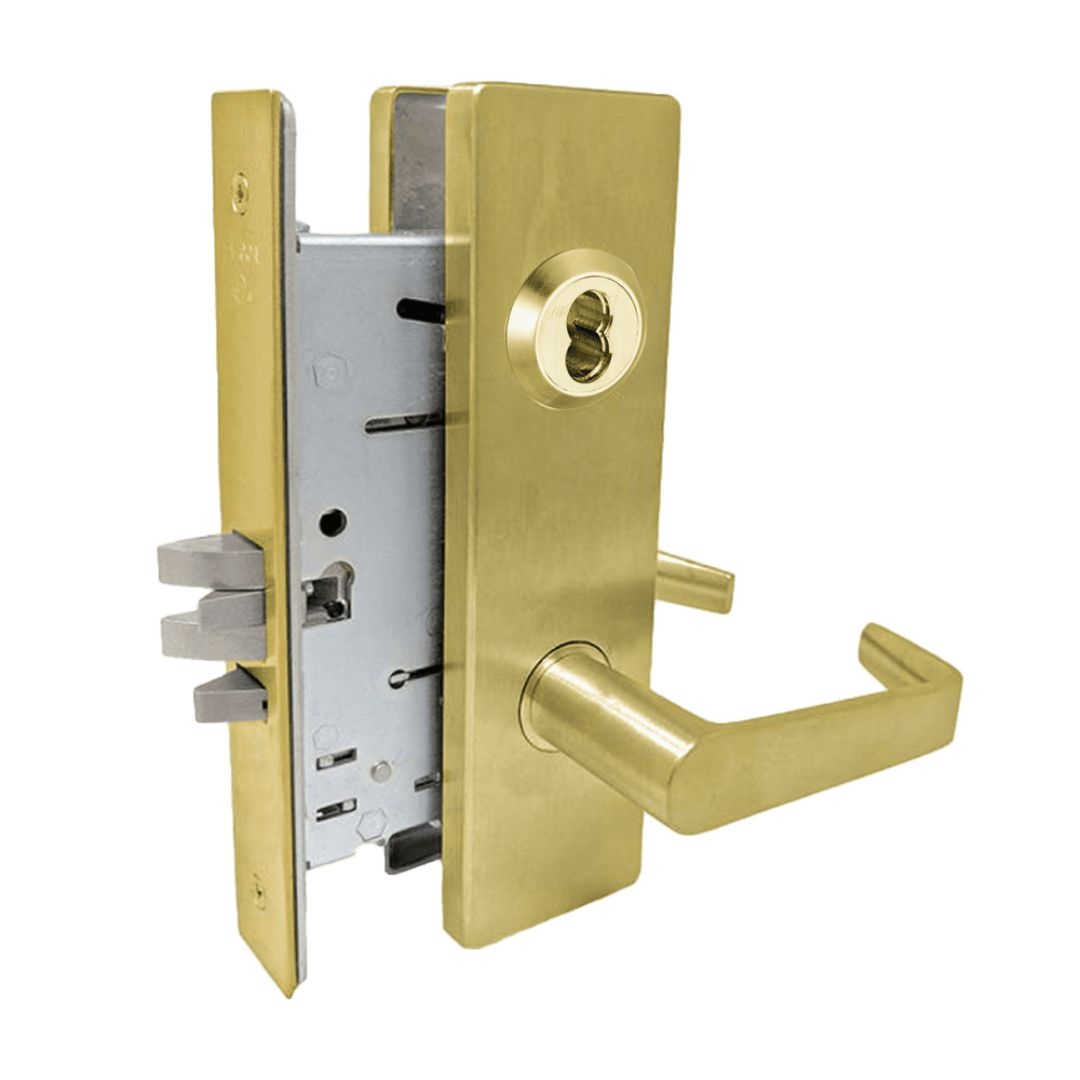

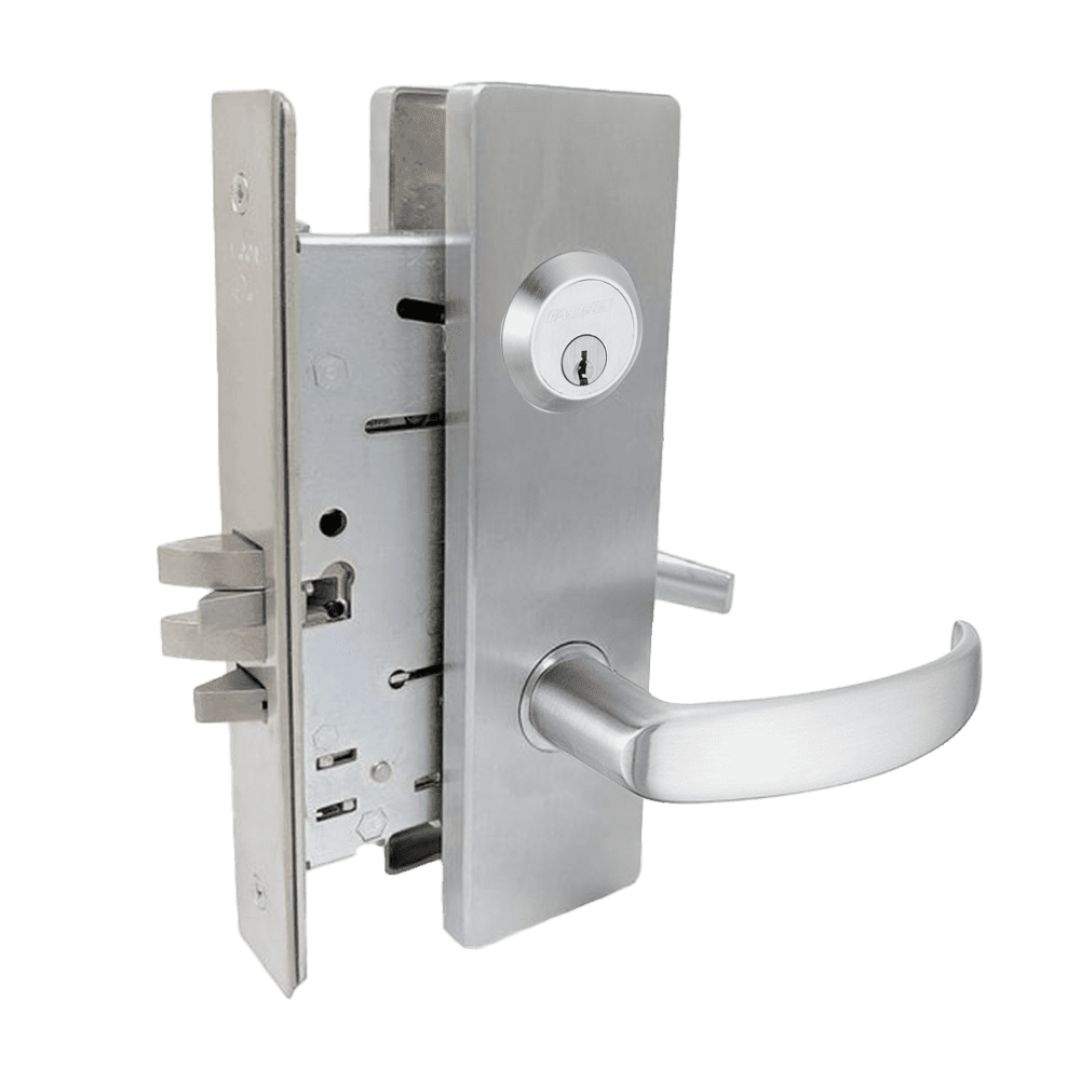

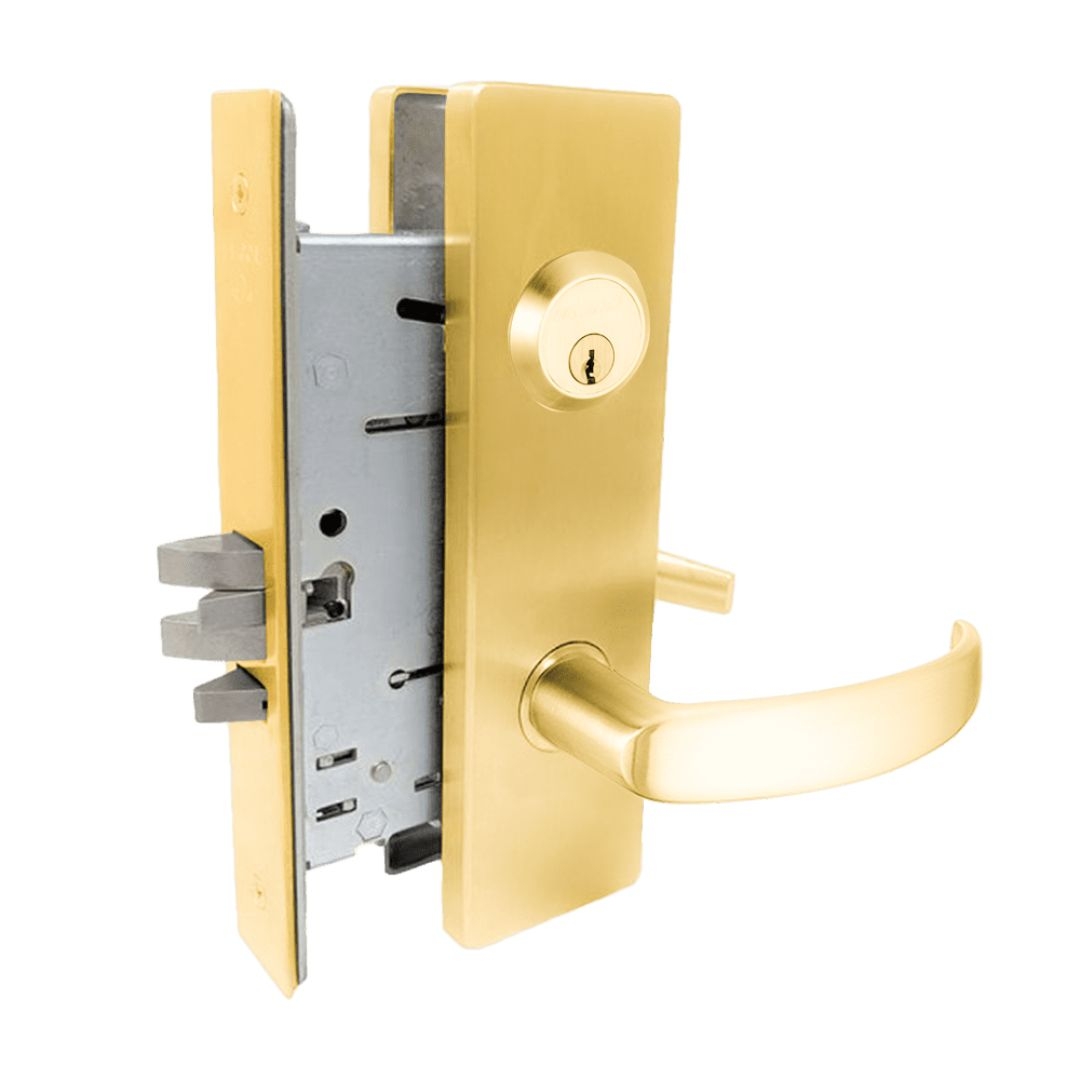

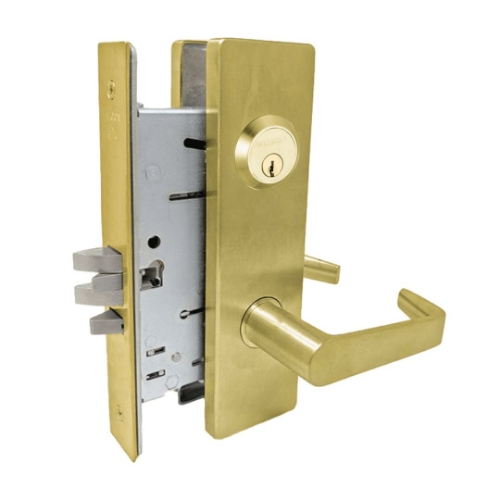

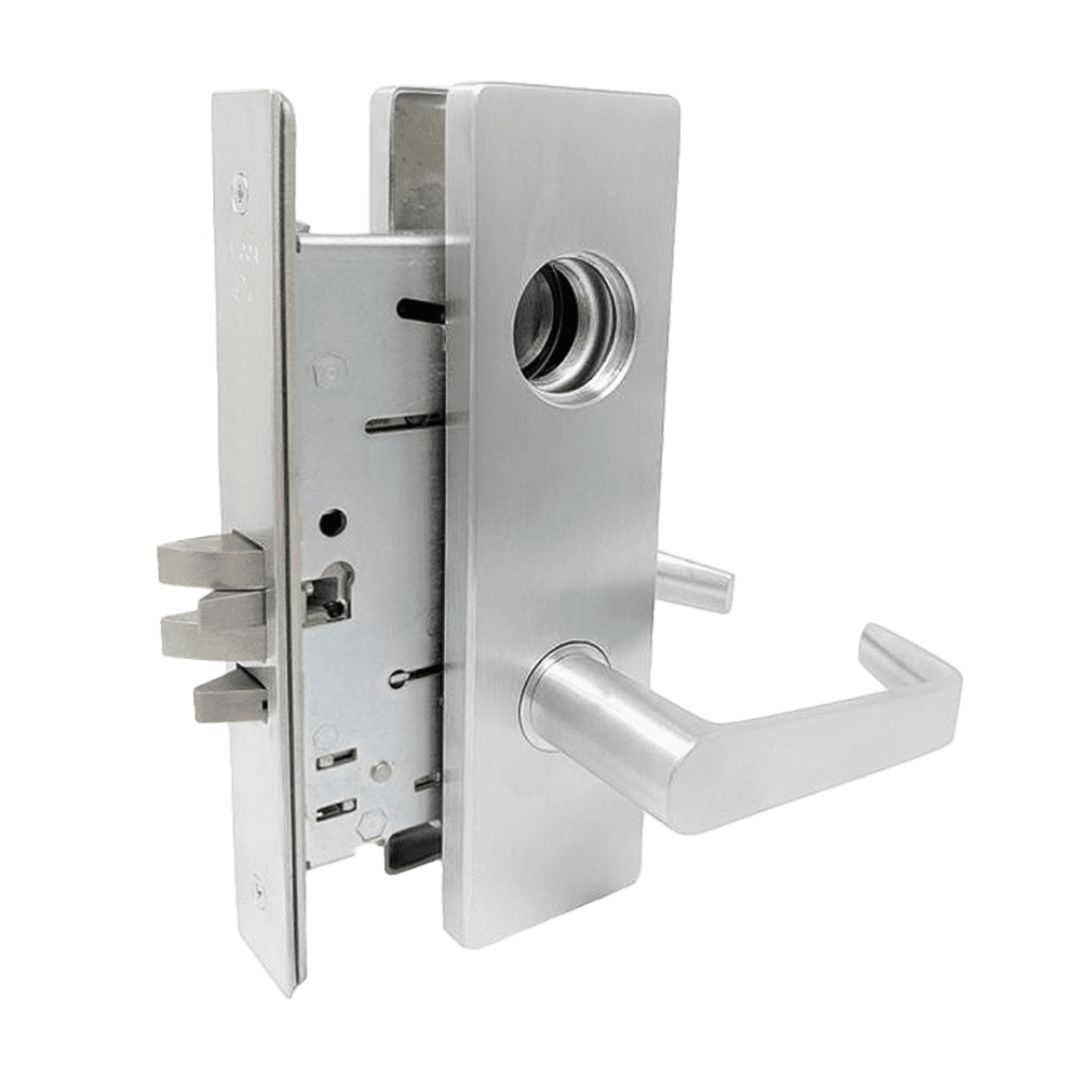

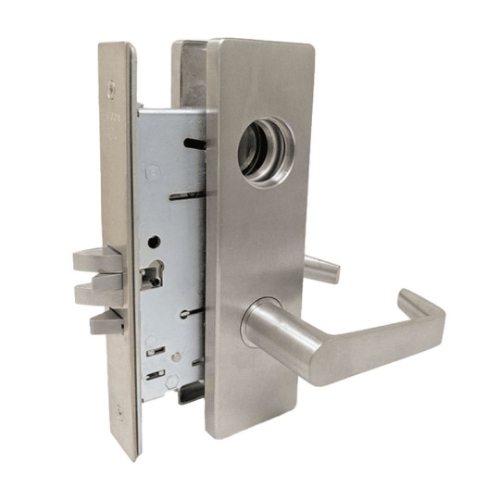

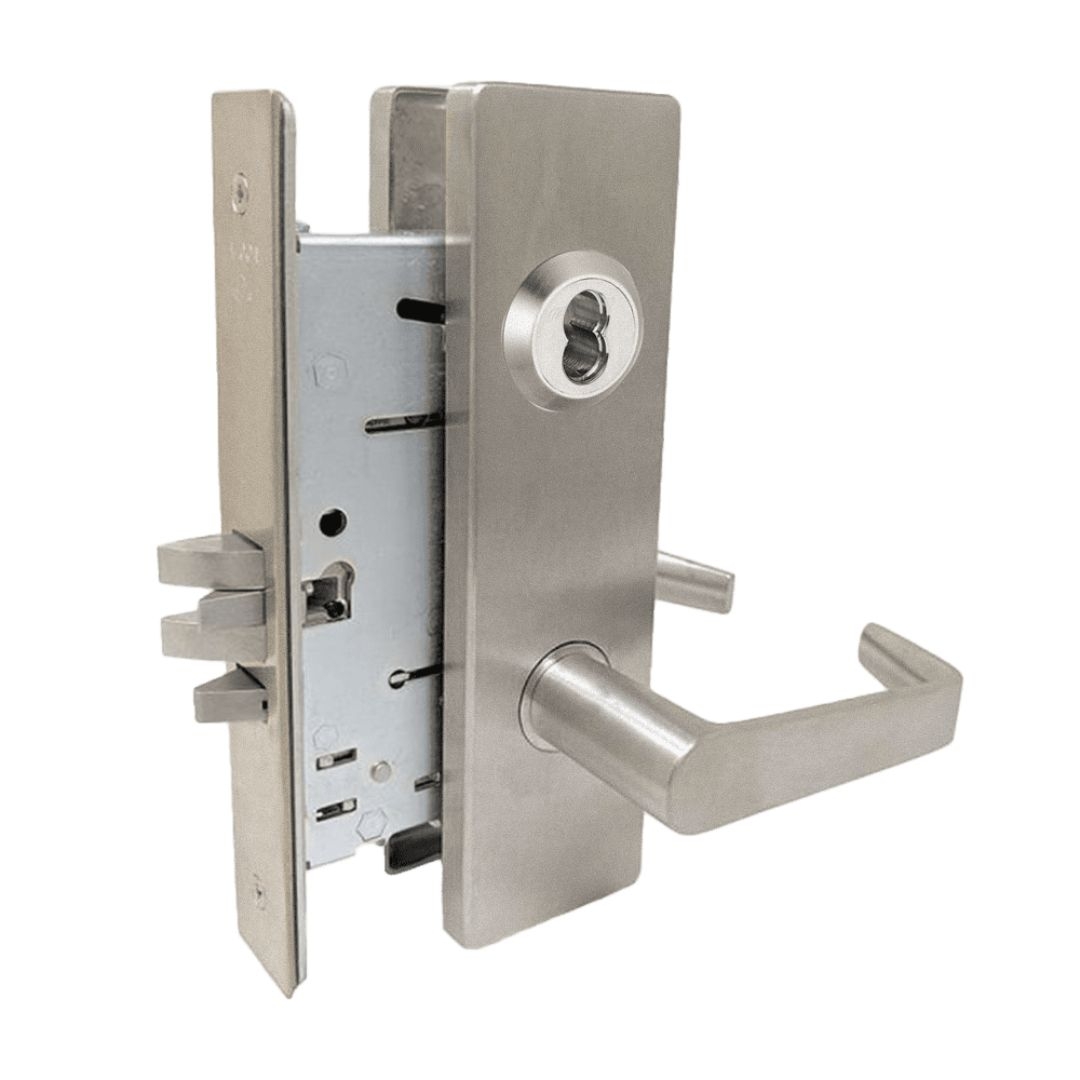

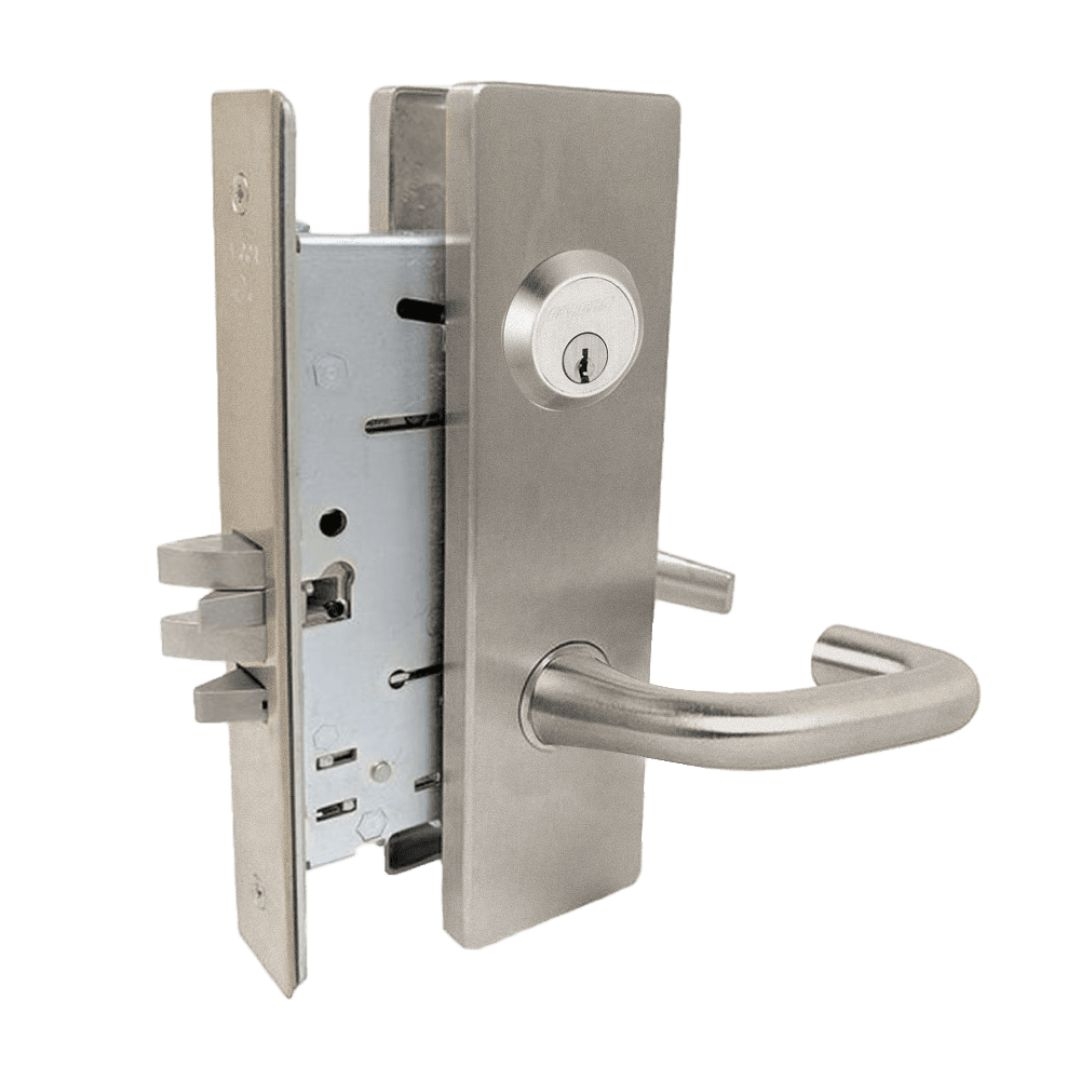

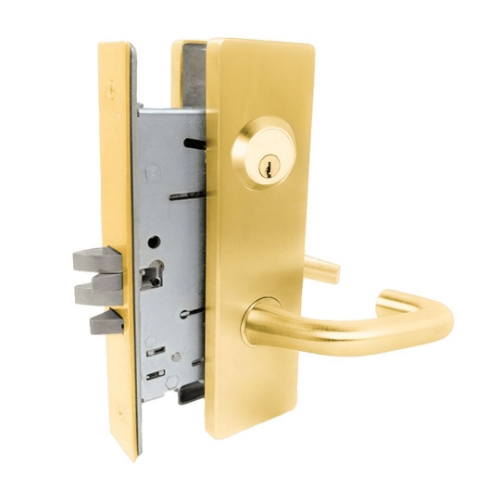

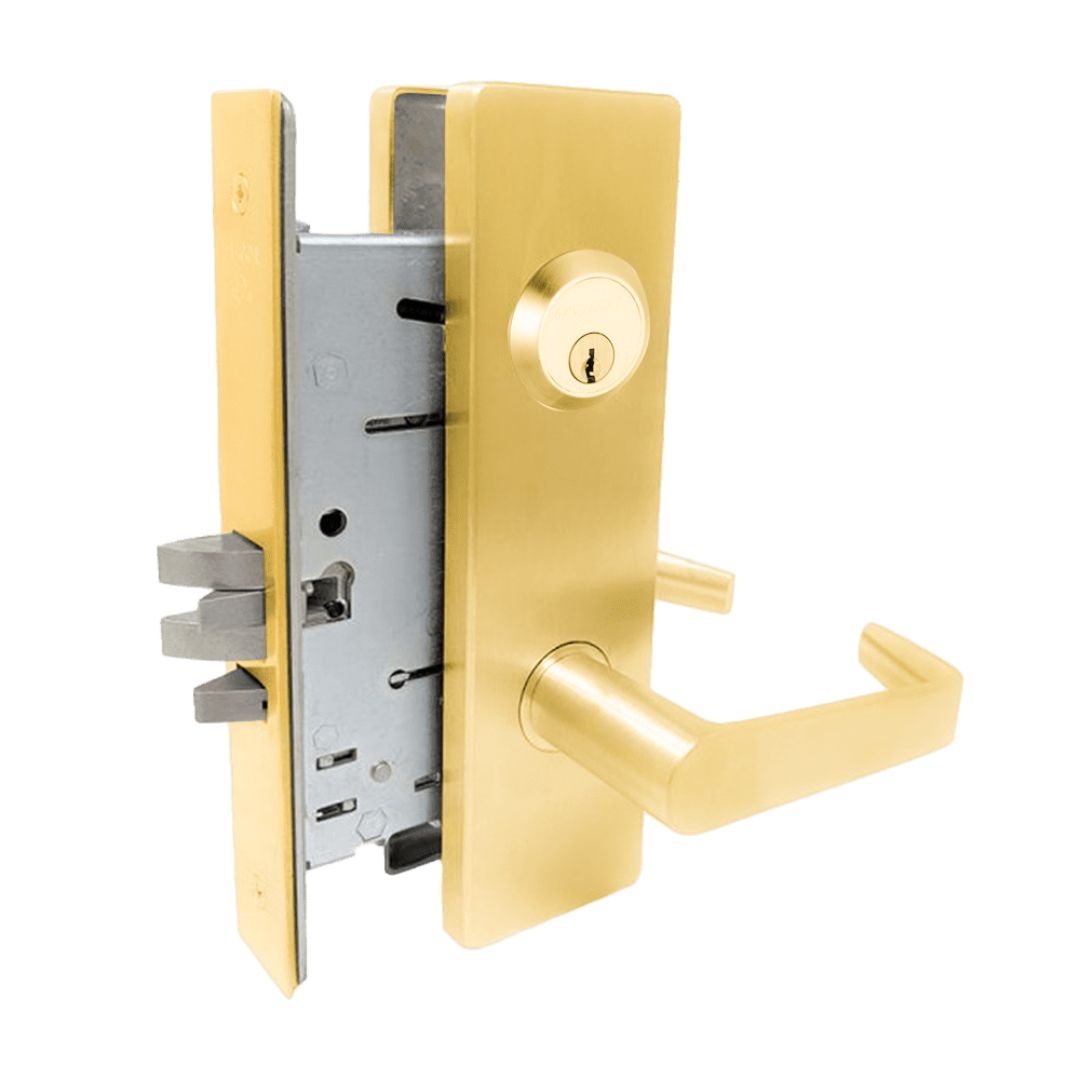

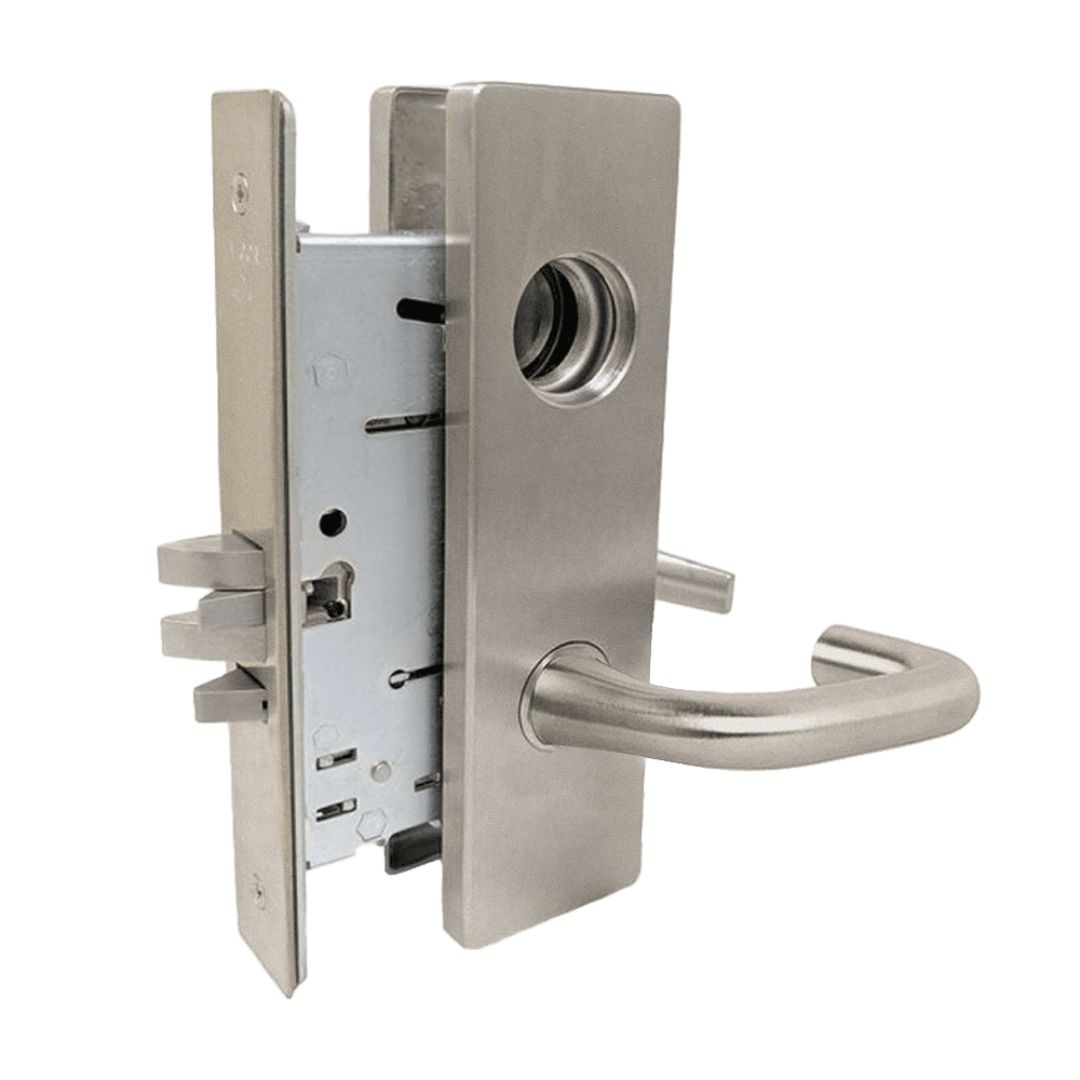

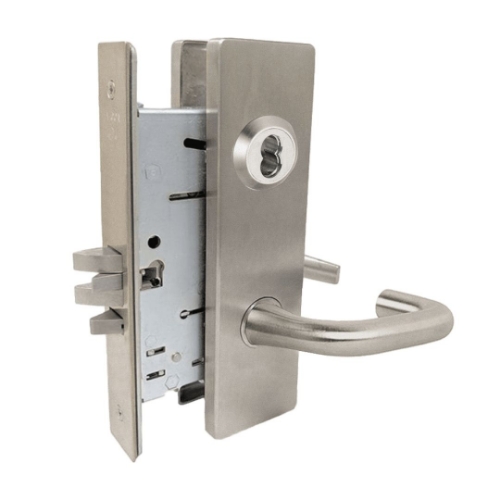

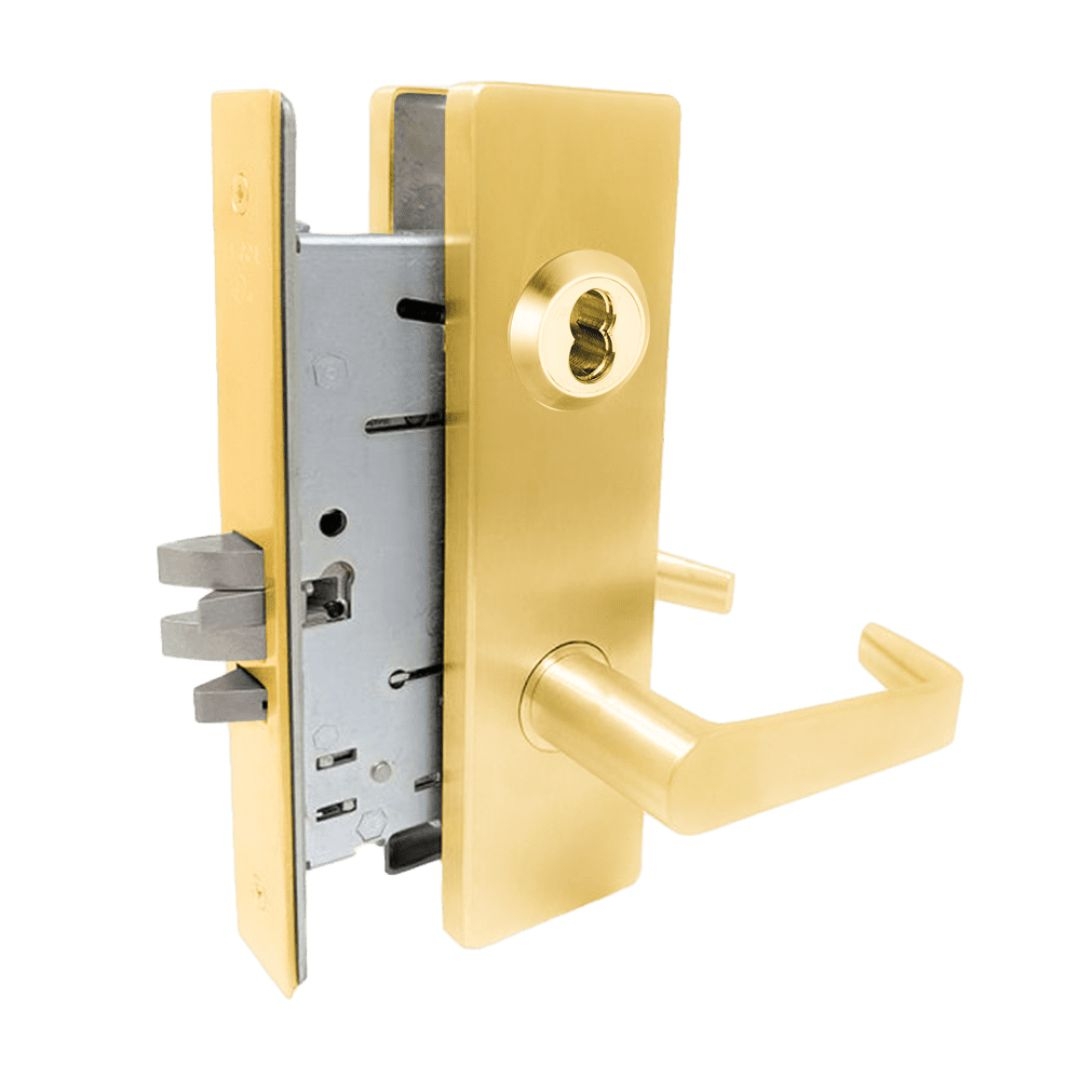

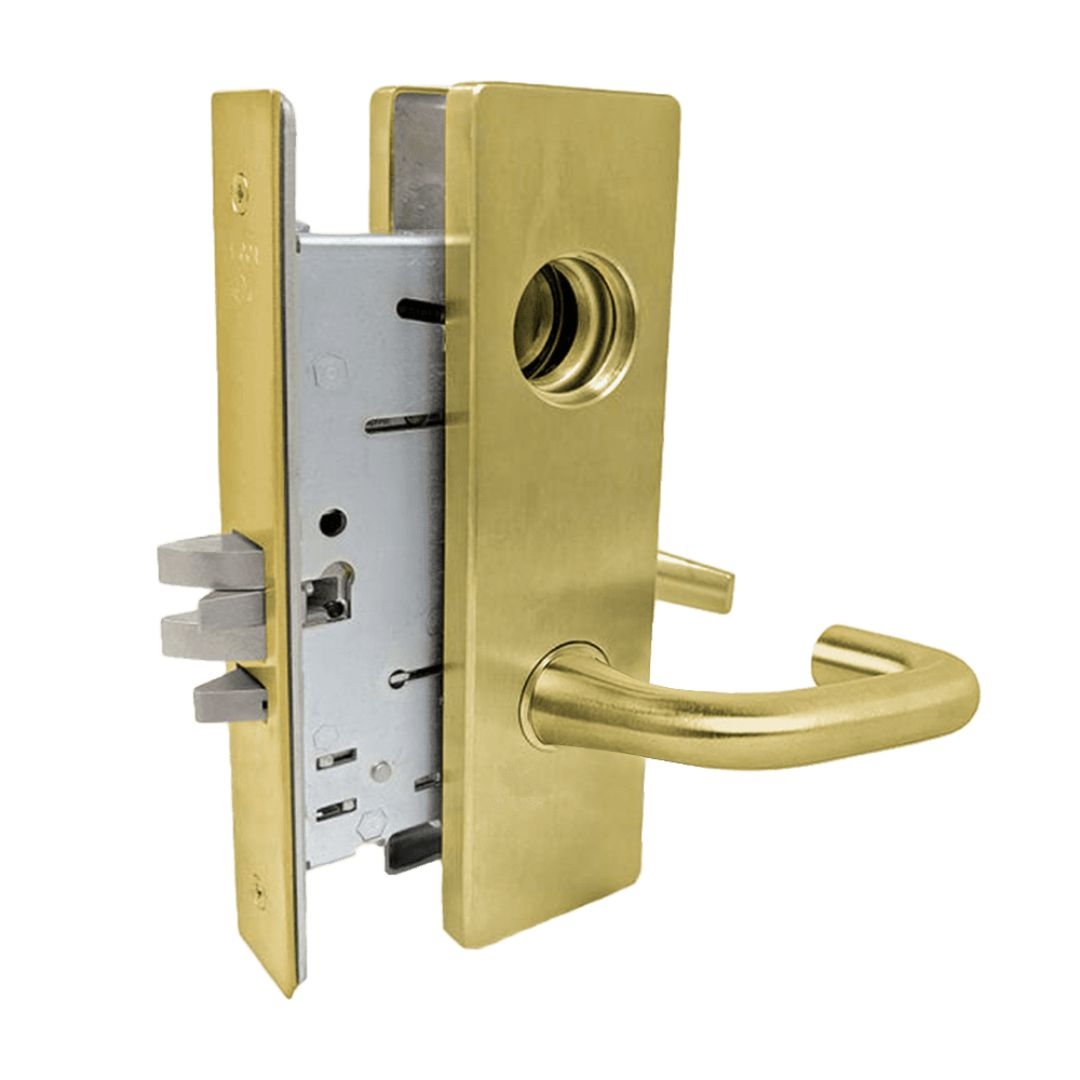

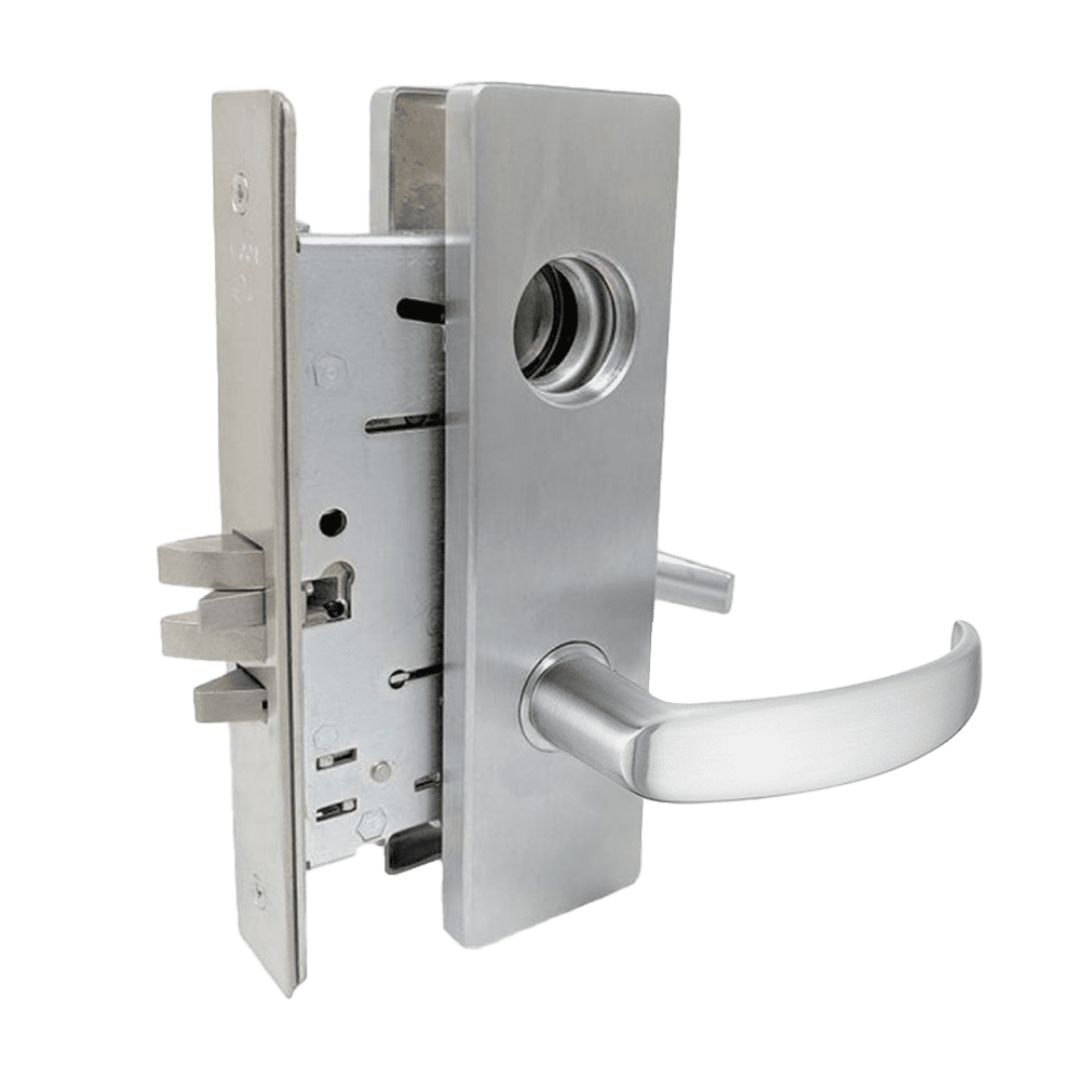

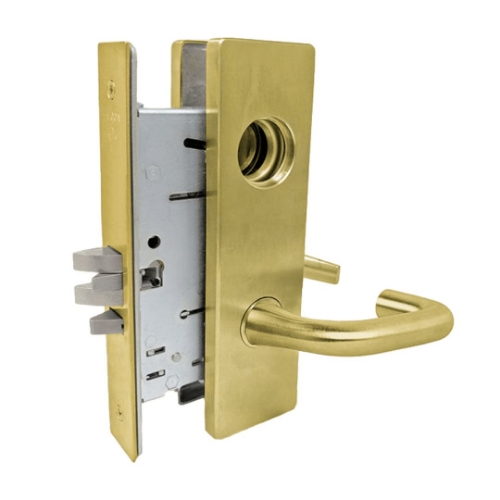

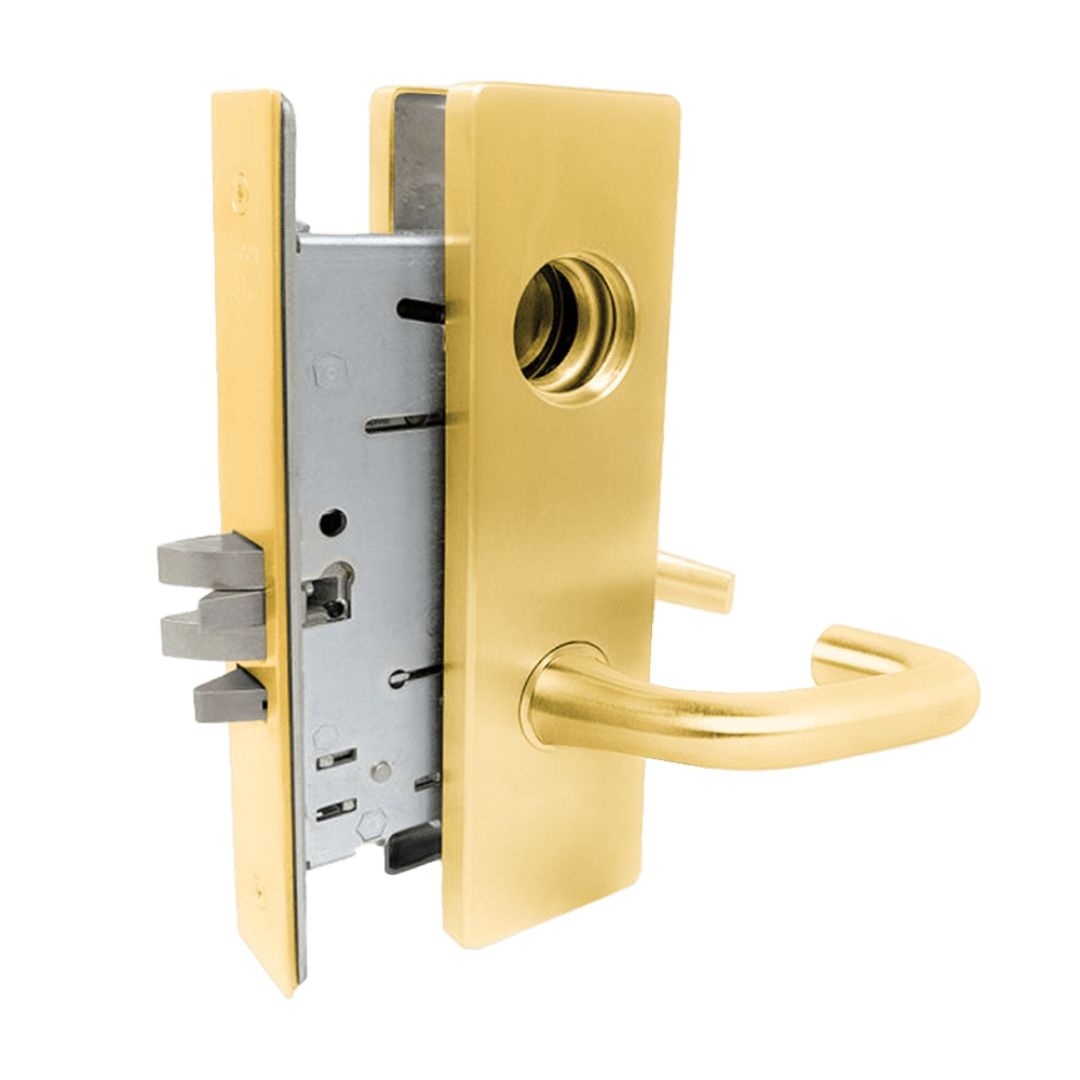

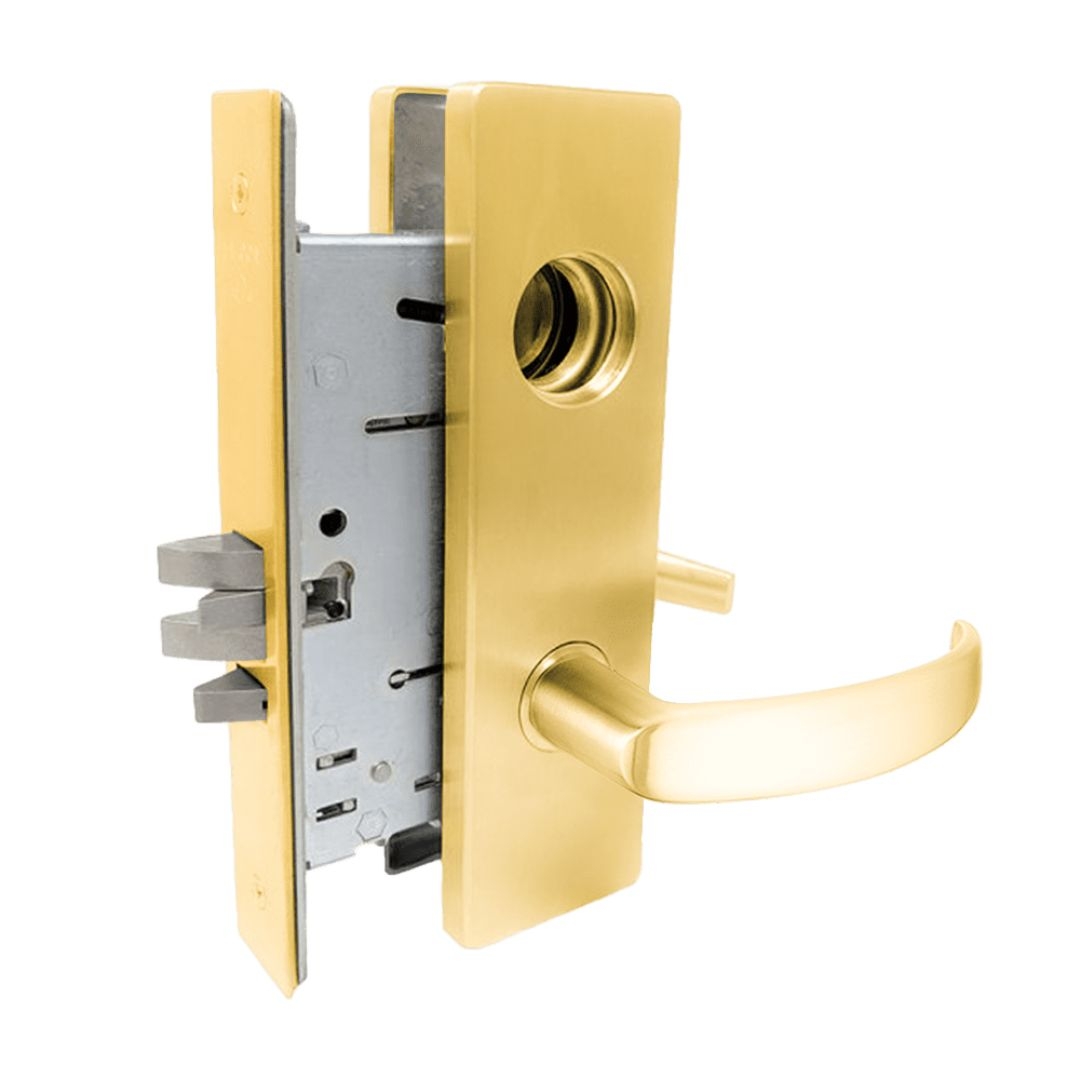

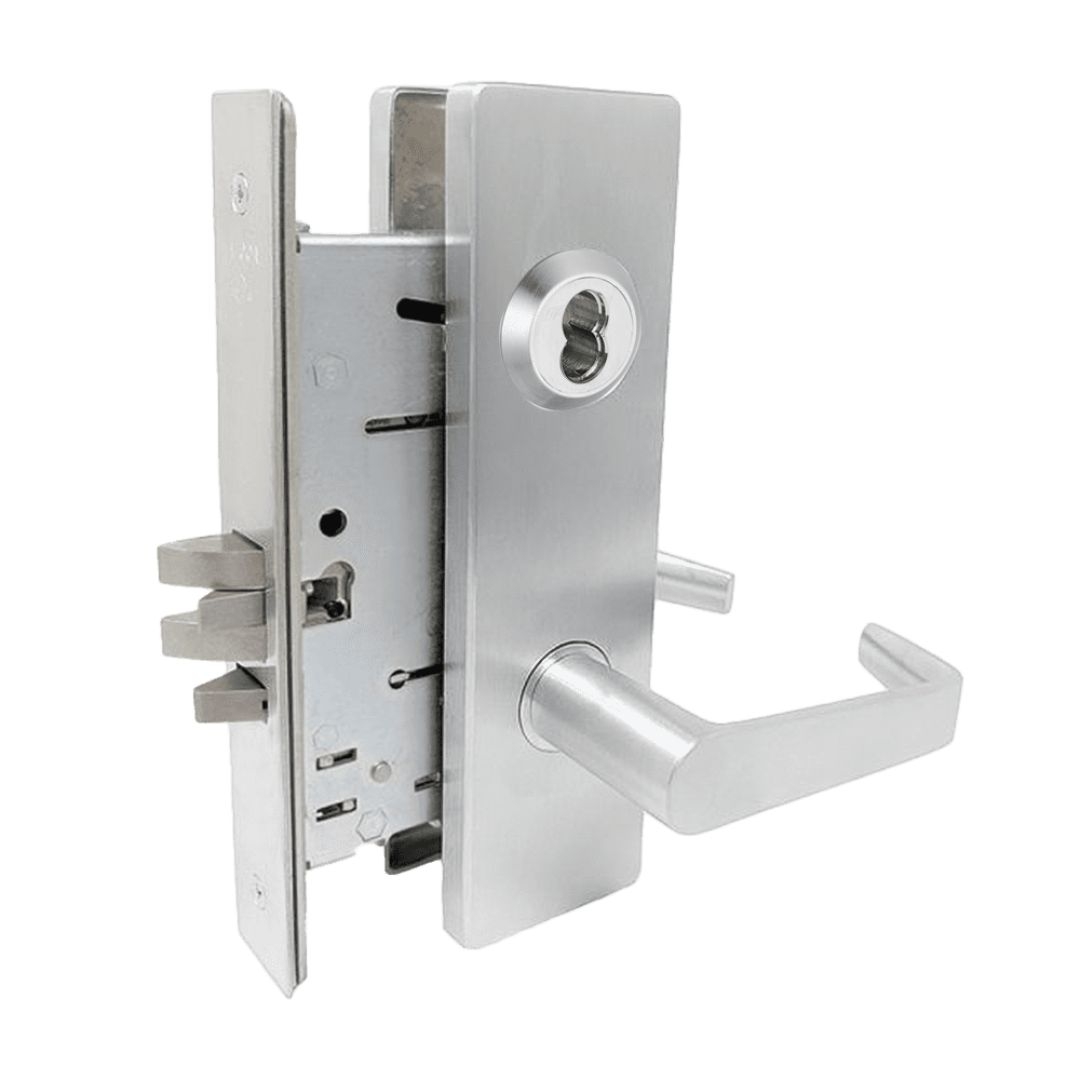

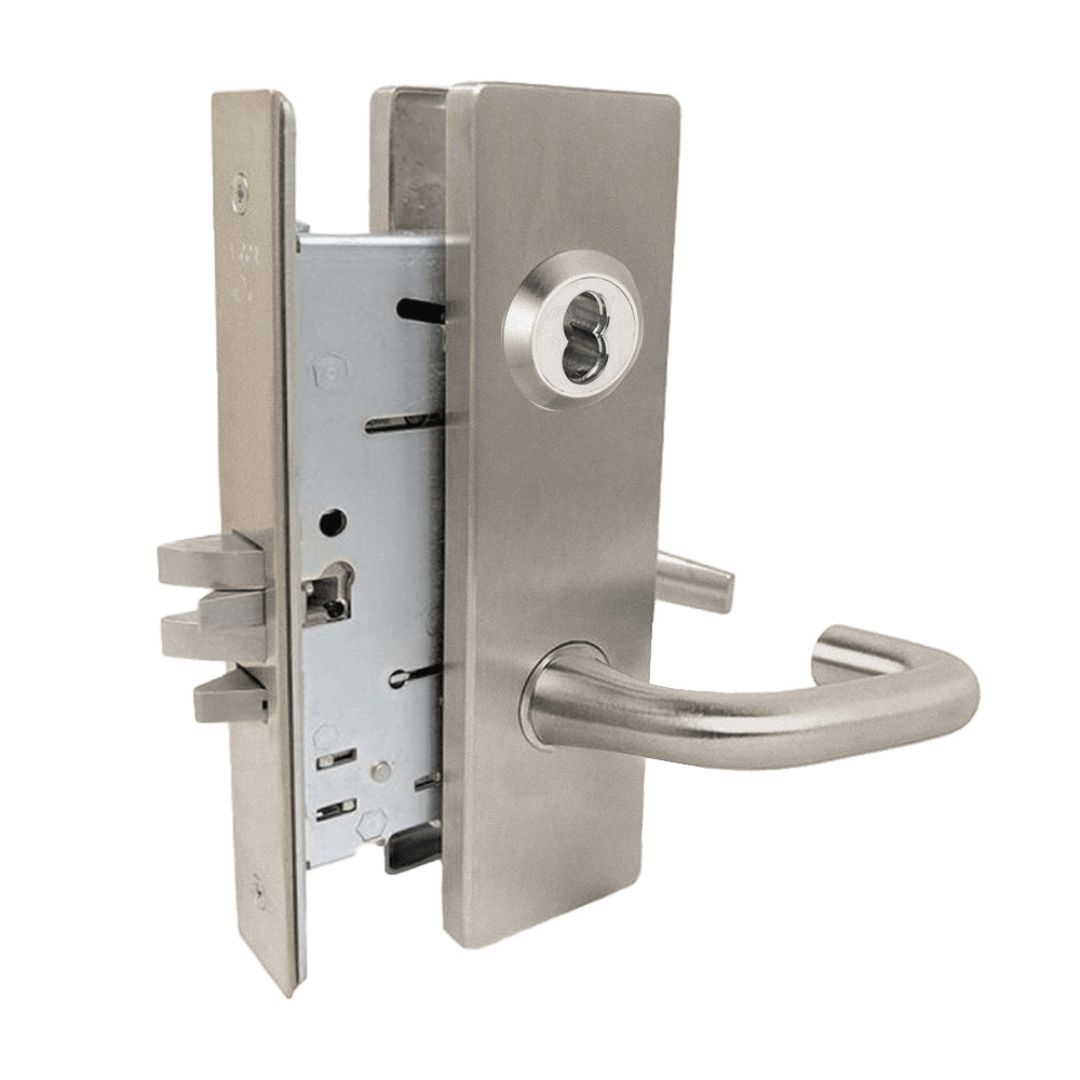

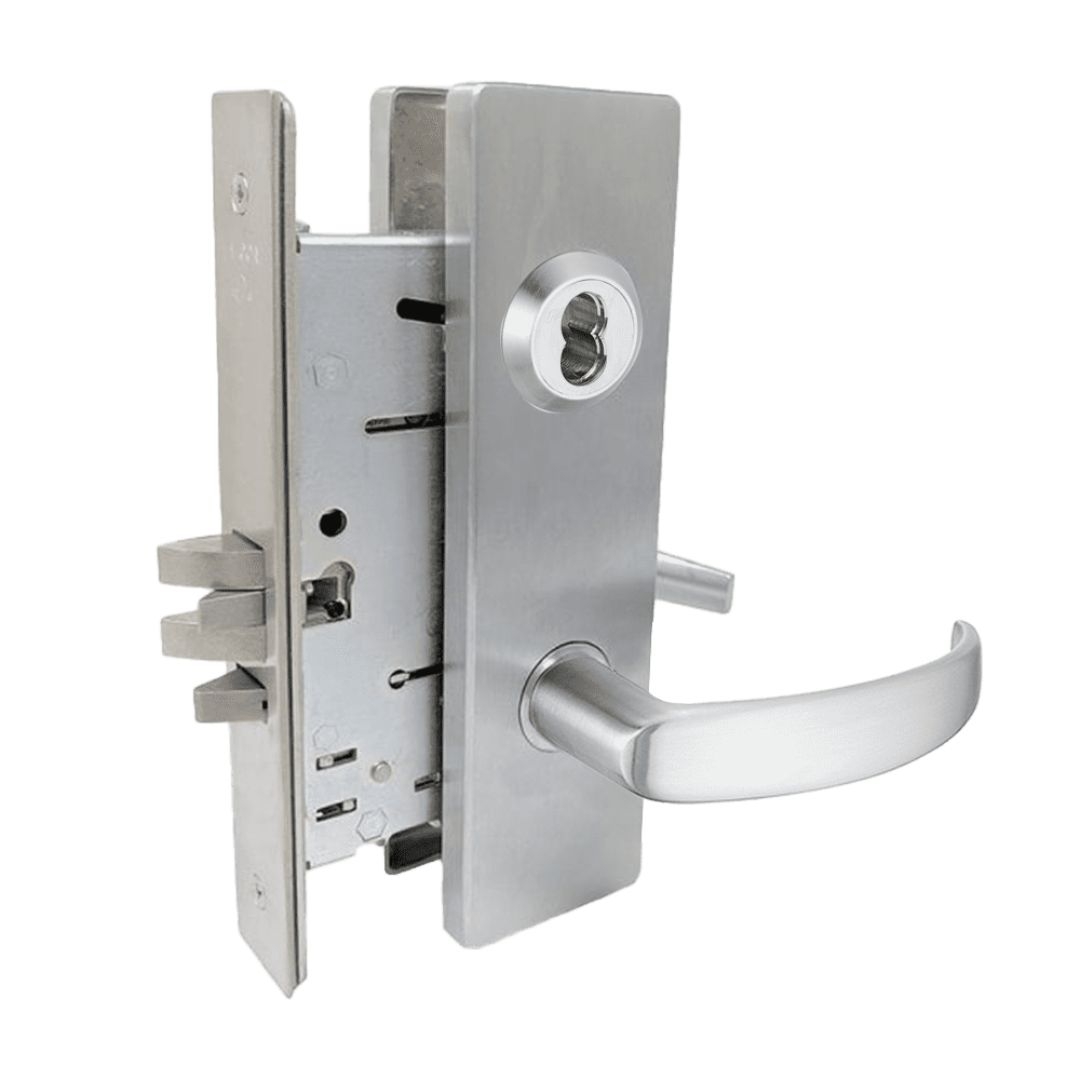

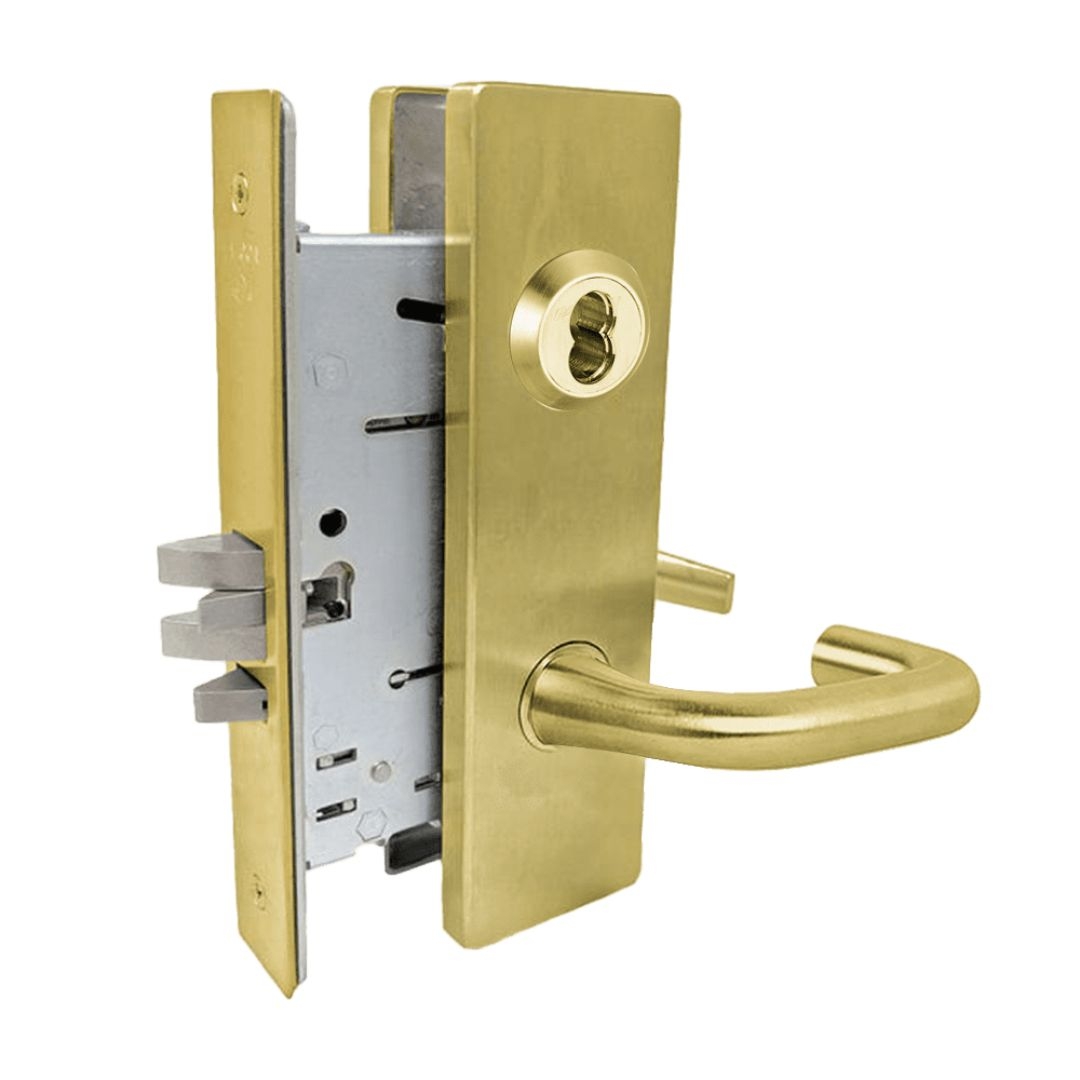

Falcon MA521 Grade 1 Entry/Office Mortise Lock

The Falcon MA521 is the entry/office function in the Falcon MA Series Grade 1 mortise lock line. It's the lock that goes on a commercial office suite entrance, a secured department door, or any opening where inside staff controls outside access without needing to use a key every time the state needs to change. Grade 1 under ANSI/BHMA 156.13 Series 1000. UL 3-hour A label. Field-reversible handing without opening the case. For the full Falcon MA Series lineup, browse our mortise locks catalog. For all commercial locks, view our commercial locks catalog.

How the ANSI F04 Entry/Office Function Works

Both levers operate the latch freely in the normal state. The function is controlled by buttons on the face of the lock case, accessible through the faceplate. When staff want to lock out outside access, they push the locking button on the lock face. The outside lever immediately becomes inoperative. No one in the corridor can push it down.

When the outside lever is locked, a key from outside still retracts the latch for entry by authorized personnel. Operating the inside lever also retracts the latch and simultaneously restores the outside lever to normal operation. The unlock button on the lock face returns the door to normal passage without a key.

The lock includes an auxiliary deadlatch that deadlocks the main latch bolt when the door is fully closed. This prevents shimming the latch back with a card or tool when the door is in normal operation.

This is the correct specification for commercial office entrances, professional suite doors, healthcare department entries, multi-tenant office floor entries, and any commercial opening where the people inside need to control who comes in without touching a key for every state change.

MA521 vs MA311 and MA321 - Which MA Function Is Right

The Falcon MA Series covers the full commercial mortise lock function range using the same case, faceplate, and trim throughout. The function code is the only variable.

The MA521 (ANSI F04) is the entry/office function: face buttons on the lock control outside lever access. A key overrides from outside. Inside lever always works. This is the office suite door specification.

The MA311 (ANSI F19) is the privacy function with a full 1-inch deadbolt thrown by the inside lever. For bedroom, bath, and healthcare patient rooms.

The MA321 (ANSI F22) is the T-turn privacy function that auto-releases on door close. For restrooms and exam rooms.

If the opening is a commercial entrance where inside staff locks out the corridor but an outside key can still enter at any time, the MA521 is correct.

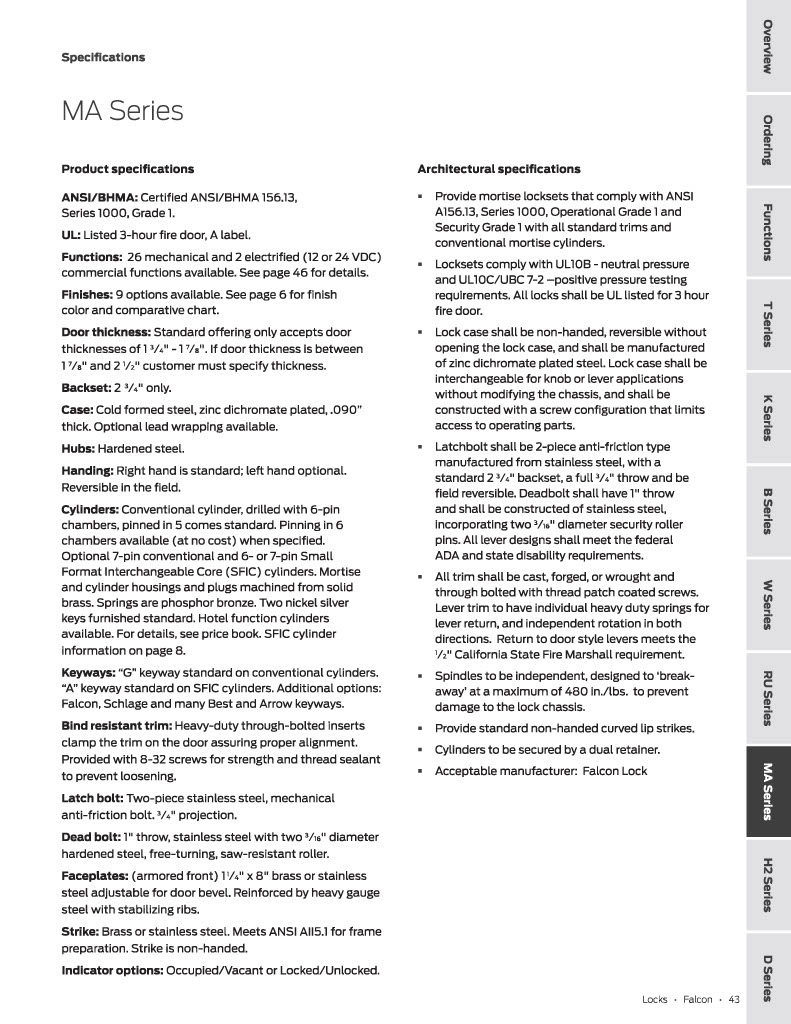

Falcon MA521 Full Specifications

• ANSI/BHMA: 156.13, Series 1000, Grade 1 Security and Grade 1 Operational

• UL: 3-hour A label

• Function: ANSI F04, Entry/Office, face button controlled

• Locking: Inside face buttons lock and unlock outside lever

• Key override: Yes, key from outside retracts latch when outside lever is locked

• Auxiliary deadlatch: Yes, deadlocks latch bolt on door close

• Latchbolt: Two-piece stainless steel, anti-friction, 3/4" projection

• Deadbolt: 1" throw, stainless steel, two 13/16" hardened steel saw-resistant rollers

• Case: Cold-formed steel, zinc dichromate plated, 0.090" thick

• Hubs: Hardened steel

• Faceplate: 1-1/4" x 8", adjustable for door bevel, heavy-gauge steel reinforced

• Strike: Brass or stainless steel, non-handed, meets ANSI A115.1

• Backset: 2-3/4" only

• Door thickness: 1-3/8" to 2-1/2"

• Handing: Right hand standard, field reversible without opening case

• Cylinder: 6-pin solid brass standard (P); IC 6 or 7-pin available

• Keyways: G keyway standard; A keyway on IC; optional keyways available

• Keys: 2 nickel silver standard

• Keying: KD standard; KA (+$20); MK (+$30)

• Electrified: 12 or 24 VDC available

• Resources: Falcon MA Series catalog available in Resources section

Lever and Finish Options

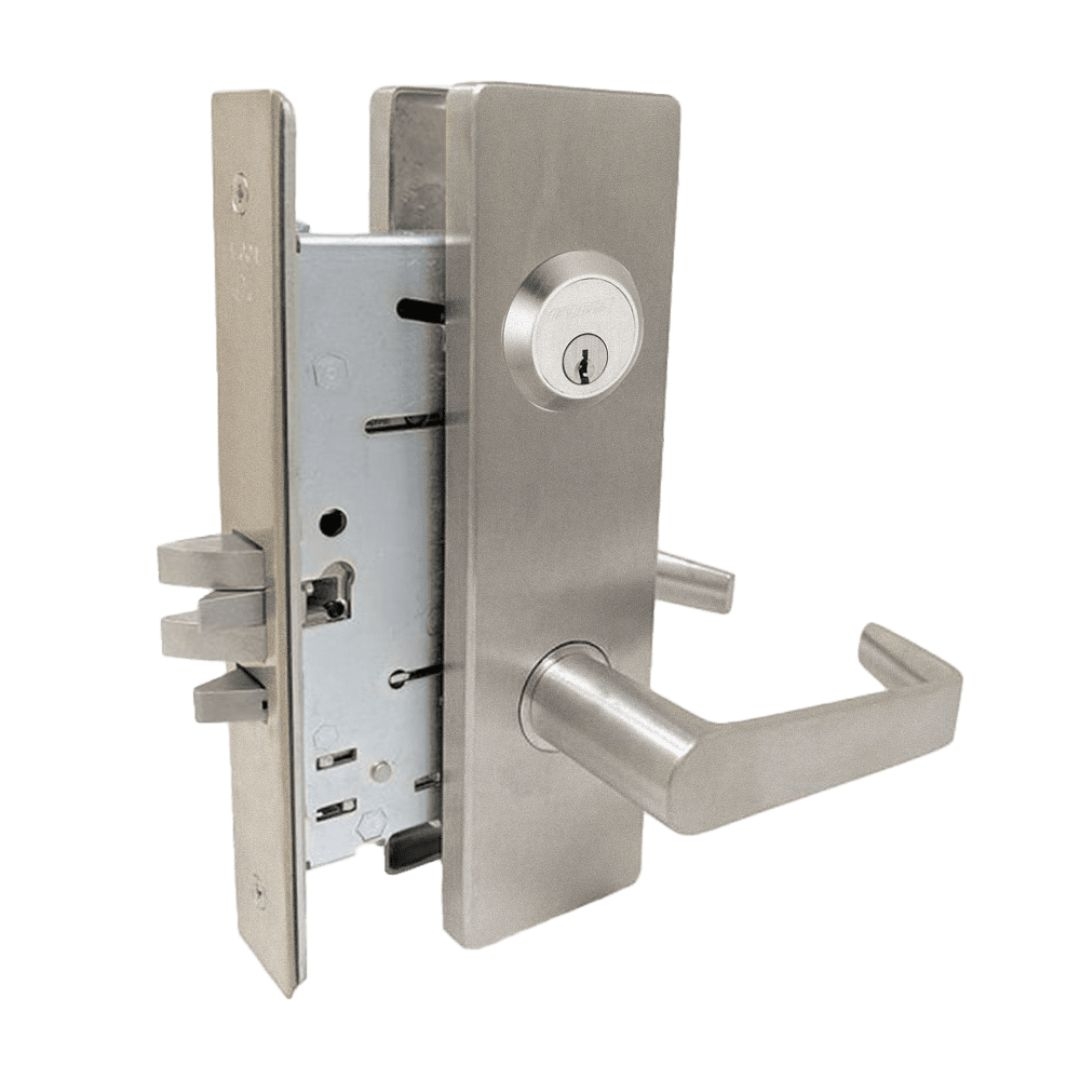

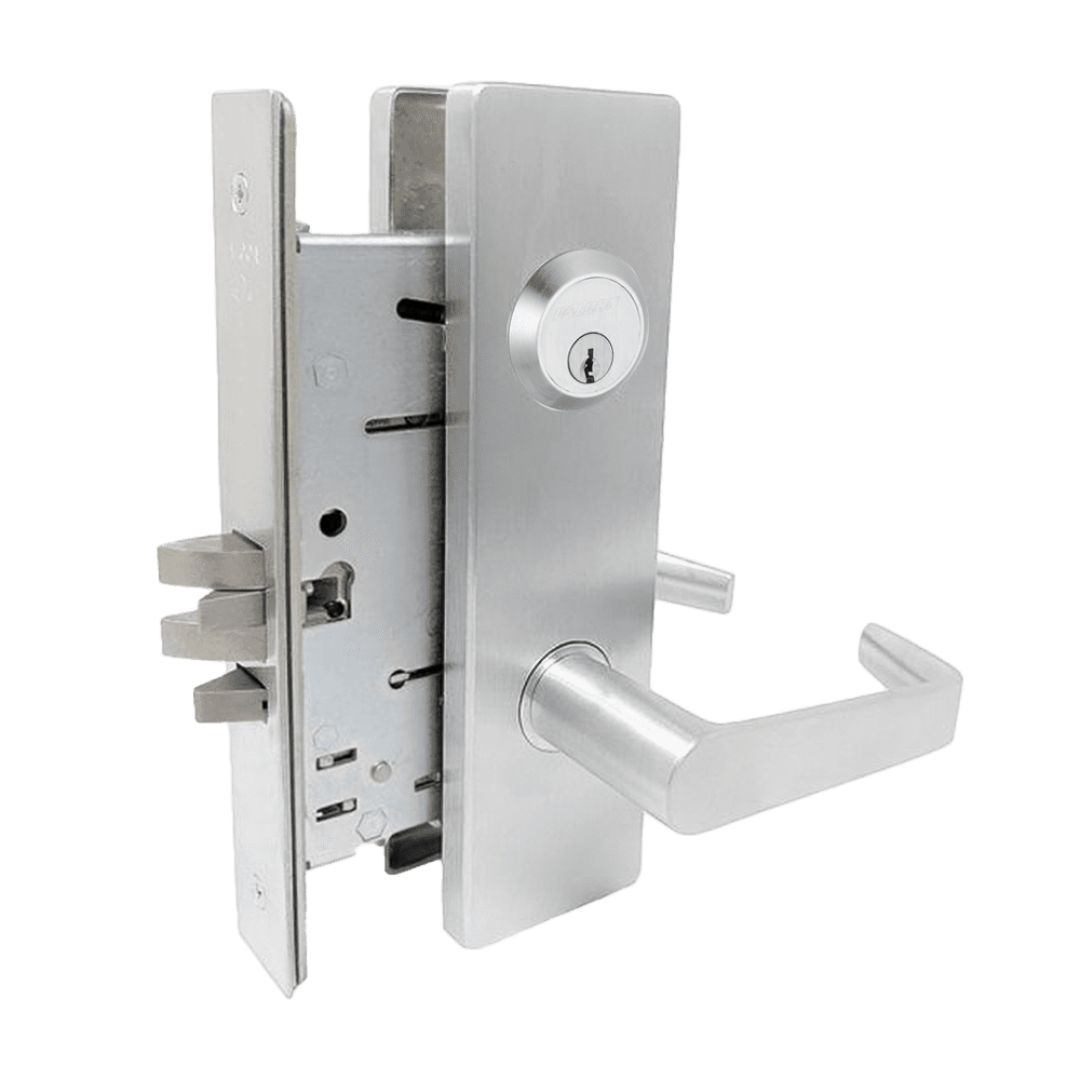

Four lever styles: Dane (D), Quantum (Q), Sutro (S), Hana (H). Two escutcheon profiles: Gala (G) and Napa (N). Three finishes: 626 Satin Chrome, 613 Oil Rubbed Bronze, 630 Satin Stainless Steel. Model code identifies both: MA521 DN is Dane lever with Napa escutcheon. MA521 QG is Quantum lever with Gala escutcheon.

All MA521 lever and finish options are identical to every other MA Series function, so specifying the MA Series across a building keeps the appearance consistent from office entrance doors to privacy rooms to storeroom doors without mixing trim families.
