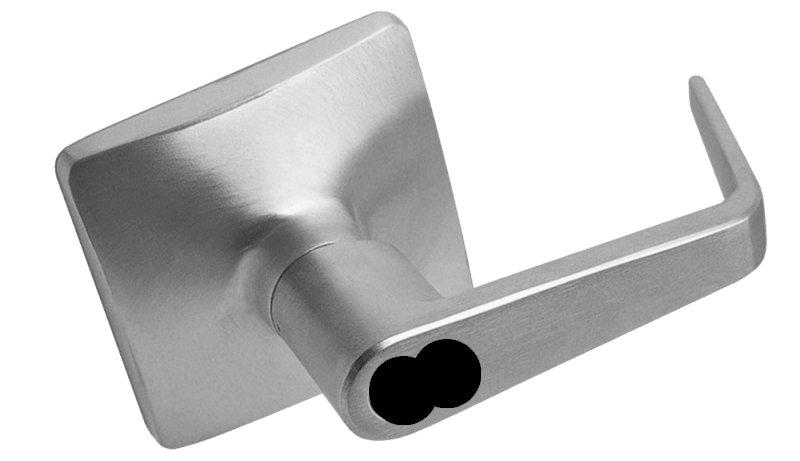

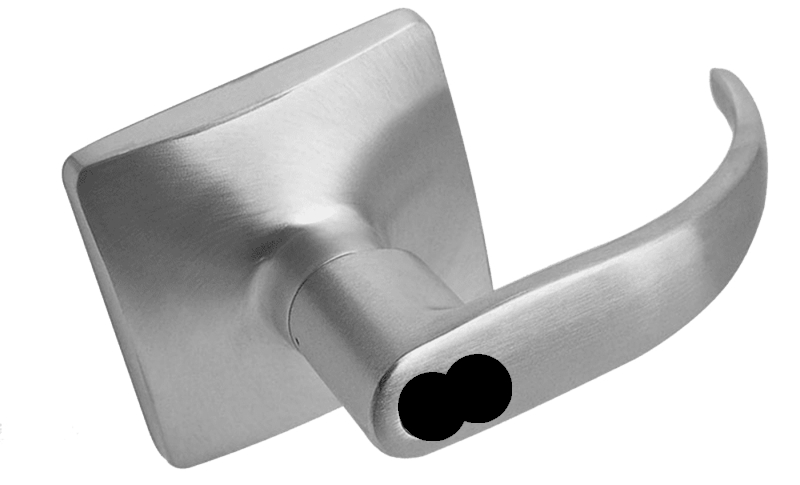

Falcon RU571BD 626 Dormitory/Corridor Unit Lock, SFIC Less Core, Satin Chrome

Falcon RU571BD  626 Dormitory/Corridor Unit Lock, SFIC Less Core, Satin Chrome

Latch bolt operated by levers/knobs except when locked by push button from inside. Key in outside lever/knob locks or unlocks lever/knob and releases button. Closing door releases push button. Inside always free for immediate egress. Function note: This lock will unlock when the door is closed. If you want your door to remain locked when it closes, please purchase the 501 function.

Vandal resistant PressureRelease outside lever disengages when locked to prevent damage to internal mechanism.

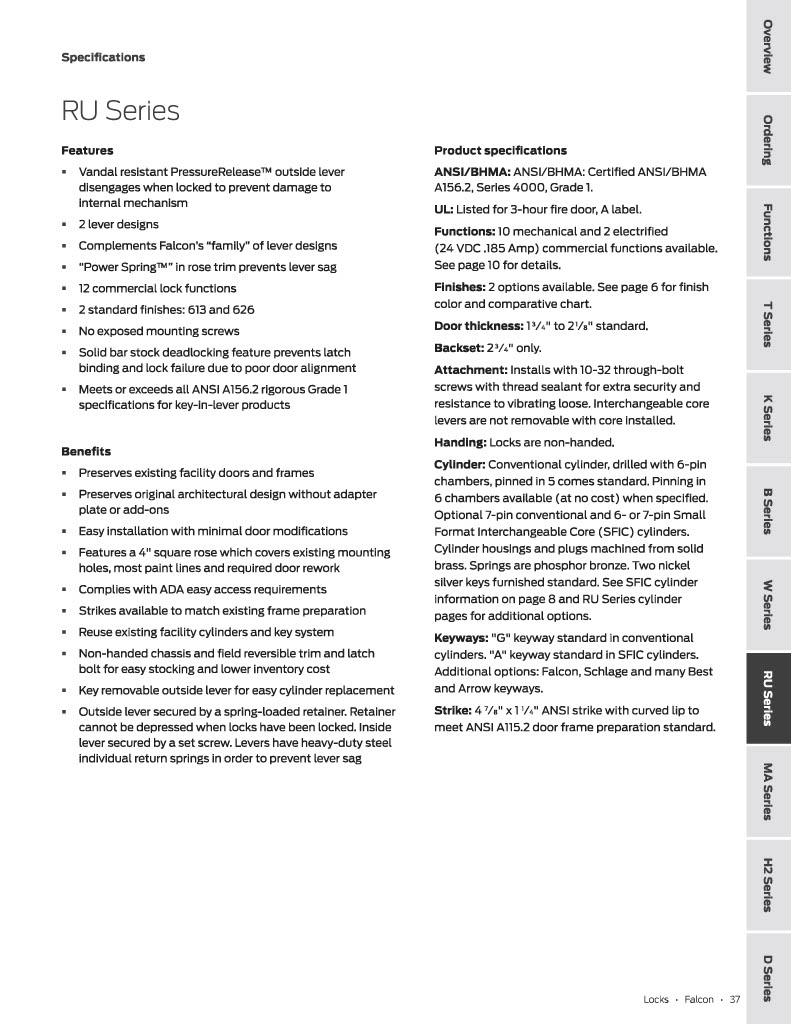

Product specifications:

ANSI/BHMA: ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1.

UL: Listed for 3-hour fire door, A label.

Door thickness: 1 3⁄4" to 21 ⁄8" standard.

Backset: 2 3⁄4" only.

Attachment: Installs with 10-32 through-bolt screws with thread sealant for extra security and resistance to vibrating loose. Interchangeable core levers are not removable with core installed.

Handing: Locks are non-handed.

Strike: 4 7 ⁄8" x 1 1 ⁄4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
