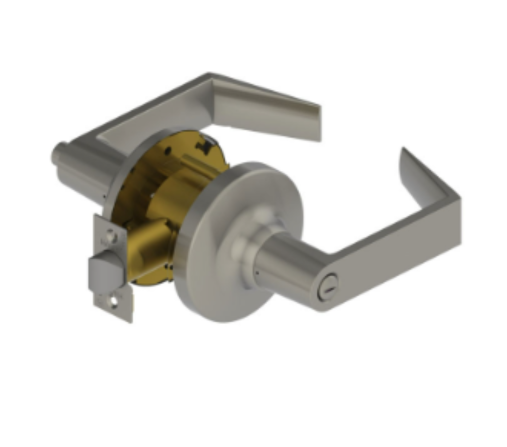

Hager 3453 26D Grade 1 Entry Lever Lock, Satin Chrome

Hager 3453 26D Grade 1 Entry Lever Lock, *Satin Chrome* - ANSI F109

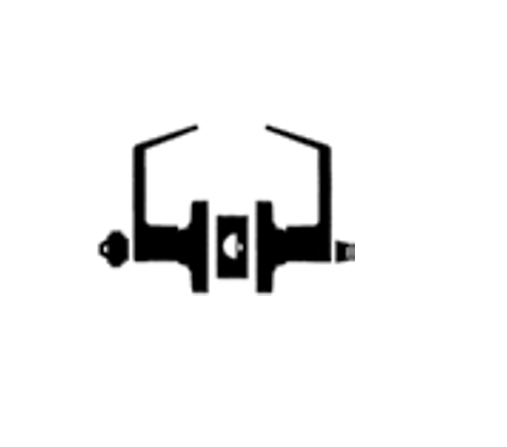

Deadlocking latchbolt operated by lever from either side except when outside lever is locked by the push or turn button inside. Key outside or operating inside lever releases push or turn button unlocking outside lever except when push or turn button has been rotated to keep outside lever locked. Inside push or turn button must be manually operated to unlock outside lever. Inside lever always operates latchbolt.

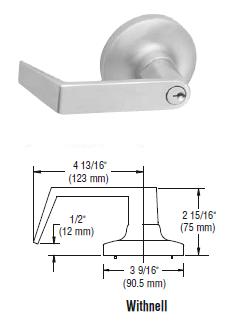

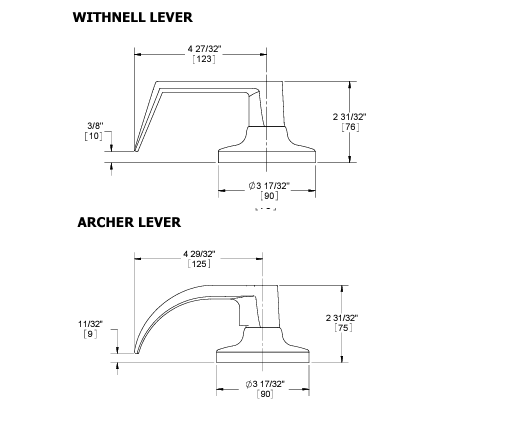

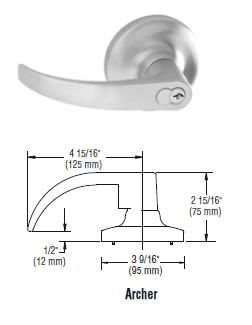

Lever Styles:Withnell - WTN, Archer - ARC

Finishes:26D - Satin Chrome, 10 - Satin Bronze, 10B - Oil Rubbed Bronze

Features

Standard Door Prep: 2-1/8" (54 mm) Diameter (Cross Bore)

Latch Hole: 1" (25.4 mm) Diameter (Edge Bore)

Levers: Wrought Brass, Bronze or zinc based

Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance

Free wheeling (Levers Only)

Thru-bolt mounting (Levers Only)

Rose Diameter: 3-9/16" (90 mm) (Levers)

Keys: Two brass keys per lock

Cylinders: Brass 6-pin - Keyed Different - C Keyway

Drilled 6-pin, Keyed 5-pin - Standard

Door Thickness: Knobs: 1-3/8" (35 mm) - 1-3/4" (45 mm)

Levers: 1-3/8" (60 mm) - 2" (51 mm)

Backset: 2-3/4" (70 mm) - Standard, 2-3/8" (60 mm) - Optional

Latchbolt: 1/2" (13 mm) Throw - Stainless Steel

2-1/4" (57 mm) x 1-1/8" (29 mm) Faceplate

Deadlocking latchbolt prevents manipulation when door isclosed; keyed functions only

Strike: 3935 ASA 1-1/4" (32 mm) x 4-7/8" (124 mm) strike - Standard

Certifications:BHMA Certified ANSI A156.2 Grade 1

ADA Compliant ANSI A117.1 Accessibility Code (Levers Only)

ANSI A250.13 Severe Windstorm Resistant Component

UL/cUL Listed for all functions up to 3 hours for A label single doors

UL10C/UBC 7-2 (1997) Positive Pressure Rated

UL10B Neutral Pressure Rated
