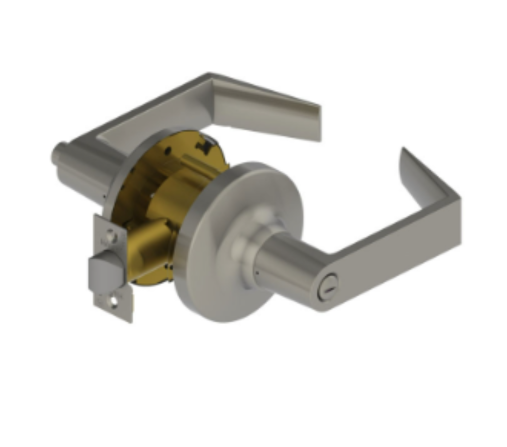

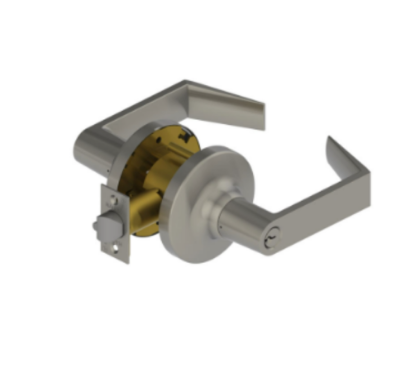

Hager 3440 26D Grade 1 Privacy Leverset, Satin Chrome

Hager 3440 26D Grade 1 Privacy Leverset, *Satin Chrome* - ANSI F76

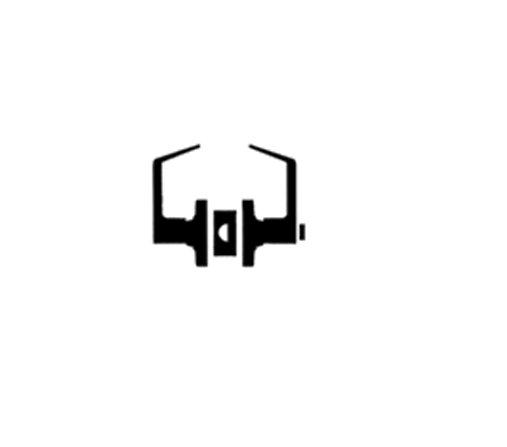

Latchbolt operated by lever from either side. Outside lever is locked by push button and unlocked by emergency release outside, operating inside lever or closing door.

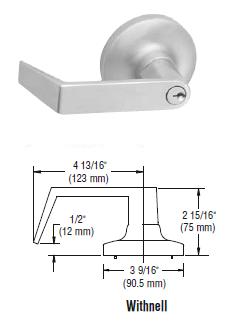

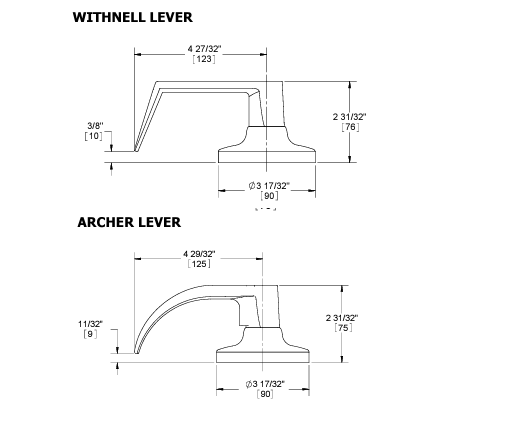

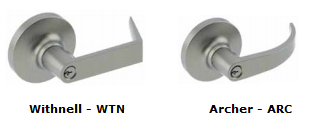

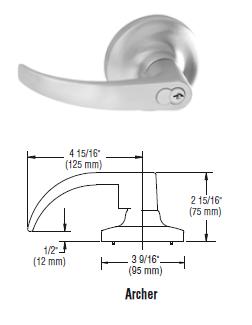

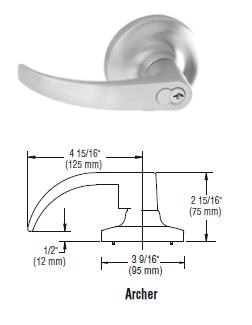

Lever Styles:Withnell - WTN, Archer - ARC

Finishes:26D - Satin Chrome, 10 - Satin Bronze, 10B - Oil Rubbed Bronze

Features

Standard Door Prep: 2-1/8" (54 mm) Diameter (Cross Bore)

Latch Hole: 1" (25.4 mm) Diameter (Edge Bore)

Levers: Wrought Brass, Bronze or zinc based

Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance

Free wheeling (Levers Only)

Thru-bolt mounting (Levers Only)

Rose Diameter: 3-9/16" (90 mm) (Levers)

Door Thickness: Knobs: 1-3/8" (35 mm) - 1-3/4" (45 mm)

Levers: 1-3/8" (60 mm) - 2" (51 mm)

Backset: 2-3/4" (70 mm) - Standard, 2-3/8" (60 mm) - Optional

Latchbolt: 1/2" (13 mm) Throw - Stainless Steel

2-1/4" (57 mm) x 1-1/8" (29 mm) Faceplate

Strike: 3935 ASA 1-1/4" (32 mm) x 4-7/8" (124 mm) strike - Standard

Certifications:BHMA Certified ANSI A156.2 Grade 1

ADA Compliant ANSI A117.1 Accessibility Code (Levers Only)

ANSI A250.13 Severe Windstorm Resistant Component

UL/cUL Listed for all functions up to 3 hours for A label single doors

UL10C/UBC 7-2 (1997) Positive Pressure Rated

UL10B Neutral Pressure Rated
