Hager 3570 - Classroom -ANSI F84

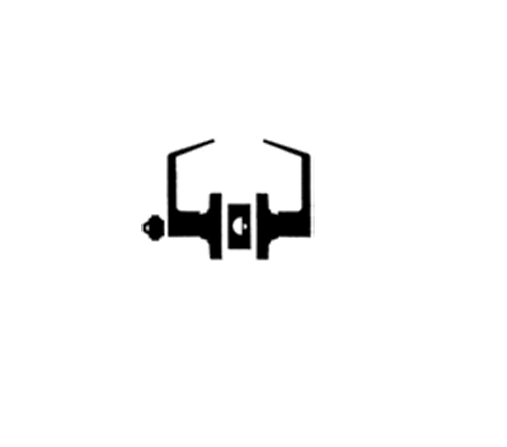

Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latchbolt is operated by inside lever.

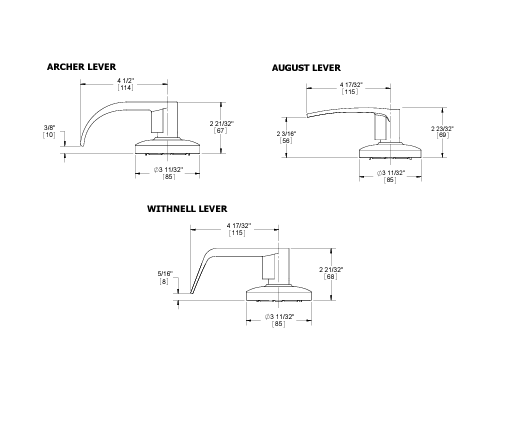

Lever Style: Archer ARC, August AUG, Withnell WTN

Standard Door Prep:2-1/8" (54 mm) Diameter (Cross Bore)

Latch Hole:1" (25.4 mm) Diameter (Edge Bore)

Exposed Trim:Wrought Brass, Bronze and Stainless Steel, zinc based

Lock Chassis:Heavy gauge steel, zinc dichromated for corrosion resistance

Rose Diameter:3-3/8" (86 mm) (Levers)

Keys:Two brass keys per lock

Cylinders:Brass - Keyed Different - C Keyway Drilled 6-pin, Keyed 5-pin - Standard

Door Thickness:1-3/8" - 2" (35 mm - 51 mm)

Backset:2-3/4" (70 mm) - Standard 2-3/8" (60 mm) - Optional

Latchbolt:1/2" (13 mm) Throw - Stainless Steel 2-1/4" (57 mm) x 1-1/8" (29 mm) Faceplate for 2-3/4" (70 mm) backset 2-1/4" (57 mm) x 1" (25.4 mm) Faceplate for 2-3/8" (60 mm) backset

Deadlocking latchbolt prevents manipulation when door is closed

Strike:3935 ASA 1-1/4" (32 mm) x 4-7/8" (124 mm) strike - Standard

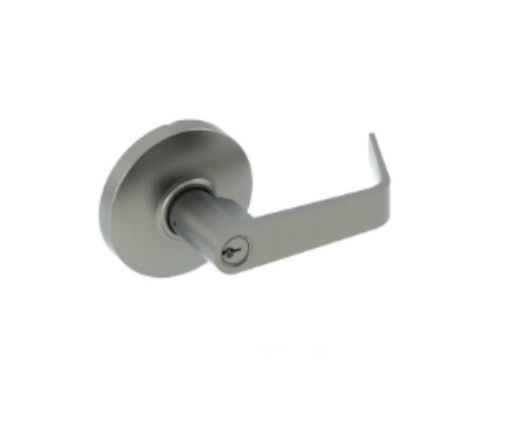

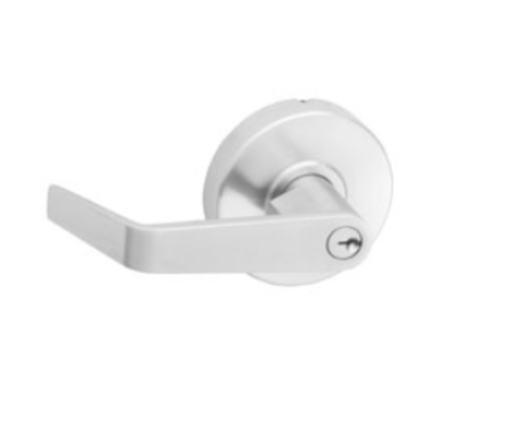

Model:3570US26D, 3570US26DARC, 3570US26DAUG, 3570US26DWTN, 3570US10B, 3570US10BARC, 3570US10BAUG, 3570US10BWTN

Certifications:

BHMA Certified ANSI A156.2 Grade 2

ADA Compliant ANSI A117.1 Accessibility Code (Levers Only)

ANSI A250.13 Severe Windstorm Resistant Component

UL/cUL Listed for all functions up to 3 hours A label single doors

UL10C/UBC 7-2 (1997) Positive Pressure Rated

UL10B Neutral Pressure Rated
