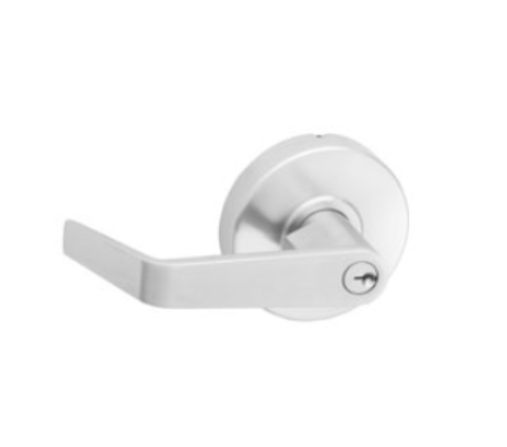

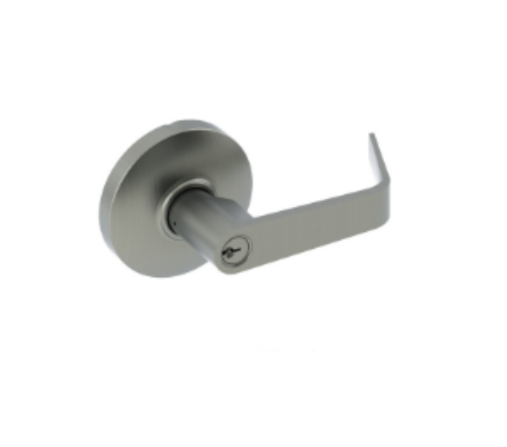

Hager 3540 Grade 2 Privacy Leverset

Hager 3540 Grade 2 Privacy Leverset -ANSI F76

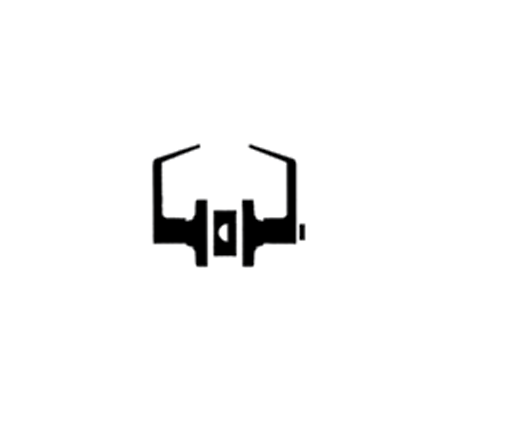

Latchbolt operated by lever from either side. Outside lever is locked by push button and unlocked by emergency release outside, operating inside lever or closing door.

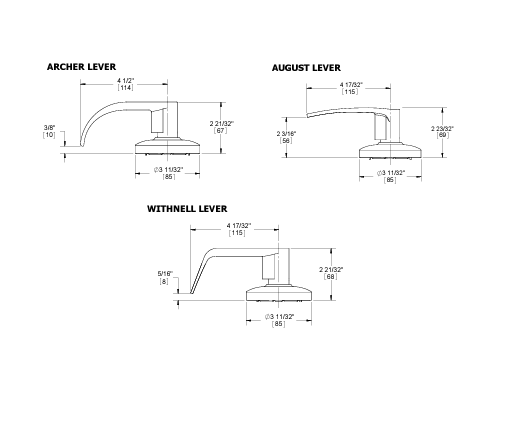

Lever Style: Archer ARC, August AUG, Withnell WTN

Standard Door Prep:2-1/8" (54 mm) Diameter (Cross Bore)

Latch Hole:1" (25.4 mm) Diameter (Edge Bore)

Exposed Trim:Wrought Brass, Bronze and Stainless Steel, zinc based

Lock Chassis:Heavy gauge steel, zinc dichromated for corrosion resistance

Rose Diameter:3-3/8" (86 mm) (Levers)

Door Thickness:1-3/8" - 2" (35 mm - 51 mm)

Backset:2-3/4" (70 mm) - Standard 2-3/8" (60 mm) - Optional

Latchbolt:1/2" (13 mm) Throw - Stainless Steel 2-1/4" (57 mm) x 1-1/8" (29 mm) Faceplate for 2-3/4" (70 mm) backset 2-1/4" (57 mm) x 1" (25.4 mm) Faceplate for 2-3/8" (60 mm) backset

Deadlocking latchbolt prevents manipulation when door is closed

Strike:3935 ASA 1-1/4" (32 mm) x 4-7/8" (124 mm) strike - Standard

Model:3540US26D, 3540US26DARC, 3540US26DAUG, 3540US26DWTN, 3540US10B, 3540US10BARC, 3540US10BAUG, 3540US10BWTN

Certifications:

BHMA Certified ANSI A156.2 Grade 2

ADA Compliant ANSI A117.1 Accessibility Code (Levers Only)

ANSI A250.13 Severe Windstorm Resistant Component

UL/cUL Listed for all functions up to 3 hours A label single doors

UL10C/UBC 7-2 (1997) Positive Pressure Rated

UL10B Neutral Pressure Rated
