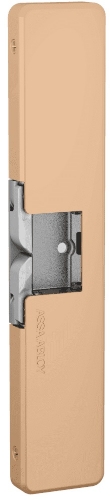

HES 9600-612 Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Surface Mounted, 3/4" Thickness, Satin Bronze Finish

HES 9600-612 Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Surface Mounted, 3/4" Thickness, Satin Bronze Finish

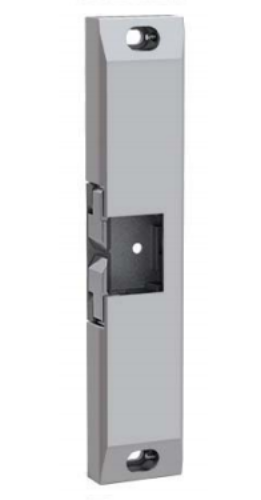

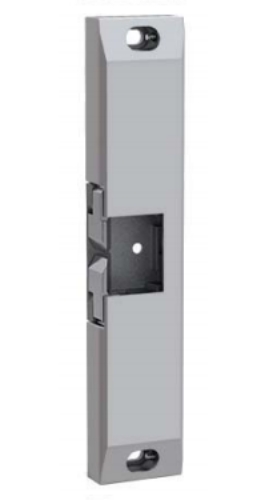

The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latchbolt.

All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install.

It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.

The 9600 is the only surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.

Frame application Metal, Wood

Standard Features

Installs in metal or wood frames

Separate base and cover for easy adjustments

Stainless steel construction

Tamper resistant

Static strength 2,000 lbs.

Dynamic strength 120 ft-lbs.

Endurance 1,000,000 cycles

Field selectable fail safe/fail secure

Dual voltage 12 or 24 VDC

Horizontal adjustment

Non-handed

Internally mounted solenoid

Accommodates up to 3/4" Pullman latch

Five-year limited warranty

Optional Features

LBM - Latchbolt monitor

LBSM - Latchbolt strike monitor

Model: 9600 612

Specifications

ANSI 250.13-2003 Severe Windstorm listed Florida Building Code Approved (FL#14307) UL 1034 burglary-resistant listed and suitable for outdoor use UL 294 (6th Edition) listed ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373) RoHS compliant Patent # 6,390,520

Electrical

.45 Amps @ 12VDC continuous duty .25 Amps @ 24VDC continuous duty PoE friendly
