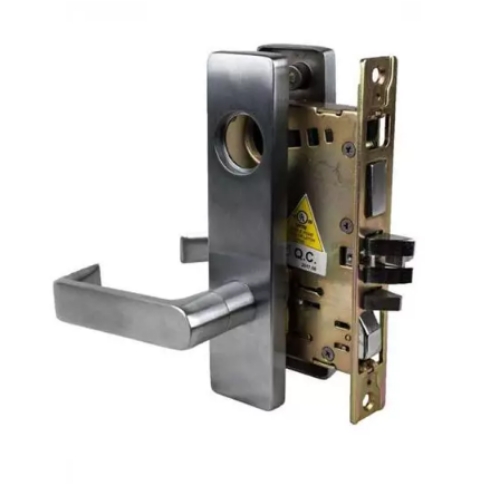

Imperial DL-DXML70 classroom Mortise Set - Satin Chrome (US26D)

Imperial  DL-DXML70 Heavy duty classroom Mortise Set -*Satin Chrome*

Function:Classroom Latch - ANSI F05Latchbolt operated by lever either side, except when outside lever is locked by key outside. Key operates latch or unlocks outside lever. Inside lever is always free. Auxiliary latchbolt deadlocks latchbolt. Door Thickness: 1 3/4"

Backset:2 3/4"

Face plate:1 1/4" x 8"

UL 3 Hour fire Listed Latch

1" Throw Bolt

1 1/8" Mortise Cylinder

SC6 Schlage "C" 6 pin keyway

Sectional and escutcheon trim available

Barrier free levers and returns within 1/2" from door face

Dead or spring latch

Warranty:3 years Trim Specifications

Model:Imperial  DL-DXML70, DL-DXML70US26D, DL-DXML70 US26D, DL-DXML70LH, DL-DXML70RH, DL-DXML70SS, DL-DXML70SE, DL-DXML70SERH, DL-DXML70SELH, DL-DXML70SSRH, DL-DXML70SSLH, DL-DXML70LHUS26D, DL-DXML70RHUS26D, DL-DXML70SSUS26D, DL-DXML70SEUS26D, DL-DXML70SSLHUS26D, DL-DXML70SSRHUS26D,
