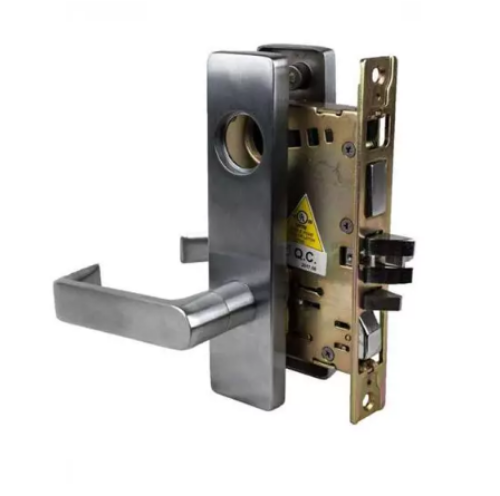

Imperial DL-DXML80 Storeroom Mortise Set - Satin Chrome (US26D)

Imperial  DL-DXML80 Heavy duty Storeroom Mortise Set - Satin Chrome (US26D)

Function:Storeroom Latch -ANSI F07Outside lever always rigid. Latchbolt retracted only by key outside or by inside lever. Auxiliary latchbolt deadlocks latchbolt. Door Thickness: 1 3/4"

Backset:2 3/4"

Face plate:1 1/4" x 8"

UL 3 Hour fire Listed Latch

1" Throw Bolt

1 1/8" Mortise Cylinder

SC6 Schlage "C" 6 pin keyway

Sectional and escutcheon trim available

Barrier free levers and returns within 1/2" from door face

Dead or spring latch

Warranty:3 years Trim Specifications

Model:Imperial  DL-DXML80, DL-DXML80US26D, DL-DXML80 US26D, DL-DXML80LH, DL-DXML80RH, DL-DXML80SS, DL-DXML80SE, DL-DXML80SERH, DL-DXML80SELH, DL-DXML80SSRH, DL-DXML80SSLH, DL-DXML80LHUS26D, DL-DXML80RHUS26D, DL-DXML80SSUS26D, DL-DXML80SEUS26D, DL-DXML80SSLHUS26D, DL-DXML80SSRHUS26D,

?
