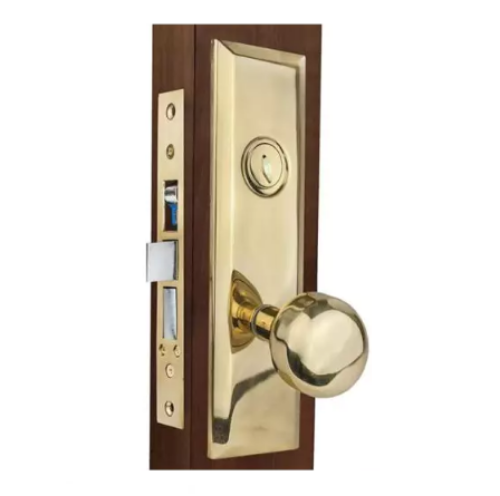

Imperial DL-ML914 US3 Entrance Mortise Set - Bright Brass

Imperial DL-ML914 US3 Entrance Mortise Set - Bright Brass

Function: Entrance - Latchbolt operated by lever either side, except when outside lever is locked by stopworks in lock front, or by projecting deadbolt by turnpiece inside or key outside. Turning inside lever will retract latchbolt and deadbolt simultaneously. Deadbolt operated by turnpiece inside or key outside. When deadbolt is projected the latchbolt is deadlocked.

Solid brass Mortise lockset with reversible latchbolt

DL-ML914:Spindle fixed to escutcheons

Full 1" throw chrome plated heavy duty deadbolt

Solid brass knobs and escutcheon plates

Door Thickness:1 3/4" standard

Backset:2 1/2"

Exterior plate:2 3/4" x 10" solid brass

Face Plate:1 1/16" x 7 5/8"

Cylinder:Schlage "C" keyway

Keying:5 Pin tumbler

Strike:Standard ASA strike

Finish:US3 Model: Imperial DL-ML914 US3, DL-ML914US3
