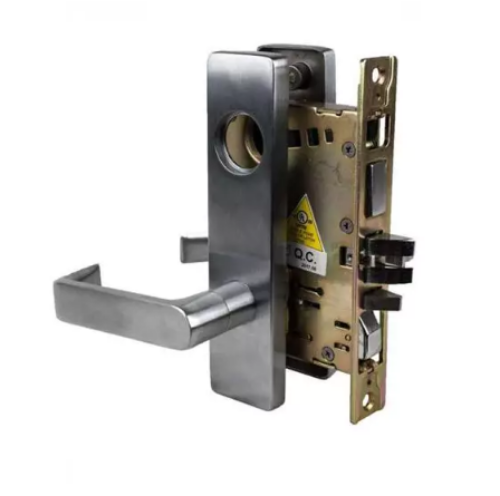

Imperial DL-DXML40 Privacy Mortise Set - Satin Chrome (US26D)

Imperial DL-DXML40 Heavy duty Privacy Mortise Set - Satin Chrome

Function:  Privacy latch - ANSI F22 Latchbolt by lever either side, except when outside is locked by turnpiece inside. Outside emergency release or operating from inside unlocks lock. Inside lever retracts both bolts.

Door Thickness:1 3/4"

Backset:2 3/4"

Face plate:1 1/4" x 8"

UL 3 Hour fire Listed Latch

1" Throw Bolt

1 1/8" Mortise Cylinder

SC6 Schlage "C" 6 pin keyway

Sectional and escutcheon trim available

Barrier free levers and returns within 1/2" from door face

Dead or spring latch   Finish:US26D -Satin Chrome

Warranty:3 years Trim Specifications

Model:Imperial  DL-DXML40, DL-DXML40US26D, DL-DXML40 US26D, DL-DXML40LH, DL-DXML40RH, DL-DXML40SS, DL-DXML40SE, DL-DXML40SERH, DL-DXML40SELH, DL-DXML40SSRH, DL-DXML40SSLH, DL-DXML40LHUS26D, DL-DXML40RHUS26D, DL-DXML40SSUS26D, DL-DXML40SEUS26D, DL-DXML40SSLHUS26D, DL-DXML40SSRHUS26D,

?
