Ives 261 Manual Flush Bolt

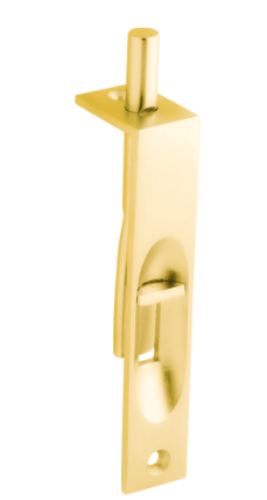

**Ives 261 Flush Bolt

**An exceptionally smooth working flush bolt with sharp, crisp lines.

Double action spring design provides automatic holding of brass bolt in projected or retracted position, and assures ease of operation in conjunction with deep cup finger hole.

Made from polished cast brass.

Bolt tip is 5/16" Diameter

Bolt throw is 3/4"

Bolt backset is 15/32"

**Dimensions

**Body Size: 3/4" Wide x 4" Long x 1-1/8" Deep

Strike Size: 5/8" Wide x 1-1/2" Long

Finishes: B3 - Brass Material - Bright Brass (605)  B5 - Brass Material - Antique Brass (609)  B10B - Bronze Material - Oil Rubbed Bronze (613)  B15 - Brass Material - Satin Nickel (619)  B26 - Brass Material - Polished Chrome Plated (625)  B26D - Brass Material - Satin Chrome Plated (626)    Model: 261B3, 261B5, 261B10B, 261B15, 261B26, 261B26D
