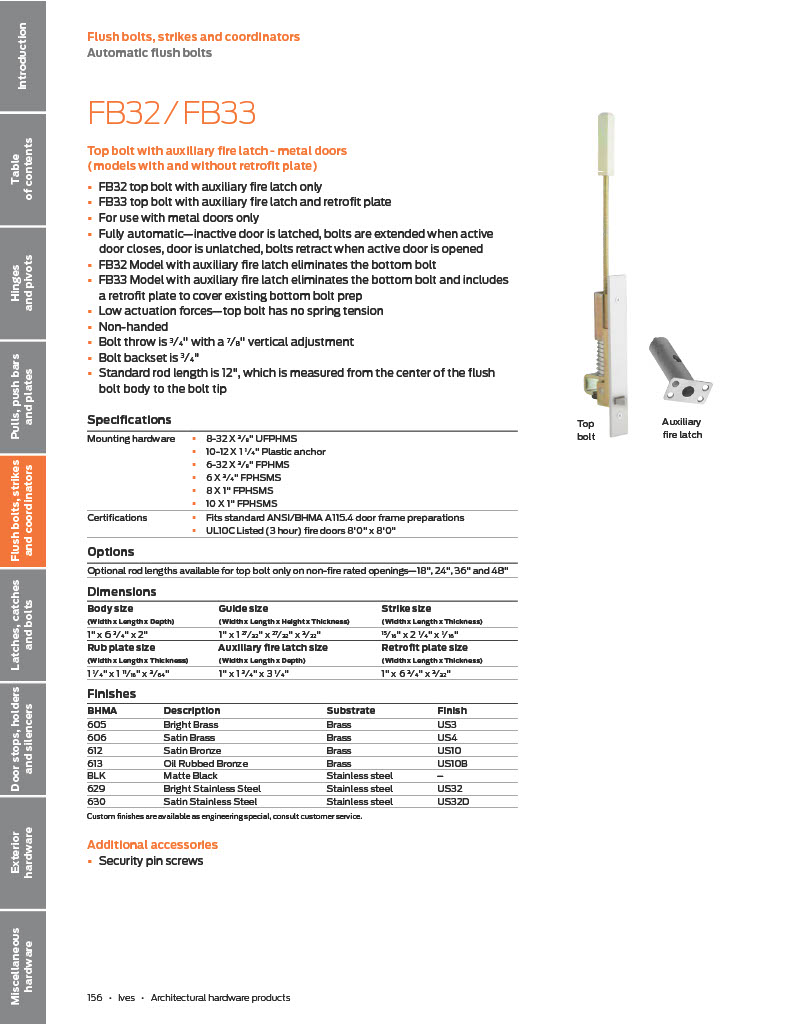

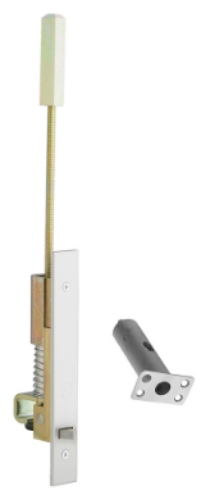

Ives FB32-12-MD Auto Flush Bolt, Metal Door, Top Bolt w/Fire Latch

Ives FB32-12-MD Auto Flush Bolt, Metal Door, Top Bolt w/Fire Latch

FB32 Model with Auxiliary Fire Latch eliminates the bottom bolt and is UL Listed for Fire Doors.

Fully Automatic inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened.

Low Actuation Forces Top Bolt Has No Spring Tension.

Fits standard ANSI A115.4 Door Frame Preparations.

Non-handed.

Bolt throw is 3/4" with a 7/8" vertical adjustment.

Bolt backset is 3/4"

Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip. (Optional rod lengths available for top bolt only on non-fire rated openings 18", 24", 36" and 48).

Dimensions

Body Size: 1" Wide x 6-3/4" Long x 2" Deep

Guide Size: 1" Wide x 1-27/32" Long x 27/32" High x 3/32" Thick

Strike Size: 15/16" Wide x 2-1/4" Long x 1/16" Thick

Rub Plate Size: 1-1/4" Wide x 1-11/16" Long x 3/64" Thick

Auxiliary Fire Latch Size: 1" Wide x 1-3/4" Long x 3-1/4" Deep

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) US32 (US32) Bright Stainless Steel (629) US32D (US32D) Satin Stainless Steel (630)

Model: FB32, FB3212MD,FB32US3, FB32US4, FB32US10, FB32US10B, FB32US32, FB32US32D, FB3212MDUS3, FB3212MDUS4, FB3212MDUS10, FB3212MDUS10B, FB3212MDUS32, FB3212MDUS32D
