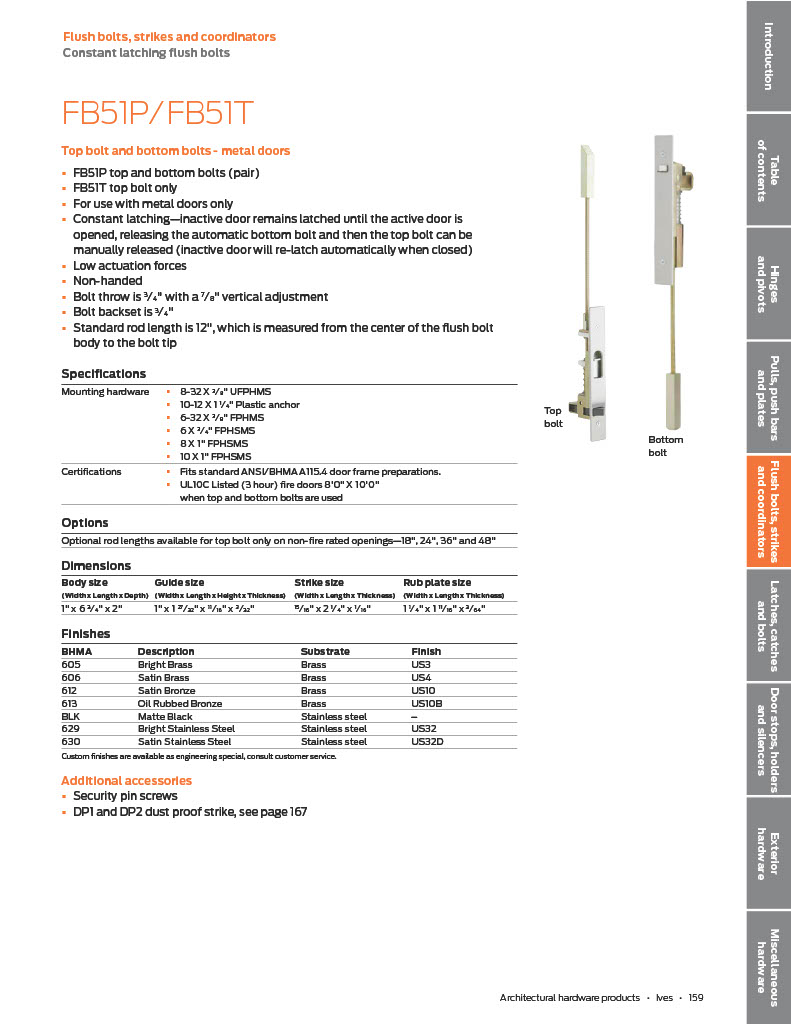

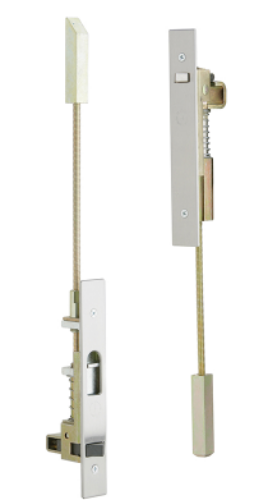

Ives FB51P Constant Latching Flush Bolts - Metal Doors (Pair)

Ives FB51P Constant Latching Flush Bolts - Metal Doors (Pair)

Constant Latching inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. Inactive door will relatch automatically when closed.

Low Actuation Forces.

Fits standard ANSI A115.4 Door and Frame Preparations.

Non-handed.

3/4" bolt throw with a 7/8" vertical adjustment.

3/4" backset

Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip. Optional rod lengths available for top bolt only on non-fire rated openings 18", 24", 36" and 48".

**Dimensions

**Body Size: 1" Wide x 6-3/4" Long x 2" Deep

Guide Size: 1" Wide x 1-27/32" Long x 11/16" High x 3/32" Thick

Strike Size: 15/16" Wide x 2-1/4" Long x 1/16" Thick

Rub Plate Size: 1-1/4" Wide x 1-11/16" Long x 3/64" Thick

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) US32 (US32) Bright Stainless Steel (629) US32D (US32D) Satin Stainless Steel (630)

Model: FB51P, FB51P12MD,FB51PUS3, FB51PUS4, FB51PUS10, FB51PUS10B, FB51PUS32, FB51PUS32D, FB51PB3, FB51PB4, FB51PB10, FB51PB10B, FB51PS32, FB51PS32D, FB51P12MDUS3, FB51P12MDUS4, FB51P12MDUS10, FB51P12MDUS10B, FB51P12MDUS32, FB51P12MDUS32D
