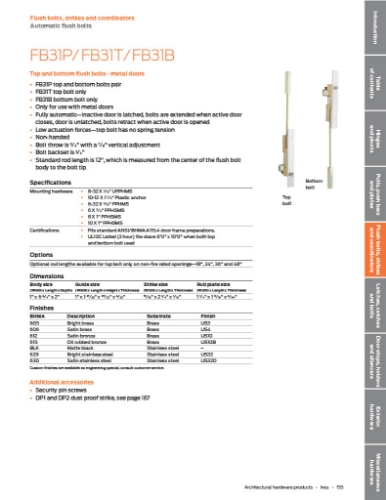

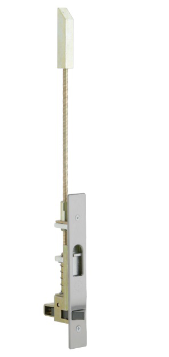

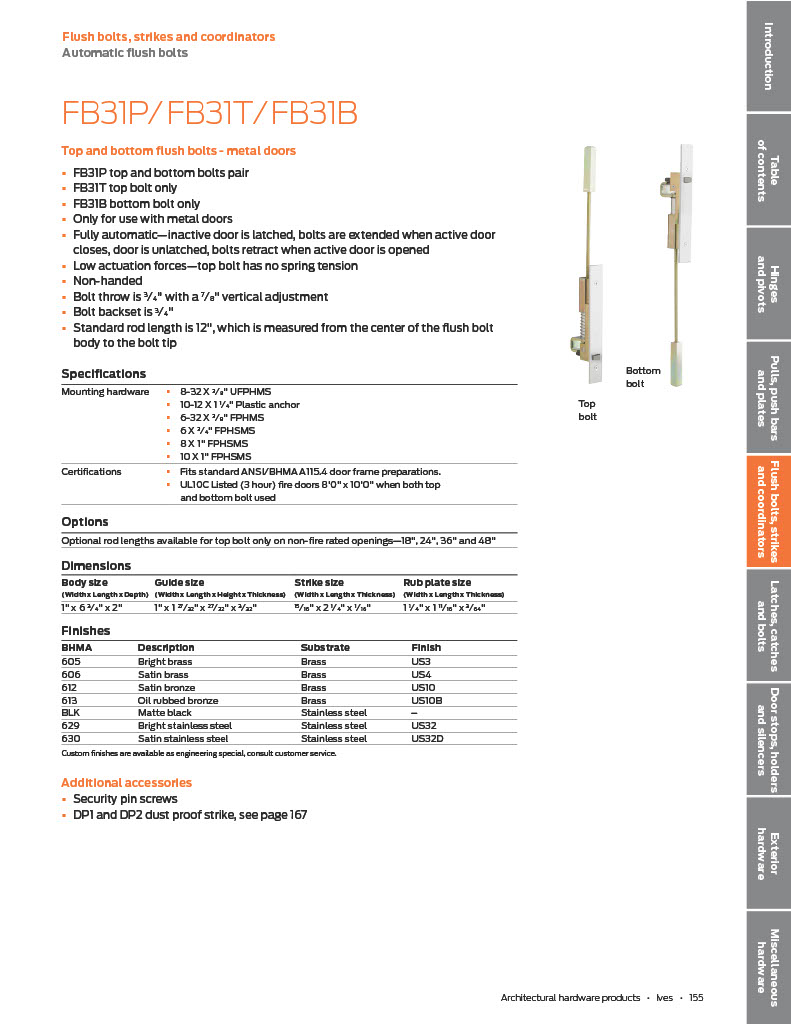

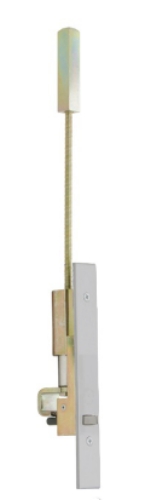

Ives FB31T Automatic Flush Bolt, Metal Doors, Top Bolt Only

Ives FB31TAutomatic Flush Bolt, Metal Doors,Top Bolt Only

Fully Automatic inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened.

Low Actuation Forces Top Bolt Has No Spring Tension.

Fits standard ANSI A115.4 Door Frame Preparations.

Non-handed.

Bolt throw is 3/4" with a 7/8" vertical adjustment.

Bolt backset is 3/4"

Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip. (Optional rod lengths available for top bolt only on non-fire rated openings 18", 24", 36" and 48).

**Dimensions

**Body Size: 1" Wide x 6-3/4" Long x 2" Deep

Guide Size: 1" Wide x 1-27/32" Long x 27/32" High x 3/32" Thick

Strike Size: 15/16" Wide x 2-1/4" Long x 1/16" Thick

Rub Plate Size: 1-1/4" Wide x 1-11/16" Long x 3/64" Thick

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) US32 (US32) Bright Stainless Steel (629) US32D (US32D) Satin Stainless Steel (630)

Model: FB31T, FB31TP12MD,FB31TUS3, FB31TUS4, FB31TUS10, FB31TUS10B, FB31TUS32, FB31TUS32D, FB31T12MDUS3, FB31T12MDUS4, FB31T12MDUS10, FB31T12MDUS10B, FB31T12MDUS32, FB31T12MDUS32D
