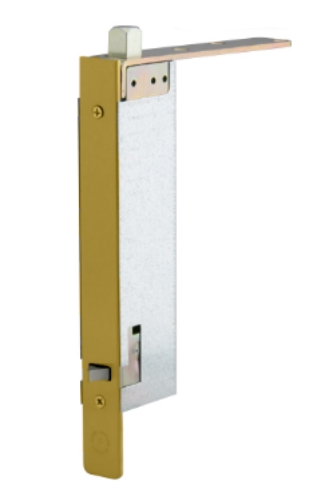

Ives FB41T Automatic Flush Bolt, Wood Doors, Top Bolt Only

Ives FB41TAutomatic Flush Bolt, Wood Doors,Top Bolt Only

Fully Automatic inactive door is latched, bolts are extended when active door closes, door is unlatched bolts retract when active door is opened.

Low Actuation Forces Top Bolt Has No Spring Tension.

Non-handed.

Bolt throw is 3/4" with a 7/8" vertical adjustment.

Bolt backset is 3/4"

**Dimensions

**Body Size: 1" Wide x 8-1/2" Long x 2" Deep

Guide Size: 1" Wide x 6" Long x 1/8" Thick

Strike Size: 15/16" Wide x 2-1/4" Long x 1/16" Thick

Rub Plate Size: 1-1/4" Wide x 1-11/16" Long x 3/64" Thick

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) US32 (US32) Bright Stainless Steel (629) US32D (US32D) Satin Stainless Steel (630)

Model: FB41T, FB41TWD,FB41TUS3, FB41TUS4, FB41TUS10, FB41TUS10B, FB41TUS32, FB41TUS32D, FB41TWDUS3, FB41TWDUS4, FB41TWDUS10, FB41TWDUS10B, FB41TWDUS32, FB41TWDUS32D
