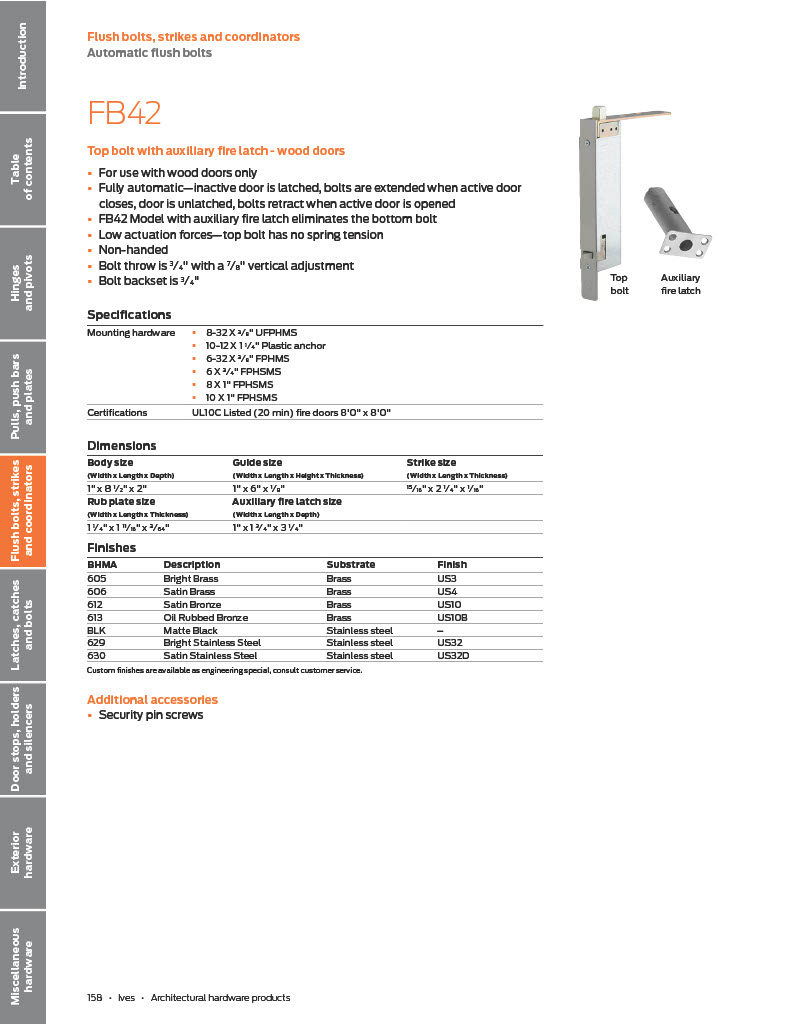

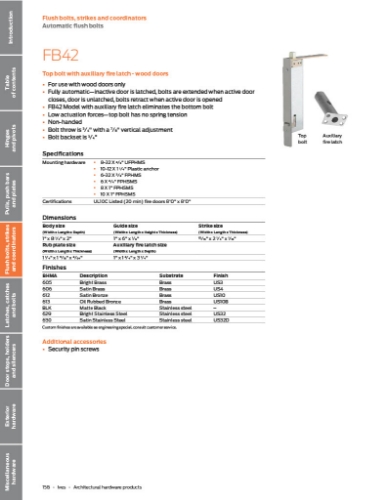

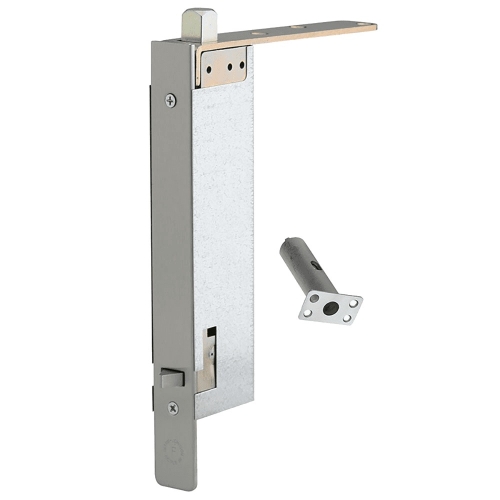

Ives FB42 (WD) Auto Flush Bolt, Top Bolt w/Fire Latch

Ives FB42(WD) Auto Flush Bolt, Top Bolt w/Fire Latch -Wood Doors

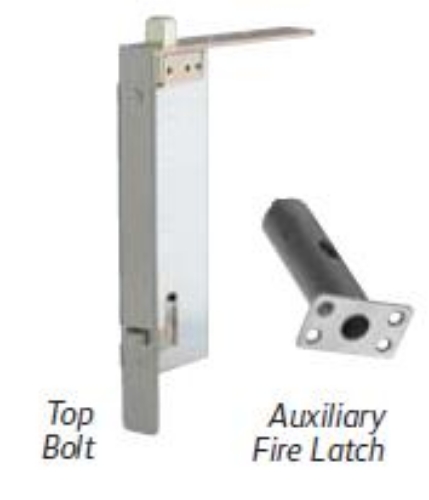

FB42 Model with Auxiliary Fire Latch eliminates the bottom bolt and is UL Listed for Fire Doors.

Fully Automatic inactive door is latched, bolts are extended when active door closes, door is unlatched bolts retract when active door is opened.

Low Actuation Forces Top Bolt Has No Spring Tension.

Non-handed.

Bolt throw is 3/4" with a 7/8" vertical adjustment.

Bolt backset is 3/4"

**Dimensions

**Body Size: 1" Wide x 8-1/2" Long x 2" Deep

Guide Size: 1" Wide x 6" Long x 1/8" Thick

Strike Size: 15/16" Wide x 2-1/4" Long x 1/16" Thick

Rub Plate Size: 1-1/4" Wide x 1-11/16" Long x 3/64" Thick

Auxiliary Fire Latch Size: 1" Wide x 1-3/4" Long x 3-1/4" Deep

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) US32 (US32) Bright Stainless Steel (629) US32D (US32D) Satin Stainless Steel (630)

Model: FB42, FB42WD,FB42US3, FB42US4, FB42US10, FB42US10B, FB42US32, FB42US32D, FB42WDUS3, FB42WDUS4, FB42WDUS10, FB42WDUS10B, FB42WDUS32, FB42WDUS32D
