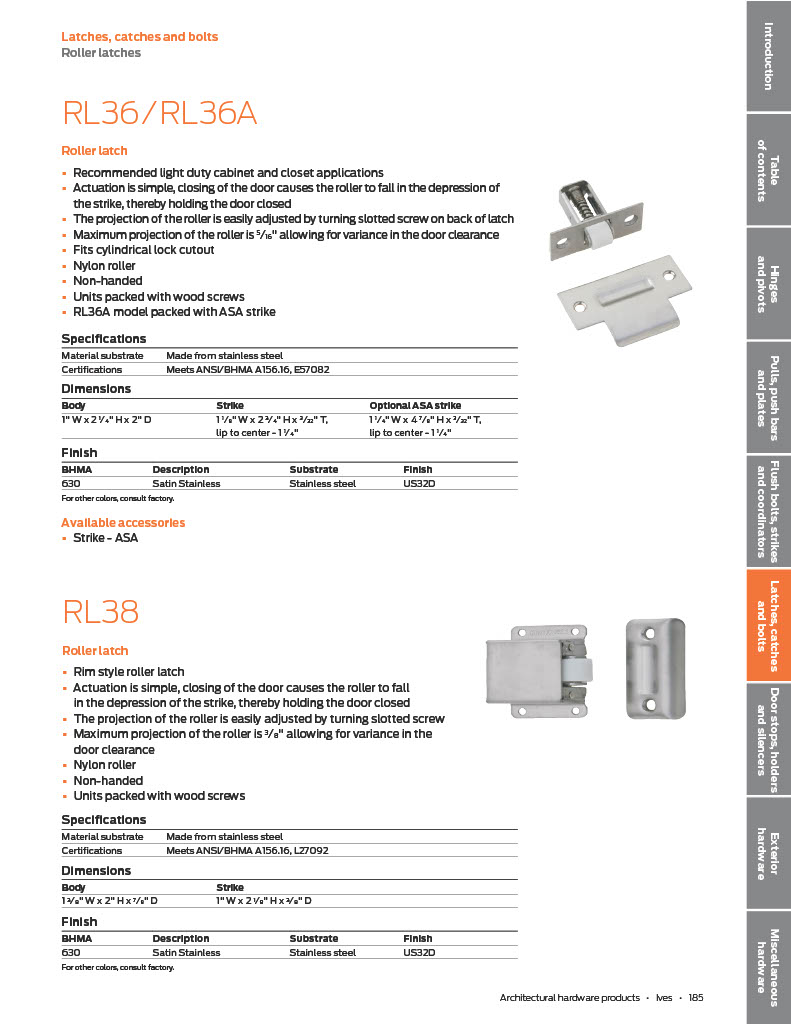

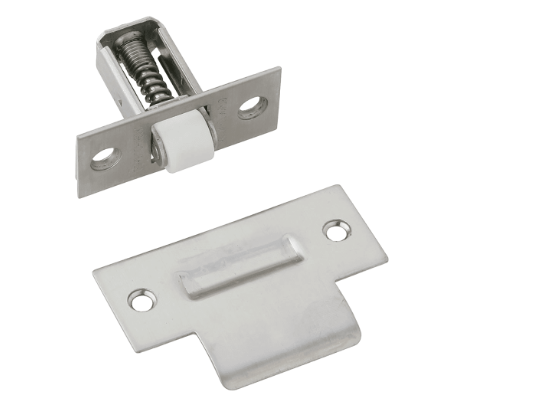

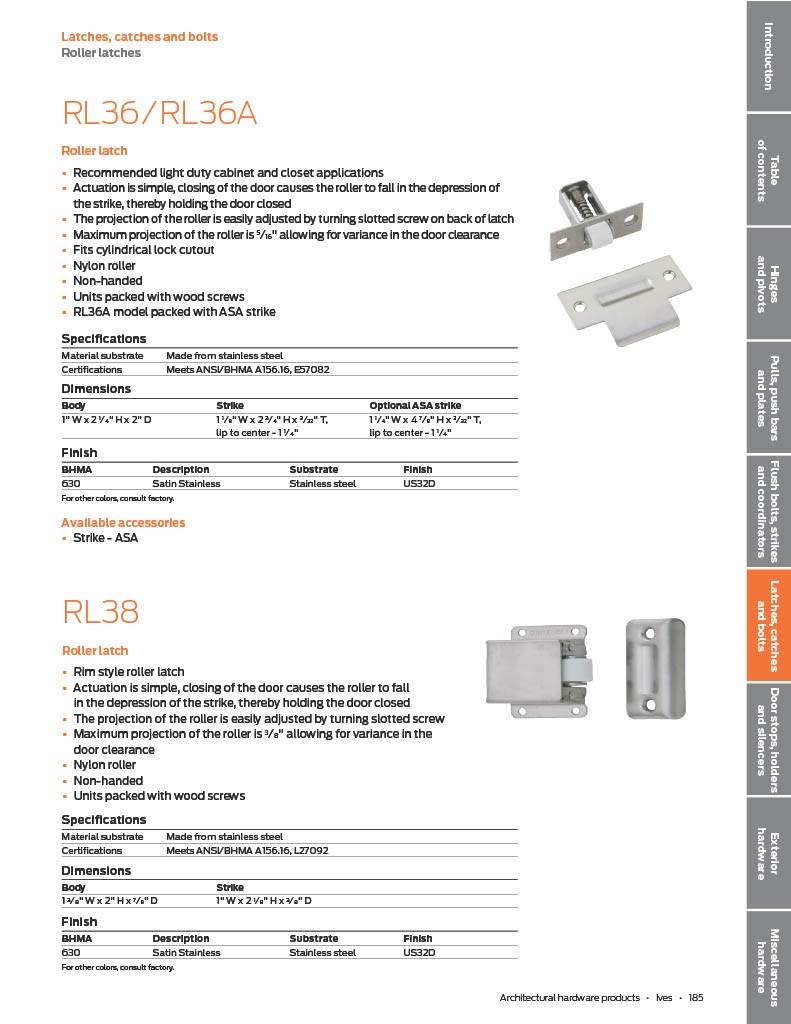

Ives RL36 Roller Latch

Ives RL36 Roller Latch

Finish:*US32D -*Stainless Steel(630)

Actuation is simple, closing of the door causes the roller to fall in the depression of the strike, thereby holding the door closed.

The projection of the roller is easily adjusted by turning slotted screw on back of latch.

Maximum projection of the roller is 5/16" allowing for variance in the door clearance.

Fits cylindrical lock cutout.

Nylon Roller.

Non-handed.

Stainless Steel Construction.

Optional Strike ASA.

**Dimensions

**Body: 1" Wide x 2-1/4" High x 2" Deep

Strike: 1-1/8" Wide x 2-3/4" High x 3/32" Thick, Lip to Center- 1-1/4"

Optional ASA Strike: 1-1/4" Wide x 4-7/8" High x 3/32" Thick, Lip to Center- 1-1/4"

Model:RL36, RL36A, RL36US32D RL36AUS32D
