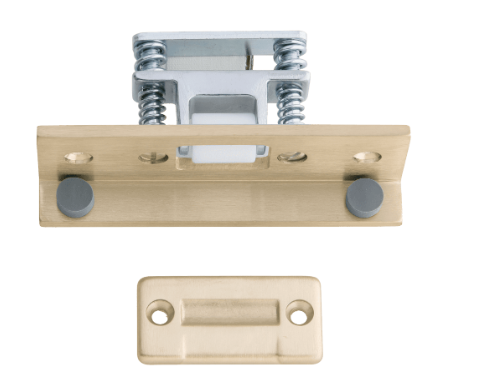

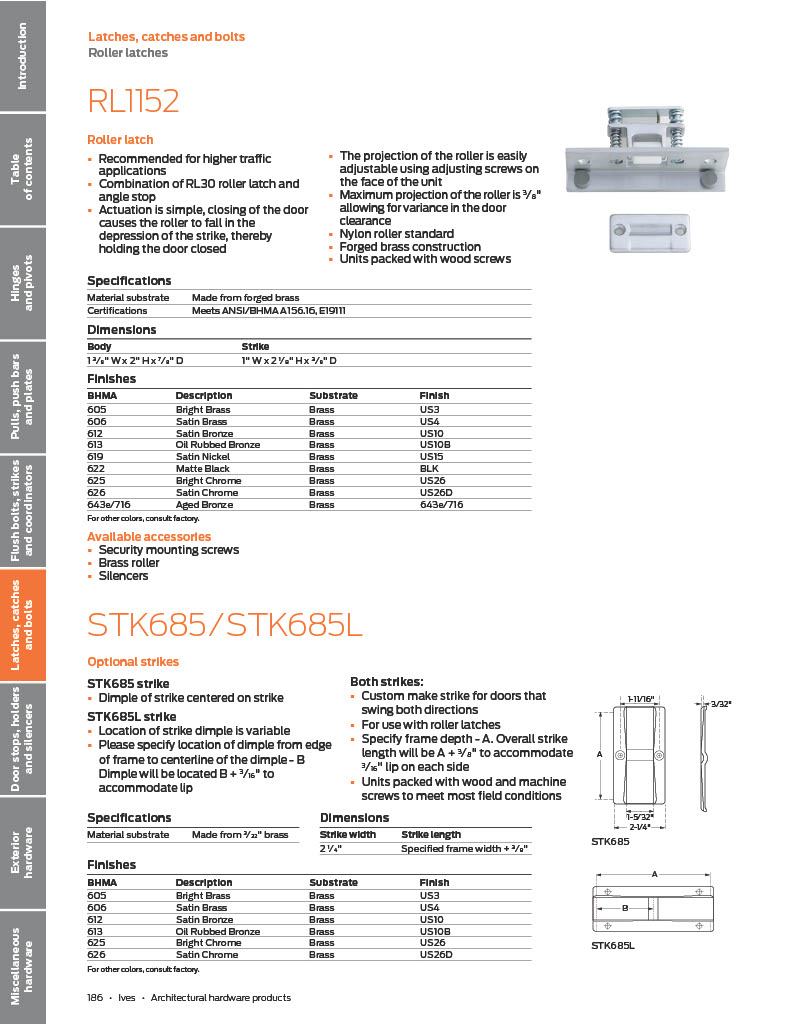

Ives RL1152 Roller Latch

Ives RL1152 Roller Latch

Combination of RL30 Roller Latch and Angle Stop.

Actuation is simple, closing of the door causes the roller to fall in the depression of the strike, thereby holding the door closed.

The projection of the roller is easily adjustable using adjusting screws on the face of the unit.

Maximum projection of the roller is 3/8" allowing for variance in the door clearance.

Nylon Roller Standard.

Forged Brass Construction.

OptionalF Brass Roller, must be ordered separately.

**Dimensions

**Body: 1-1/2" Wide x 4-1/2" High x 1-3/4" Deep with 3/4" Angle

Strike: 1-1/8" Wide x 2-1/4" High x 5/32" Thick

Finish: US3 - Bright Brass (605) US4 - Satin Brass (606) US10 - Satin Bronze (612) US10B - Oil Rubbed Bronze (613) US26 - Bright Chrome (625) US26D - Satin Chrome (626)

Model: RL1152, RL1152US3, RL1152US4, RL1152US10, RL1152US10B, RL1152US26, RL1152US26D
