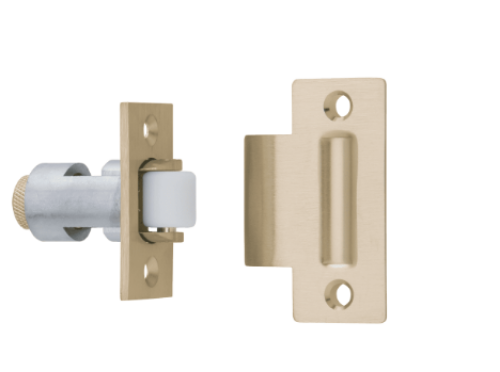

Ives RL32 Roller Latch

Ives RL32 Roller Latch

Actuation is simple, closing of the door causes the roller to fall in the depression of the strike, thereby holding the door closed.

The projection of the roller is easily adjusted by turning knurled knob on back of latch.

Maximum projection of the roller is 1/2" allowing for variance in the door clearance.

Fits heavy-duty cylindrical lock cutout.

Nylon Roller Standard.

Non-handed.

Brass Construction.

Optional Strike ASA.

**Dimensions

**Body: 1-1/8" Wide x 2-1/4" High x 2-1/4" Deep

Strike: 1-1/8" Wide x 2-3/4" High x 3/32" Thick, Lip to Center- 1-1/4"

Optional ASA Strike: 1-1/4" Wide x 4-7/8" High x 3/32" Thick, Lip to Center- 1-1/4"

Finish: US3 - Bright Brass (605) US4 - Satin Brass (606) US10 - Satin Bronze (612) US10B - Oil Rubbed Bronze (613) US26 - Bright Chrome (625) US26D - Satin Chrome (626)

Model: RL32, RL32US3, RL32US4, RL32US10, RL32US10B, RL32US26, RL32US26D
