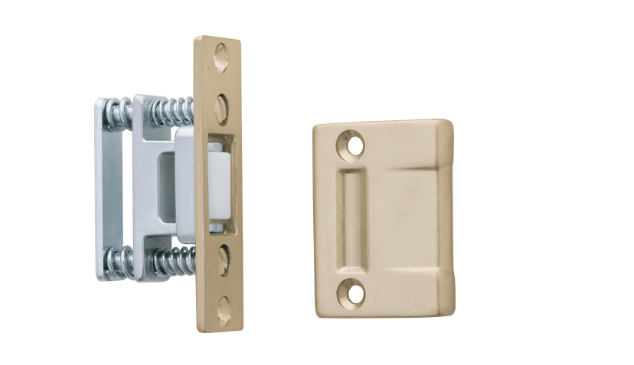

Ives RL30 Roller Latch

Ives RL30 Roller Latch

Actuation is simple, closing of the door causes the roller to fall in the depression of the strike, thereby holding the door closed.

The projection of the roller is easily adjusted using adjusting screws on the face of the unit.

Maximum projection of the roller is 3/8" allowing for variance in the door clearance.

Nylon Roller Standard.

Forged Brass Construction.

Optional Strike ASA.

Optional Brass Roller, must be ordered separately.

**Dimensions

**Body: 1" Wide x 3-3/8" High x 1-11/16" Deep

Strike: 1-11/16" Wide x 2-1/4" High x 5/32" Thick, Lip to Center- 1-5/16"

Optional ASA Strike: 1-1/4" Wide x 4-7/8" High x 3/32" Thick, Lip to Center- 1-1/4"

Finish: US3 - Bright Brass (605) US4 - Satin Brass (606) US10 - Satin Bronze (612) US10B - Oil Rubbed Bronze (613) US26 - Bright Chrome (625) US26D - Satin Chrome (626)

Model: RL30, RL30US3, RL30US4, RL30US10, RL30US10B, RL30US26, RL30US26D
