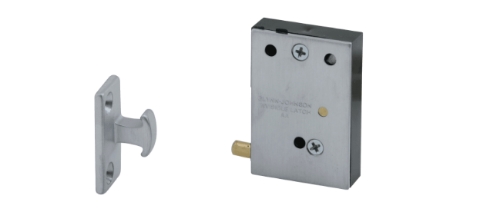

Ives CL11 Invisible Cabinet Latch

Ives CL11 Invisible Latch

Invisible latch is ideal for installations where no visible latch is desired.

Unit can be installed at the top, bottom or side of the door.

Can be mortised into the stop or surface mounted to the stop.

Recommended for use on small panels, cabinet doors or light weight closet doors.

Operation is simple, latching is accomplished by a slight push. To unlatch the door, a harder push releases the door and pushes the door out.

Brass and plastic construction.

Applies 13 pounds to open the door.

Dimensions

Body: 1-1/4" Wide x 1-7/8" High x 7/16" Thick

Strike: 9/16" Wide x 1-5/16" High x 9/16" High

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B26D (US26D) Satin Chrome (626)

Model: CL11B3, CL11B4, CL11B10, CL11B26D, CL11US3, CL11US4, CL11US10, CL11US26D
