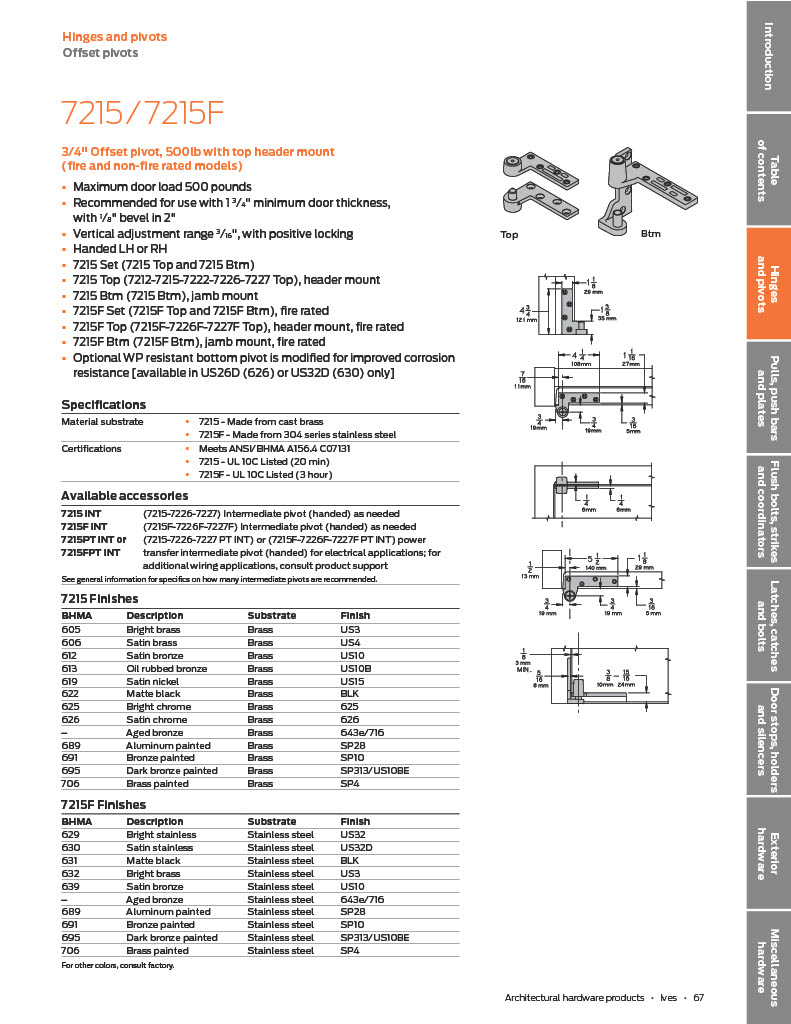

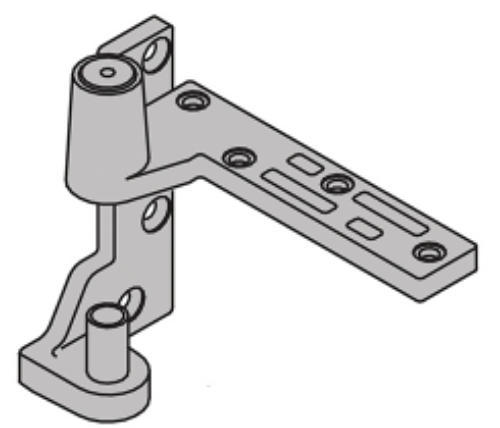

Ives 7215-BTM 3/4" Offset Bottom Pivot

Ives 7215-BTM, 3/4" Offset Bottom Pivot

Handed

Jamb mount

Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"

Maximum door load 500 pounds

Vertical adjustment range 3/16", with positive locking

Model: Ives 7215-BTM, 7215BTM, 7215BTMSP28, 7215BTMSP313, 7215BTMSP28RH, 7215BTMUS3, RH, LH. 7215 BTM SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, US10B - Oil Rubbed Bronze, US26D - Satin Chrome, US3 - Bright Brass, RH, LH. Right or Left hand
